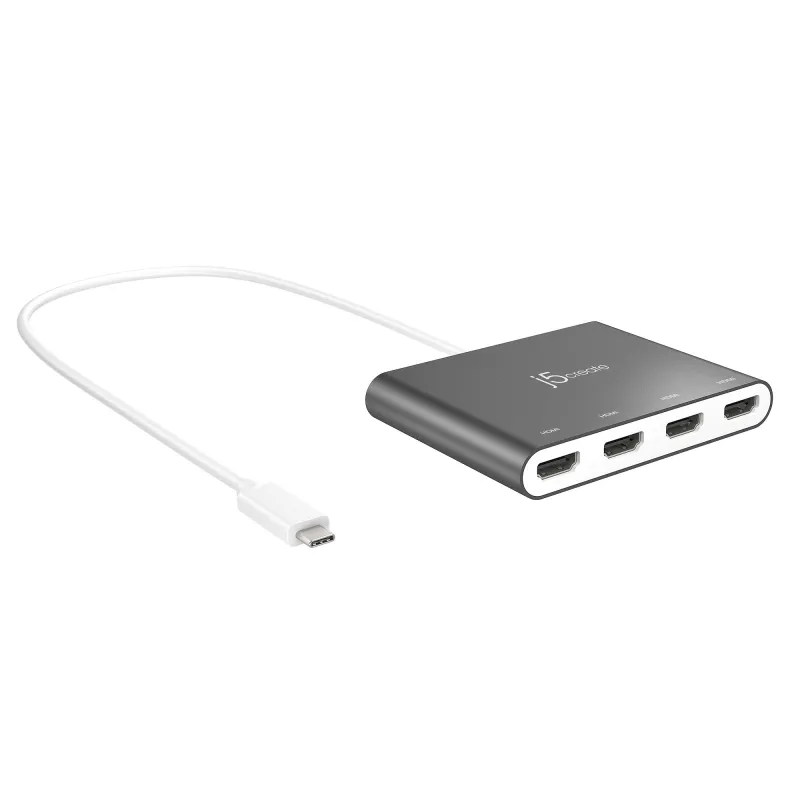

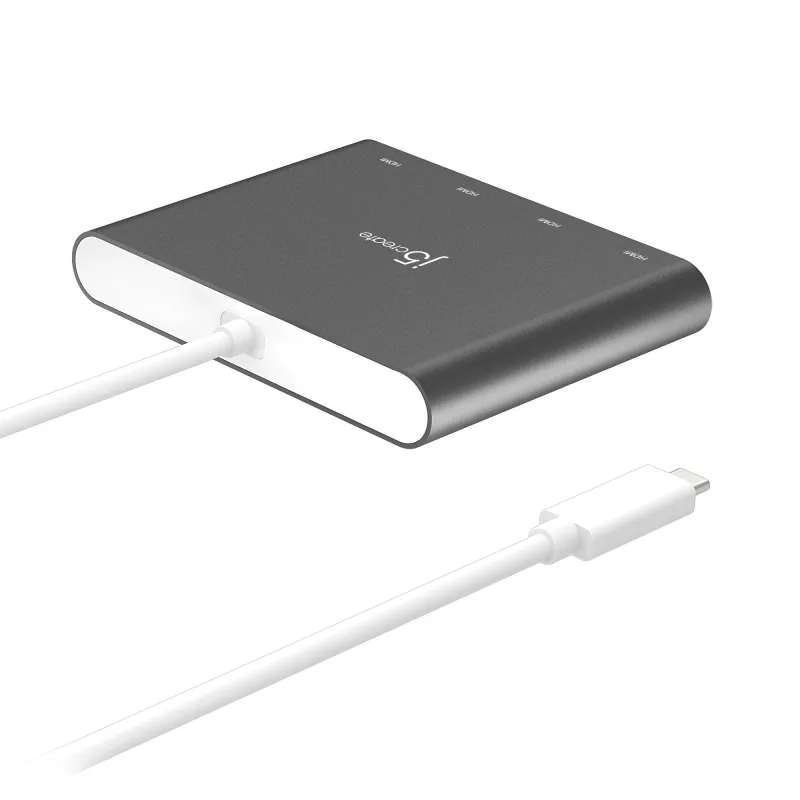

j5create JCA366-N USB-C™ to 4-Port HDMI™ Multi-Monitor Adapter, Silver
- INCREASE PRODUCTIVITY WITH MULTIPLE DISPLAY MODES:
- Multitask with a larger landscape/desktop space. Move and view your large programs across four screens without overlapping windows. Ideal for viewing multiple windows at the same time to enhance productivity for standard business applications.
- FREE APPLICATION – QUICKLY ASSIGN MULTIPLE WINDOWS:
- The Multi-Monitor Assistant application assists with dragging, dropping, zooming in & out, cursor display cycle, cascading windows to the main display and windows expansion cycle on multiple monitors with simple moves (Currently available for Windows® only).
- 1080p HDMI™ RESOLUTION WITH STEREO AUDIO:
- 1920 x 1080 @ 60 Hz, with 1080p Video Playback; Display Rotation: 0°, 90°, 180° & 270°. HDMI™ ports support 48 kHz imbedded audio.
- MINIMIZE SYSTEM RESOURCES:
- Easily add additional displays through the USB-C® to HDMI™ connection without adding an expensive, internal video card that makes installation complicated.
- FAST INSTALLATION:
- Simply install the driver, plug-in the USB-C® and it’s ready to go.
- NO EXTERNAL POWER REQUIRED:
- USB™ powered by the computer, over SuperSpeed USB™ 3.0 / 3.1
The USB-C® to 4-port HDMI™ Multi-Monitor Adapter functions as an external video card for your MacBook® or personal computer. It allows you to add four additional monitors/displays through your USB-C® port. This is the perfect alternative to a costly video card. With the JCA366, you can quickly install the driver with a simple USB-C® plug-in. Afterwards, connect your device to your monitors using HDMI™ cables and you have just created a new visual environment in seconds. With this multi-monitor adapter, you can extend your desktop across multiple displays, clone one screen onto another, and have individual applications displayed on each monitor. You can also enable additional features with the Multi-Monitor Assistant Application for your Windows® devices.
| Performance | |
|---|---|
| Current | 0.9 A |
| Data transfer rate (max) | 5 Gbit/s |
| Extended display mode | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Maximum resolution (HDMI) | 1920 x 1080 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution | 1920 x 1080 pixels |
| HDMI ports quantity | 4 |
| Number of displays supported | 4 |
| DisplayPort output | No |
| HDMI output | Yes |
| DVI output | No |
| USB connector form factor | Straight |
| USB connector gender | Male |
| USB connector type | USB Type-C |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Design | |
|---|---|
| Integrated USB cable | Yes |
| Housing material | Aluminium |
| Product colour | Silver |
| Power | |
|---|---|
| Output voltage | 5 V |
| Power consumption (max) | 4.5 W |
| System requirements | |
|---|---|
| Minimum RAM | 4 GB |
| Minimum processor family | Core i5, Core i7 |
| Linux operating systems supported | No |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10 |
| Weight & dimensions | |
|---|---|
| USB cable length | 0.5 m |
| Weight | 152.5 g |
| Height | 79.5 mm |
| Depth | 16 mm |
| Width | 101.5 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 – 85% |
| Operating relative humidity (H-H) | 0 – 85% |
| Storage temperature (T-T) | -10 – 71 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Packaging data | |
|---|---|
| Package weight | 217.5 g |
| Package height | 22.5 mm |
| Package depth | 125 mm |
| Package width | 193 mm |
| Packaging content | |
|---|---|
| Packaging content | 1 x JCA366 USB-C® to 4-Port HDMI™ Multi-Monitor Adapter, 1 x Quick Installation Guide |
| Manual | Yes |
| Quick installation guide | Yes |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Country of origin | Taiwan |
| Master (outer) case gross weight | 4.86 kg |
| Master (outer) case height | 190 mm |
| Master (outer) case length | 445 mm |
| Master (outer) case width | 226 mm |
| Master (outer) case GTIN (EAN/UPC) | 24712795083938 |
| Products per master (outer) case | 18 pc(s) |
