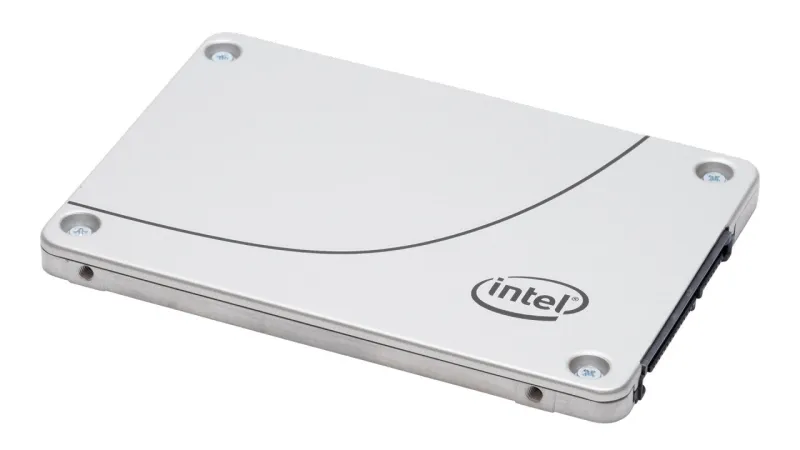

Intel DC S4500 240 GB 2.5″ Serial ATA III 3D TLC
- 240 GB 2.5″ Serial ATA III
- Read speed: 500 MB/s
- Write speed: 190 MB/s
- 3D TLC
- Hardware encryption 256-bit AES
- Component for: Server/workstation
Storage inspired SATA SSD optimized for read-intensive workloads. Switch from legacy HDDs to reduce costs, increase server efficiency, and improve data reliability.
Infrastructure Compatibility
Built for compatibility in legacy infrastructures, this SATA SSD enables easy storage upgrades that minimize the costs associated with modernizing your data center.
Do More Per Server
Based on TLC Intel® 3D NAND Technology, these larger capacity SSDs enable data centers to increase data stored per rack unit. Realize the performance benefits SSDs provide over HDDs, without expanding the server footprint.
Improved Reliability
With 3.2x lower Annualized Failure Rate (AFR) compared to HDDs1, IT departments will spend less time and expense replacing or upgrading storage devices. Intel® SATA SSDs install seamlessly and complete updates without reset, reducing downtime.
New SATA Controller
A new SATA-designed controller delivers the convergence of scalable capacity and manageability. Innovative firmware completes updates without server reset and reduces downtime.
| Features | |
|---|---|
| SSD ARK ID | 120526 |
| SSD usage tag | Data center |
| Mean time between failures (MTBF) | 2000000 h |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| SSD temperature monitoring | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| End-to-End Data Protection | Yes |
| Write latency | 36 µs |
| Read latency | 36 µs |
| Random write (100% span) | 16000 IOPS |
| Random read (100% span) | 69000 IOPS |
| Write speed | 190 MB/s |
| Read speed | 500 MB/s |
| Data transfer rate | 6 Gbit/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| NAND flash type | TLC (Triple Level Cell) |
| Memory type | 3D TLC |
| Interface | Serial ATA III |
| SSD form factor | 2.5″ |
| SSD capacity | 240 GB |
| Power | |
|---|---|
| Power consumption (idle) | 0.9 W |
| Power consumption (average) | 2.6 W |
| Brand-specific features | |
|---|---|
| Intel® Smart Response Technology | No |
| Intel High Endurance Technology (HET) | No |
| Intel® Rapid Start Technology | No |
| Weight & dimensions | |
|---|---|
| Height | 7 mm |
| Operational conditions | |
|---|---|
| Non-operating shock | 1000 G |
| Operating shock | 1000 G |
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Operating temperature (T-T) | 0 – 70 °C |
| Other features | |
|---|---|
| Product codename | Youngsville |
| Product series | Intel® SSD DC S4500 Series |
| Product family | Data center SSD |
| Status | End of Life |
| Product colour | Silver |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
