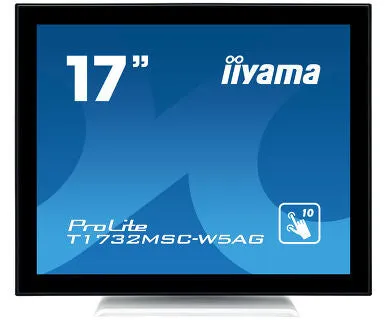

iiyama ProLite T1732MSC-W5AG computer monitor 43.2 cm (17″) 1280 x 1024 pixels LED Touchscreen White
- Touchscreen 43.2 cm (17″) LED
- 1280 x 1024 pixels 5:4
- 75 Hz 5 ms 1000:1
- E 12 kWh 20 W
The ProLite T1732MSC-W5AG 17″ multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the TouchScreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the TouchScreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours. Available in black and white.
IP
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
| Display |
| Display diagonal (metric) |
43 cm |
| Vertical scan range |
56 – 75 Hz |
| Horizontal scan range |
31.4 – 80 kHz |
| Pixel pitch |
0.264 x 0.264 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
160° |
| Viewing angle, horizontal |
170° |
| Maximum refresh rate |
75 Hz |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
5:4 |
| Screen shape |
Flat |
| Response time |
5 ms |
| Display brightness |
215 cd/m² |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
5:4 |
| Display resolution |
1280 x 1024 pixels |
| Display diagonal |
43.2 cm (17″) |
| Performance |
| Number of simultaneous touchpoints (Windows 7) |
10 |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Megapixel (approx.) |
1.3 MP |
| RMS rated power |
2 W |
| Built-in speaker(s) |
Yes |
| Design |
| Product colour |
White |
| Ports & interfaces |
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| Ergonomics |
| Plug and Play |
Yes |
| Tilt angle range |
-5 – 90° |
| Tilt adjustment |
Yes |
| Cable lock slot |
Yes |
| Wall mountable |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
369776 |
| Energy efficiency scale |
A to G |
| Power supply type |
AC |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (standby) |
2 W |
| Power consumption (typical) |
20 W |
| Energy consumption (SDR) per 1000 hours |
12 kWh |
| Energy efficiency class (SDR) |
E |
| Weight & dimensions |
| Height (without stand) |
320 mm |
| Depth (without stand) |
54.5 mm |
| Width (without stand) |
387 mm |
| Weight (with stand) |
5.6 kg |
| General |
| Product family |
ProLite |
| Other features |
| Certification |
CB, CE, TÜV-Bauart, CU, cULus, VCCI |
| International Protection (IP) code |
IP54 |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
