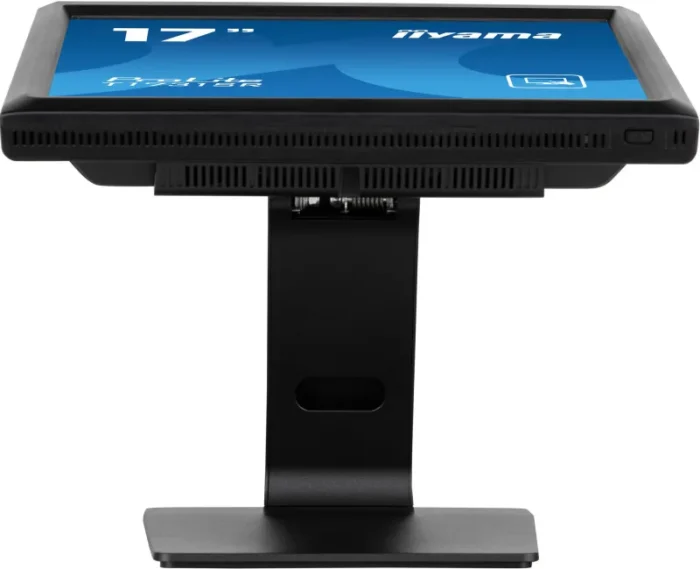

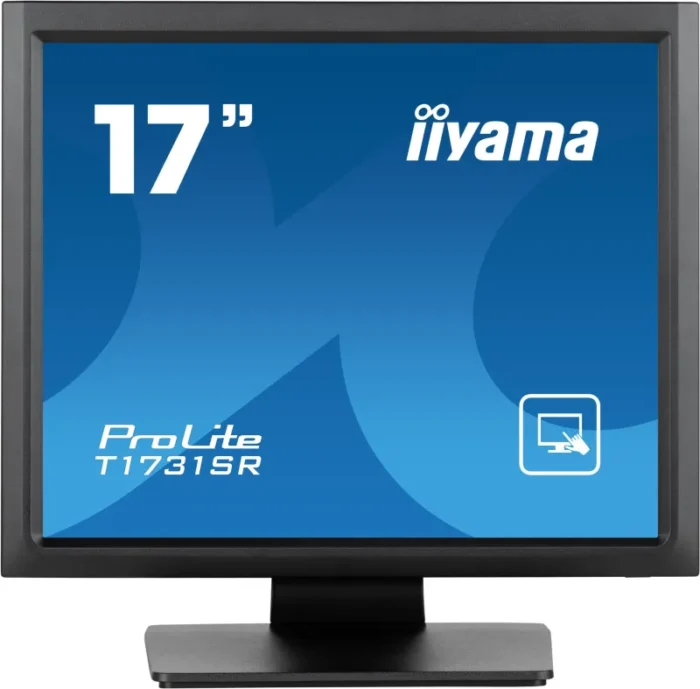

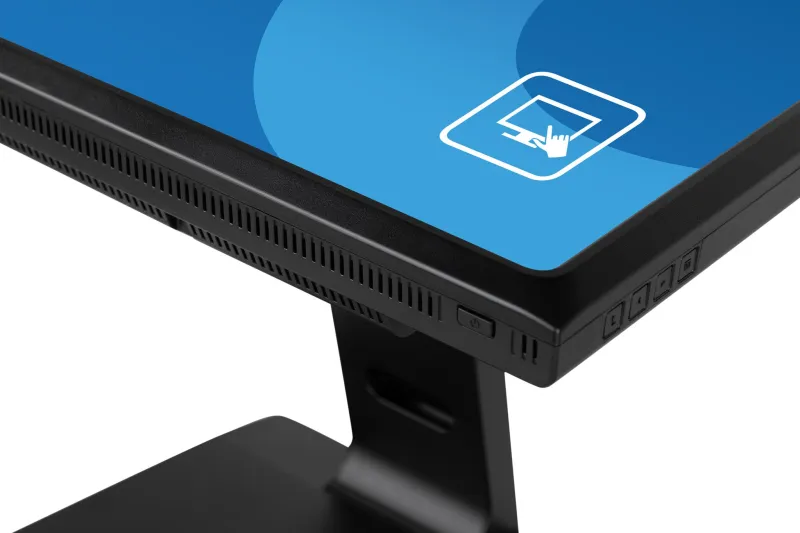

iiyama ProLite T1731SR-B1S computer monitor 43.2 cm (17″) 1280 x 1024 pixels SXGA LCD Touchscreen Black
- Speakers
- Touch technology – Resistive
- IP54
- VESA
The T1731SR-B1S is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The T1731SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.
| Display | |
|---|---|
| Display diagonal (metric) | 43 cm |
| Viewable size, vertical | 27 cm |
| Viewable size, horizontal | 33.8 cm |
| Horizontal scan range | 31.5 – 80 kHz |
| Pixel pitch | 0.264 x 0.264 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 160° |
| Viewing angle, horizontal | 170° |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Response time | 5 ms |
| Display brightness (typical) | 250 cd/m² |
| Touch technology | Single-touch |
| Touchscreen technology | Resistive |
| Panel type | TN |
| HD type | SXGA |
| Touchscreen | Yes |
| Display technology | LCD |
| Native aspect ratio | 5:4 |
| Display resolution | 1280 x 1024 pixels |
| Display diagonal | 43.2 cm (17″) |
| Multimedia | |
|---|---|
| Built-in camera | No |
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Detachable stand | No |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Ergonomics | |
|---|---|
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 – 90° |
| Tilt adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 1552074 |
| Energy efficiency scale | A to G |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 20 W |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| Energy efficiency class (SDR) | E |
| Weight & dimensions | |
|---|---|
| Weight (with stand) | 5.4 kg |
| Height (with stand) | 378 mm |
| Depth (with stand) | 239.5 mm |
| Width (with stand) | 387 mm |
| Packaging content | |
|---|---|
| Stand included | Yes |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| International Protection (IP) code | IP54 |
