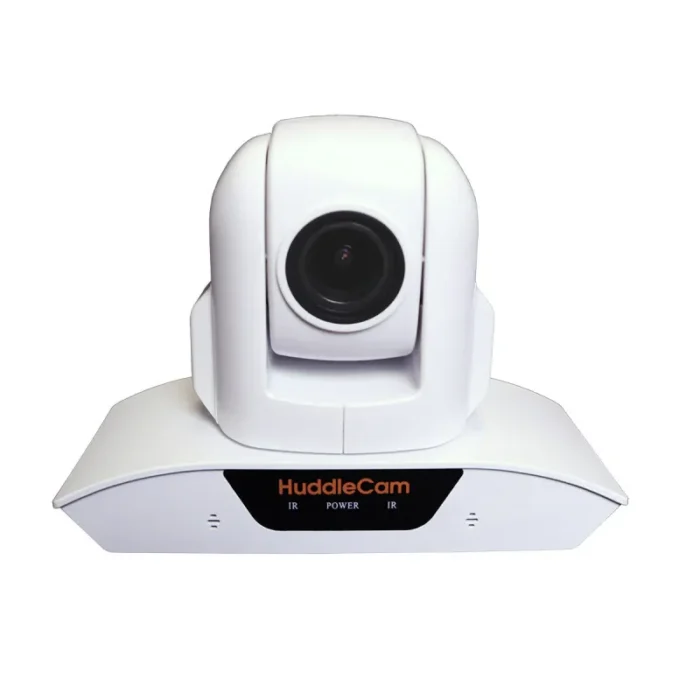

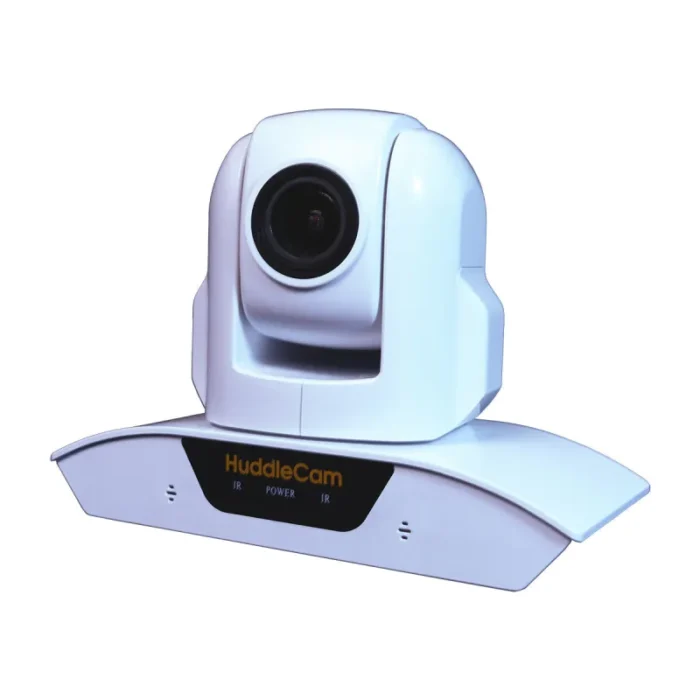

HuddleCamHD 10XA 2.1 MP White 1920 x 1080 pixels 30 fps CMOS 25.4 / 3 mm (1 / 3″)
- High Definition
- Wide Angle Lens
- Power Supply Included
- Plug and Play
- Universal Compatibility
Our customer favorite 10X camera with a built-in dual microphone array providing an easy USB 2.0 connection to any PC or Mac computer for web video conferencing simplicity.
Be seen in 1080p
Crystal clear High Definition 1080p video with lossless 10X optical zoom letting you get up close to see and interact with your team.
Easy Set Up
With HuddleCamHD you are getting the easiest solution possible. Simply plug your camera into your computers USB port and start your video conference.
Dual Microphone Array
Powerful microphone array built into the camera for clear audio pick up.
Field of View
The HuddleCamHD 10XA has a wide 57 degree field of view so you can capture your entire room and still have the ability to zoom in.
Use your favorite software
Works with virtually every online video conferencing software with no need for additional drivers or proprietary connections.
Camera Presets
Access camera presets with the included IR remote control. Easily control your cameras pan tilt and zoom along with other fine tuning setting from your remote control.
Robust Installation Options
Easily invert the camera image for installation on the ceiling. Use the included Tri-Pod mount adapter to fasten the camera to a standard tri-pod or simply mount on the wall.

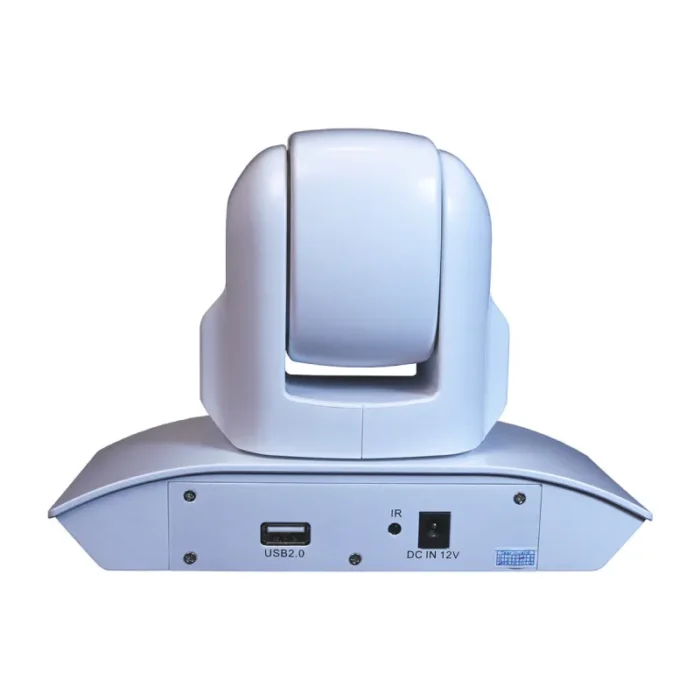

Plug-and-Play USB Connectivity
Easily connect your camera to a PC, Mac, or ChromeBox without the need for additional software.
| Camera | |
|---|---|
| Number of camera presets | 64 |
| Aperture range (F-F) | 2 – 2.8 |
| Horizontal field of view (wide) | 57° |
| Horizontal field of view (tele) | 7° |
| Focal length range | 4.9 – 49 mm |
| Optical zoom | 10x |
| Optical sensor size | 25.4 / 3 mm (1 / 3″) |
| Sensor type | CMOS |
| Megapixel (approx.) | 2.1 MP |
| Video | |
|---|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Resolution at capture speed | 1920×1080@30fps |
| HD type | Full HD |
| Maximum frame rate | 30 fps |
| Maximum video resolution | 1920 x 1080 pixels |
| Design | |
|---|---|
| Pan range | 0 – 340° |
| Tilt angle range | -90 – 30° |
| Mounting type | Stand |
| Product colour | White |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB 2.0 ports quantity | 1 |
| Power | |
|---|---|
| Input current | 2 A |
| DC input voltage | 12 V |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 45 °C |
| Audio | |
|---|---|
| Noise reduction | Yes |
| Built-in microphone | Yes |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| USB cable length | 3 m |
| Cables included | USB |
| Remote control included | Yes |
| Power supply included | Yes |
| Performance | |
|---|---|
| Certification | ISO9001: 2008 |
| Plug and Play | Yes |
| Remote control function | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 640 g |
| Height | 132 mm |
| Depth | 78 mm |
| Width | 180 mm |
