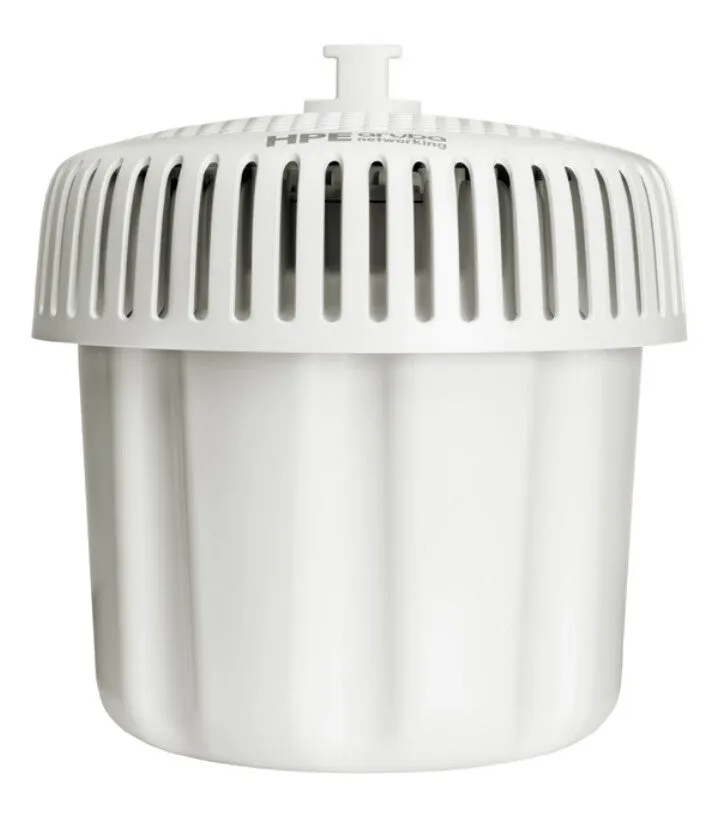

HPE Aruba Networking AP-675EX 3900 Mbit/s White Power over Ethernet (PoE)
- Ideal for outdoor and environmentally challenging locations
- Tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz for 3.9 Gbps peak aggregate data rate
- Industrial IoT-ready with highpower Bluetooth and Zigbee radios
- Fast wired connectivity with 2.5GbE and 1GbE SFP ports
- Standard Power (SP) device operation and self-locating with embedded GPS receiver
- Class 1 Division 2 and ATEX Zone 2 certified AP-670EX models
HPE Aruba Networking 670 Series Outdoor Access Points
HPE Aruba Networking 670 Series Outdoor Access Points are high-performance Wi-Fi 6E APs ideal for outdoor and environmentally challenging locations.
Wi-Fi 6E for extreme outdoor conditions
Provide secure and reliable connectivity in large outdoor open areas, such as stadiums and public venues with weatherproof high-performance Wi-Fi 6E APs.
Wi-Fi 6E performance
Improve Wi-Fi performance using the 6 GHz band for faster speeds and wider channels. Tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz delivers 3.9 Gbps maximum aggregate data rate supports high-bandwidth, low-latency applications such as high-definition video.
Ruggedized for outdoors
Withstand extreme high and low temperatures, persistent moisture, and precipitation. Fully sealed to keep out airborne contaminants and electrical interfaces including industrial-strength surge protection. Available with choice of internal antenna (omni, directional, or point-to-point) to optimize wireless coverage.
IoT ready
Deploy and manage enterprise and industrial IoT, including asset tracking services, security solutions, and sensors, with integrated high-power Bluetooth and 802.15.4 radios for Zigbee support. Advanced IoT Coexistence (AIC) helps Wi-Fi, Bluetooth and Zigbee radios operate at maximum capacity without interference.
Location aware
Protect incumbent outdoor services via self-locating embedded GPS receivers that operate as Standard Power (SP) devices, requiring an Automated Frequency Coordination service (AFC).
Efficient and secure
Extend the 802.11ax standard to the 6GHz band, including efficiency and security enhancements such as orthogonal frequency-division multiple access (OFDMA), multi-user MIMO, enhanced open, and WPA3 with Wi-Fi 6E. The 670 Series APs also offers client optimization, automated radio frequency management, and intelligent power monitoring.
| Features | |
|---|---|
| BeamForming | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Bluetooth version | 4.2 + 5.0 |
| Bluetooth | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3bt |
| Maximum data transfer rate (6 GHz) | 2400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate | 3900 Mbit/s |
| 5 GHz | Yes |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| Ports & interfaces | |
|---|---|
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power consumption (max) | 45.5 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Reset button | Yes |
| International Protection (IP) code | IP66, IP67 |
| Product colour | White |
| Placement | Pole, Wall |
| Antenna | |
|---|---|
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| General | |
|---|---|
| Product family | Aruba Networking |
| Weight & dimensions | |
|---|---|
| Weight | 4 kg |
| Height | 312 mm |
| Depth | 288 mm |
| Width | 290 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 100% |
| Operating altitude | 0 – 3000 m |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 5 – 100% |
