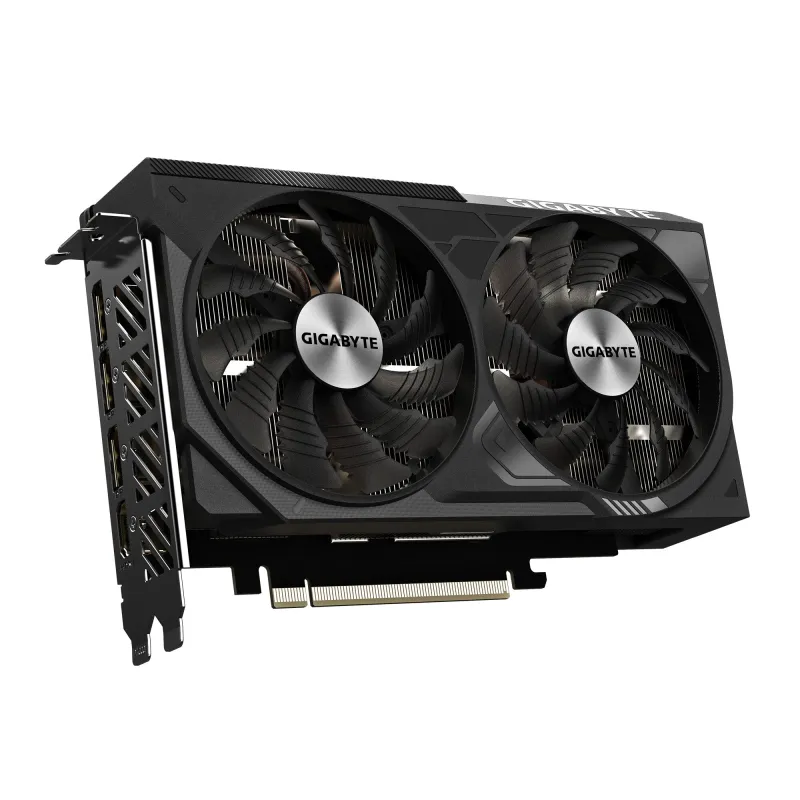

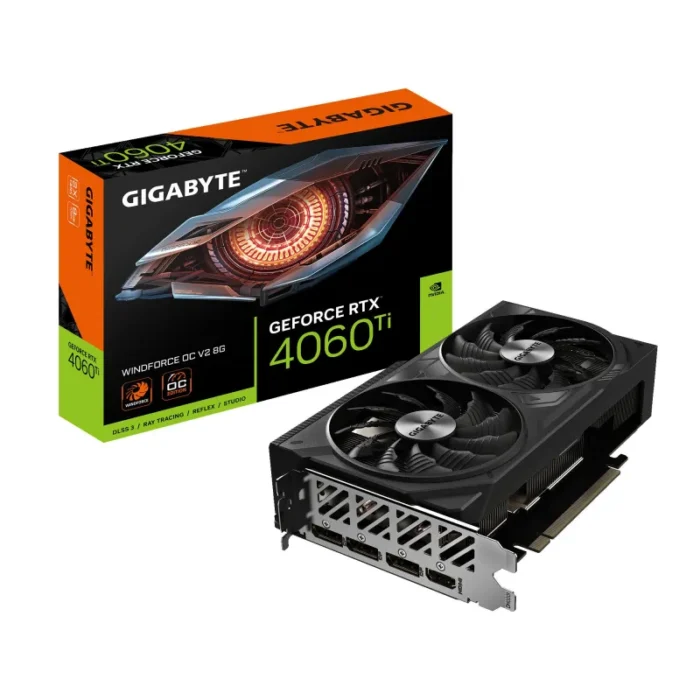

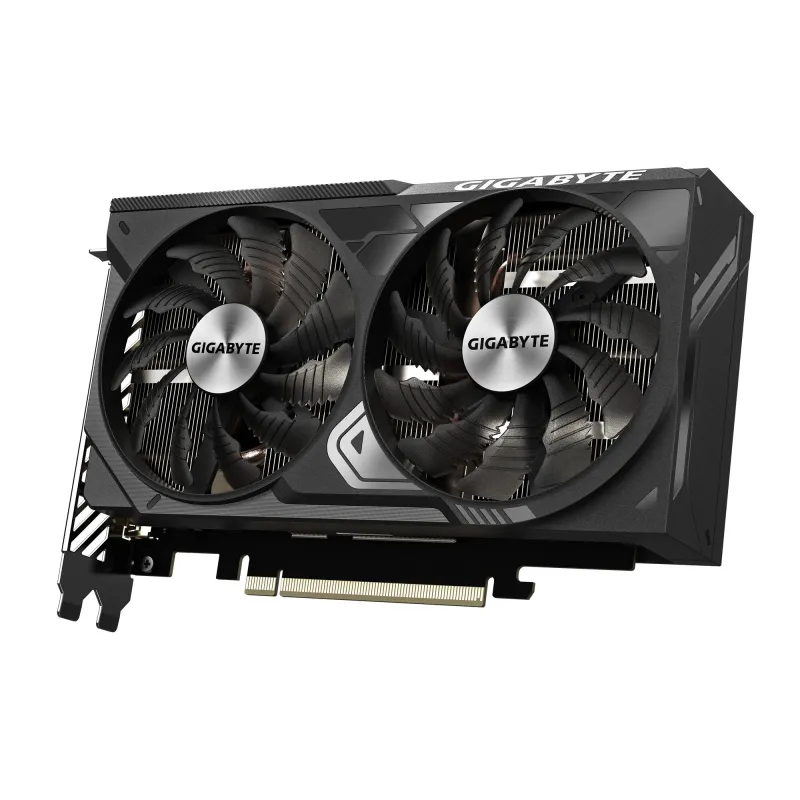

GIGABYTE GeForce RTX 4060 Ti WINDFORCE OC V2 8G Graphics Card – 8GB GDDR6, 128bit, PCI-E 4.0, 2550MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DLSS 3, GV-N406TWF2OCV2-8GD
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX 4060 Ti (8GB)
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Protection back plate
Unlock unparalleled gaming prowess with GIGABYTE’s NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor frequency | 2550 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 18 Gbit/s |
| Number of pipelines | 3 |
| Memory clock speed | 18000 MHz |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| Warranty period | 3 year(s) |
| Overclocked (OC) edition | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | No |
| SFF ready | No |
| Number of slots | 2 |
| Number of fans | 2 fan(s) |
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 165 W |
| Minimum system power supply | 500 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
|---|---|
| Height | 122 mm |
| Depth | 48 mm |
| Length | 201 mm |
| Weight | 690 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.02 kg |
| Package height | 65 mm |
| Package depth | 295 mm |
| Package width | 210.5 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
