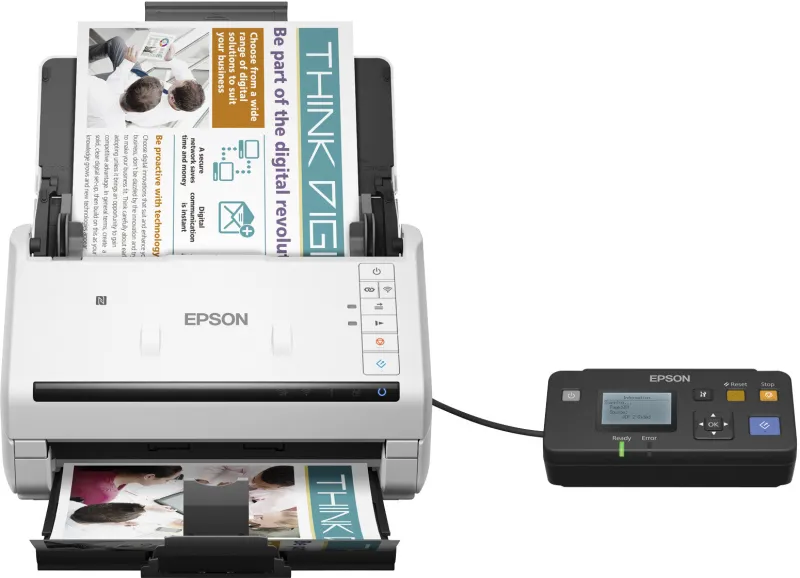

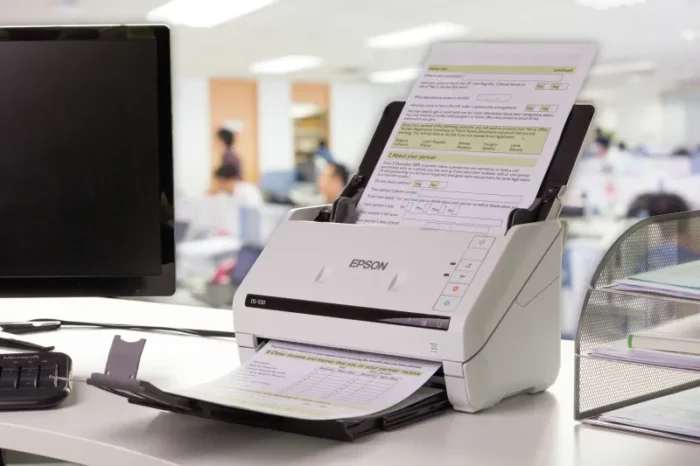

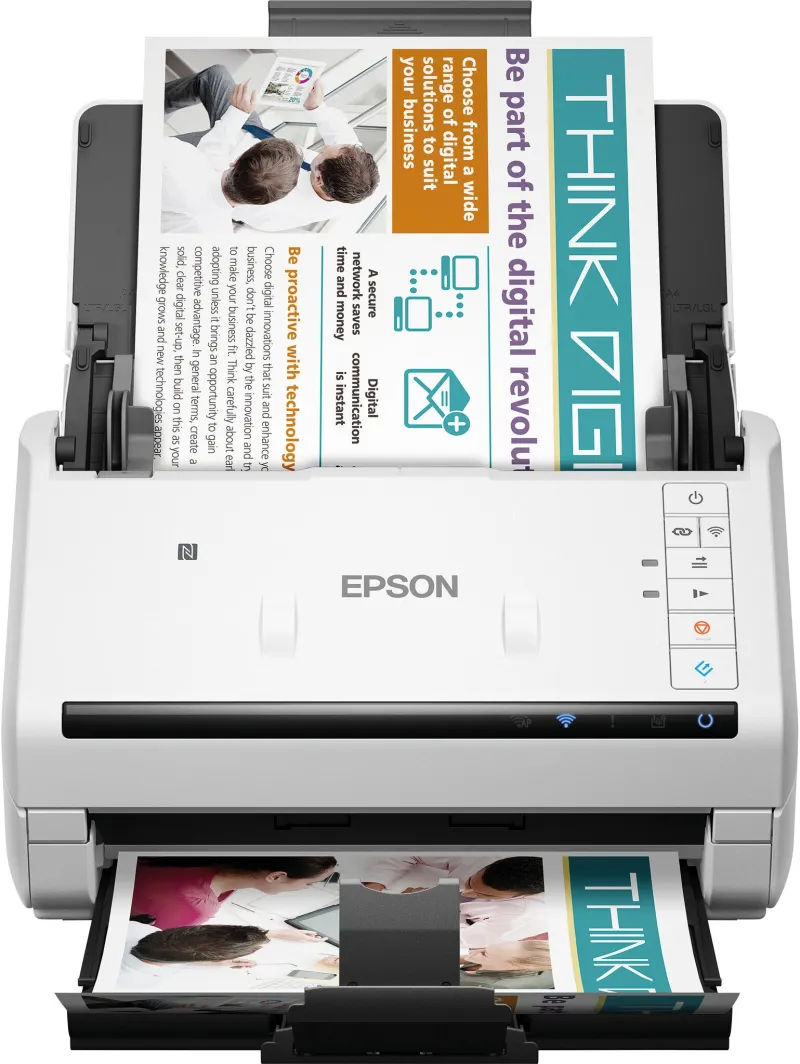

Epson WorkForce DS-570W Sheet-fed scanner 600 x 600 DPI A4 White
- Wireless scanning: Scan documents easily to mobile, tablet and Wi-Fi-enabled work stations
- An industry first with Slow Mode1: Scan crumpled, long or fragile documents without increasing file sizes
- Active Separation Roller System: Prevents tedious double feeds ensuring every piece of paper gets scanned
- Auto Scan Mode: Quickly process physical documents in manageable amounts
- Optional Network Interface: Easy sharing between users with push scan and pre-defined job profiles
Wireless business scanner
The wireless sheetfed document scanning choice, revolutionising workflows with smart features for capturing a wide range of documents.
WorkForce DS-570W
With powerful media handling and innovative smart features to ensure a high level of data integrity, the wireless WorkForce DS-570W is geared towards highly-efficient and simple integration into an organisation’s workflow. A 50-page ADF, fast scan speeds of up to 35ppm/70ipm, along with Wi-Fi , NFC and USB 3.0 connectivity, enable you to rapidly connect, capture, edit, store and share business documents.
Intelligent features improve efficiency, accuracy and data reliability
With an industry-first slow mode1 for scanning crumpled or fragile documents, the ability to scan challenging media has never been easier. The Active Separation Roller System prevents tedious document double feeds and the Double Feed Detection Skip (DFDS) means you can scan difficult media like envelopes or documents with post-it notes. Auto Scan Mode enables the processing of a vast number of documents as one file.
Highly versatile
Single-pass double-sided scanning ensures rapid document processing, while it’s possible to scan a versatile array of media such as paper as thin as 27gsm, or thick card at 413gsm. The instantly-recognised A3 carrier sheet automatically stitches larger documents back together digitally.
Flexible connectivity
Scan documents easily to mobile, tablet and Wi-Fi-enabled work stations with its wireless capability. Built-in NFC enables instant Wi-Fi connectivity. It has high-speed USB 3.0 with TWAIN and WIA drivers for enhanced compatibility with Document Management Systems.
Image enhancement and document management software
Epson Scan 2.0 software makes it easy to edit images with features such as de-skew and auto rotate, while Document Capture Pro3 is the easy to use solution for capturing and storing electronic documents at the touch of a button.
Scanning | |
---|---|
ADF scan speed (colour, A4) | 35 ppm |
ADF scan speed (b/w, A4) | 35 ppm |
Output colour depth | 24 bit |
Input colour depth | 48 bit |
Duplex scanning | Yes |
Colour scanning | Yes |
Optical scanning resolution | 600 x 600 DPI |
Maximum scan size | 215.9 x 6096 mm |
Design | |
---|---|
Display | LCD |
Product colour | White |
Built-in display | No |
Scanner type | Sheet-fed scanner |
Performance | |
---|---|
Scan drivers | ISIS, TWAIN, WIA |
Scan to | E-mail, FTP |
Daily duty cycle (max) | 4000 pages |
Scan file formats | PDF, TIFF |
Light source | ReadyScan LED |
Sensor type | CIS |
Input capacity | |
---|---|
Auto document feeder (ADF) input capacity | 50 sheets |
Paper handling | |
---|---|
Maximum scan area (ADF) | 215.9 x 6.096 mm |
Minimum scan area (ADF) | 50.8 x 50.8 mm |
Auto Document Feeder (ADF) media weight | 27 – 413 g/m² |
Legal | Yes |
Letter | Yes |
ISO B-series sizes (B0…B9) | B5, B6 |
ISO A-series sizes (A0…A9) | A4, A5, A6 |
Scanning media types supported | Business Card, Plastic Card, Post Card(JPN), Thin paper |
Maximum ISO A-series paper size | A4 |
Ports & interfaces | |
---|---|
Optional connectivity | Ethernet |
USB version | 3.2 Gen 1 (3.1 Gen 1) |
USB port | Yes |
Network | |
---|---|
Supported network protocols | TCP/IP, DHCP, DNS, SNMP, SLP |
Ethernet LAN | Yes |
Wi-Fi | Yes |
Power | |
---|---|
Power supply type | AC |
Weight & dimensions | |
---|---|
Weight | 3.7 kg |
Height | 175 mm |
Depth | 169 mm |
Width | 296 mm |
Packaging data | |
---|---|
Package weight | 4.723 g |
Package height | 250 mm |
Package depth | 366 mm |
Package width | 290 mm |
Quantity per pack | 1 pc(s) |
Packaging content | |
---|---|
Cables included | AC, USB |
General | |
---|---|
Product family | WorkForce |
System requirements | |
---|---|
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 R2 |
Mac operating systems supported | Yes |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 15 – 85% |
Operating relative humidity (H-H) | 15 – 80% |
Storage temperature (T-T) | -20 – 60 °C |
Operating temperature (T-T) | 5 – 35 °C |
Logistics data | |
---|---|
Country of origin | Indonesia |
