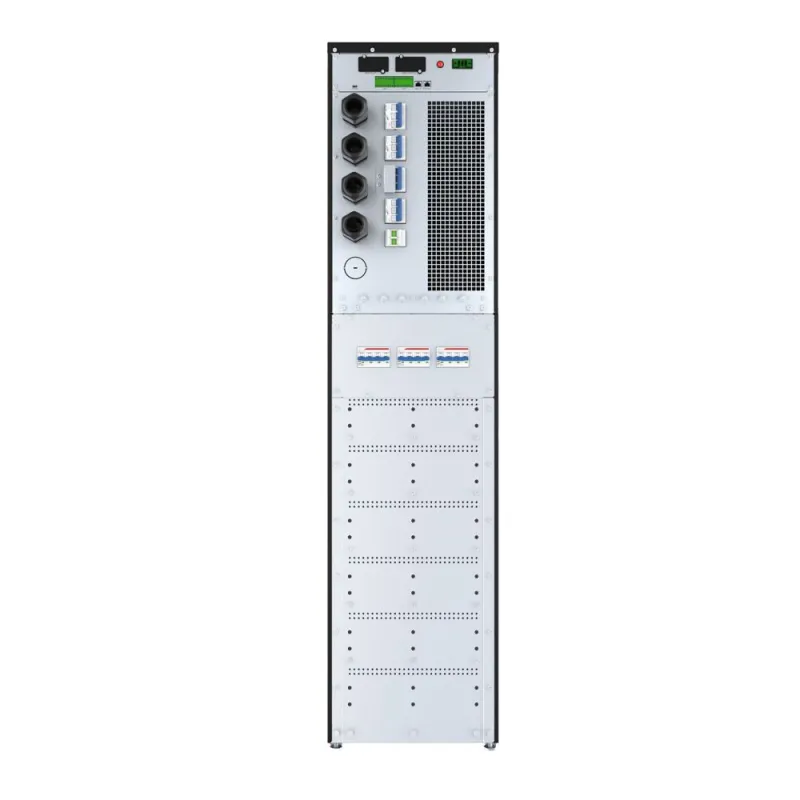

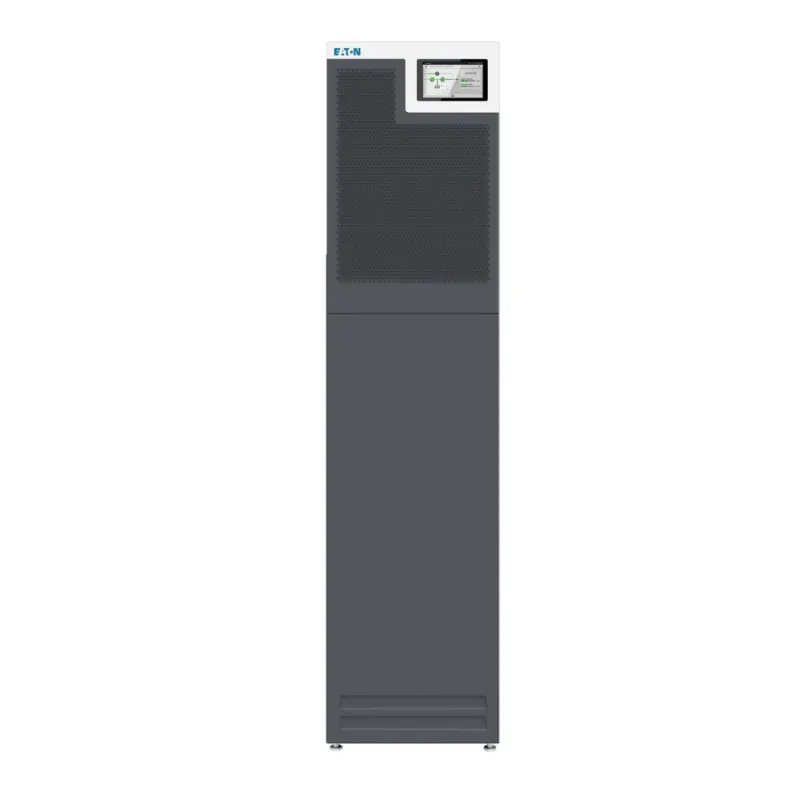

Eaton 93T30KMBSBI uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 30000 W
- Double-conversion (Online)
- 30 kVA 30000 W
- 9 Ah
- Tower Black
The rapid adoption of the cloud, constant evolution of IT technologies, increased focus on environmental footprint and sophistication of mission – critical applications are demanding even more efficient, resilient and safe power protection solutions.
The new level of efficiency offered by the Eaton 93T UPS minimizes total cost of ownership while the safety and resiliency, both in infrastructure and IT layers, maximize availability and ensure business continuity
| Features |
| Audible alarm(s) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Output power factor |
1 |
| Efficiency (ECO mode) |
99% |
| Number of output phases |
3 |
| Number of input phases |
3 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
415 V |
| Output operation voltage (min) |
380 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
415 V |
| Input operation voltage (min) |
380 V |
| Output power |
30000 W |
| Output power capacity |
30 kVA |
| UPS topology |
Double-conversion (Online) |
| Battery |
| Typical backup time at half load |
19 min |
| Number of batteries included |
2 pc(s) |
| Battery capacity |
9 Ah |
| Design |
| Control type |
Touch |
| Product colour |
Black |
| Form factor |
Tower |
| Certificates |
| Certification |
IEC/EN 62040-2IEC/EN 62040-1EN 62040-3Manufactured in a plant certified to ISO 9001 and ISO 14001 management system standards |
| Compliance certificates |
RoHS, CB, CE |
| Packaging content |
| Quick installation guide |
Yes |
| Weight & dimensions |
| Weight |
324.5 kg |
| Height |
1328 mm |
| Depth |
740 mm |
| Width |
380 mm |
