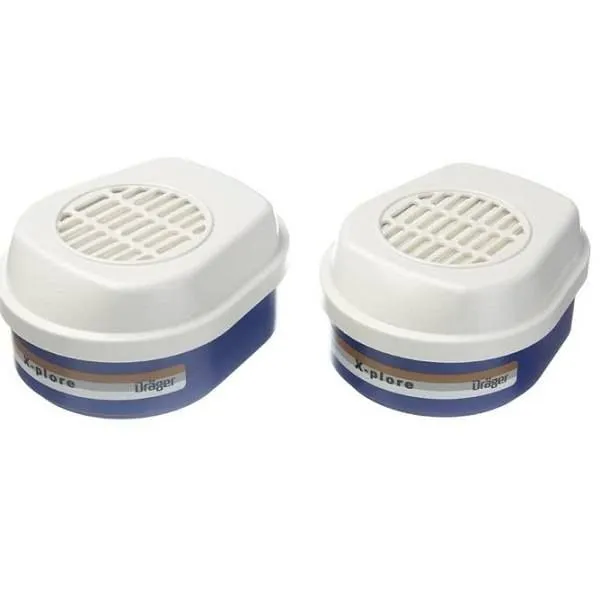

Dräger X-plore® Bayonet A1-B1-E1-K1-Hg-P3 Filters (Twin Pack)
The Dräger X-plore® Bayonet A1-B1-E1-K1-Hg-P3 Filters are engineered for comprehensive respiratory protection in various demanding environments. With an innovative design, these filters minimize breathing resistance and ensure a wide, unobstructed field of vision. Compatible with Dräger X-plore® 3300 Half Face Mask and 5500 Full Face Mask, they offer reliable protection against organic and inorganic gases, acidic gases, ammonia, mercury vapors, and particulates. Ideal for industries such as chemical handling, healthcare, construction, and pest control fumigation requiring robust respiratory defense.
Specifications
Key Features:
- Low breathing resistance for enhanced comfort.
- Side-mounted bayonet connection for a better field of vision.
- Compatible with Dräger X-plore® 3300 and 5500 respirators.
- Certified protection against multiple hazards.
Filter Color Coding Table:
| Filter Type | Protects Against | Color Code |
|---|---|---|
| A1 | Organic gases and vapors (boiling point > 65°C) | Brown |
| B1 | Inorganic gases and vapors | Grey |
| E1 | Acidic gases and vapors | Yellow |
| K1 | Ammonia and derivatives | Green |
| Hg | Mercury vapors | Red |
| P3 | Toxic particulates, including fine dust and aerosols | White |
Combination Filter A1-B1-E1-K1-Hg-P3 Specifications:
| Parameter | Details |
|---|---|
| Protection Level | A1-B1-E1-K1-Hg-P3 |
| Weight | Approx. 100g each |
| Resistance | Tested for low breathing resistance |
| Certifications | EN 14387:2004+A1:2008 compliant |
| Material Composition | High-efficiency filter media for extended use |
Documents
- Dräger X-plore® Bayonet Filters Info Sheet (pdf)
