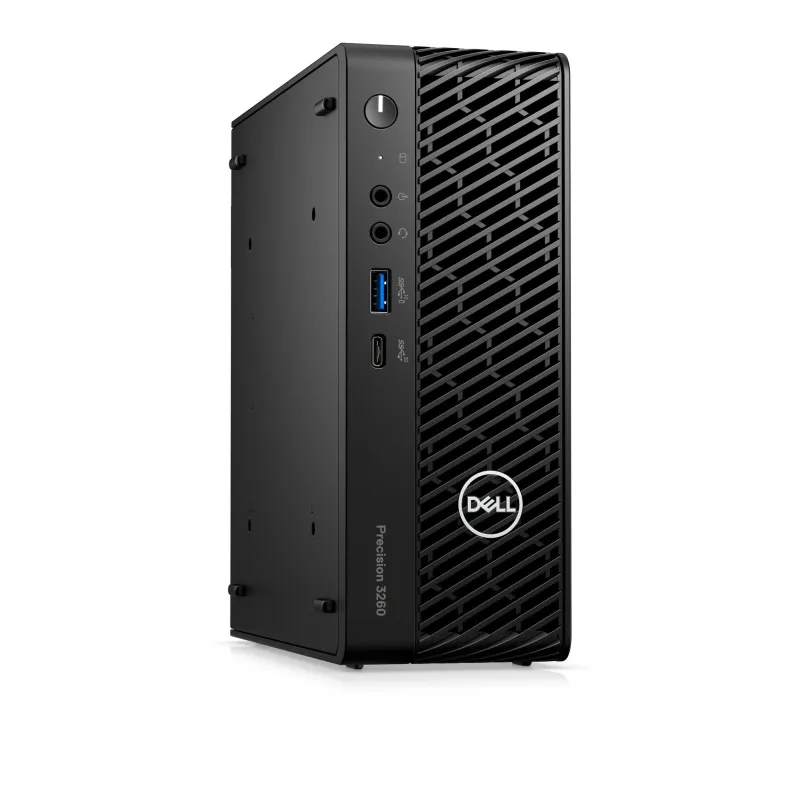

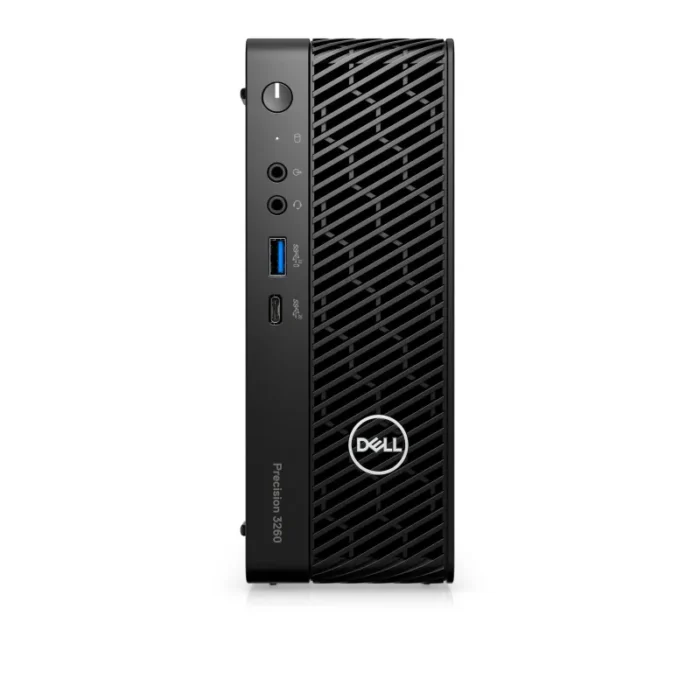

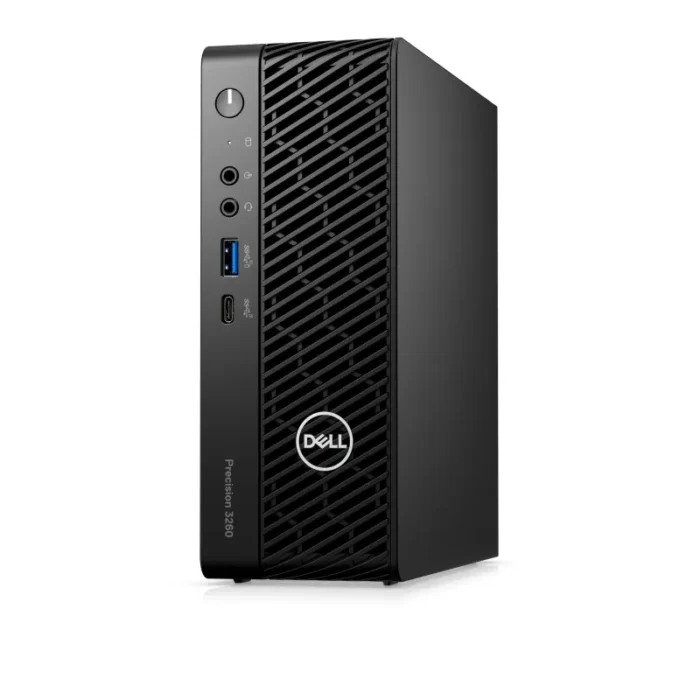

DELL Precision 3260 Intel® Core™ i7 i7-13700 16 GB DDR5-SDRAM 512 GB SSD NVIDIA T1000 Windows 11 Pro CFF Workstation Black
- Windows 11 Pro 64-bit
- Intel Core i7-13700 (30MB Cache)
- NVIDIA T1000 (4GB GDDR6)
- 16GB DDR5-SDRAM (1 x 16) & 512GB SSD
Small without sacrifice
A powerful, yet affordable workstation in a Compact Form Factor.
| Processor |
| Processor base power |
65 W |
| Maximum turbo power |
219 W |
| Number of processors installed |
1 |
| Processor cache type |
Smart Cache |
| Processor cache |
30 MB |
| Efficient-core base frequency |
1.5 GHz |
| Performance-core base frequency |
2.1 GHz |
| Efficient-core Max Turbo Frequency |
4.1 GHz |
| Performance-core Max Turbo Frequency |
5.1 GHz |
| Efficient cores |
8 |
| Performance cores |
8 |
| Processor boost frequency |
5.2 GHz |
| Processor threads |
24 |
| Processor cores |
16 |
| Processor model |
i7-13700 |
| Processor generation |
13th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Memory data transfer rate |
5600 MT/s |
| Non-ECC |
Yes |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
16 GB |
| Storage |
| SSD performance class |
40 |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
| Graphics card Mini DisplayPort ports quantity |
4 |
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Number of discrete graphics cards |
1 |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
NVIDIA T1000 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
Yes |
| Discrete graphics card |
Yes |
| Network |
| Wi-Fi |
No |
| LAN controller |
Intel® I219-LM |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Number of SATA III connectors |
1 |
| DC-in jack |
Yes |
| Combo headphone/mic port |
Yes |
| Headphone outputs |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4a |
| DisplayPorts quantity |
3 |
| PowerShare |
Yes |
| Number of USB ports with PowerShare support |
1 |
| USB 3.2 Gen 2×2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Design |
| Intel® vPro™ Platform Eligibility |
Yes |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Placement supported |
Horizontal/Vertical |
| VESA mounting |
Yes |
| Volume |
2.3 L |
| Chassis type |
CFF |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Audio chip |
Realtek ALC3246-CG |
| Motherboard chipset |
Intel W680 |
| Market positioning |
Business |
| Product type |
Workstation |
| Software |
| Trial software |
Activate Your Microsoft 365 For A 30 Day Trial |
| Operating system language |
German, Dutch, English, French, Italian |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
| Power supply input frequency |
50 – 60 Hz |
| Power supply input voltage |
100 – 240 V |
| Power supply |
240 W |
| Operational conditions |
| Non-operating shock |
160 G |
| Operating shock |
110 G |
| Non-operating vibration |
1.3 G |
| Operating vibration |
0.66 G |
| Non-operating altitude |
-15.2 – 10668 m |
| Operating altitude |
-15.2 – 3048 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
0 – 35 °C |
| Sustainability |
| Sustainability certificates |
TCO |
| Doesn’t contain |
PVC/BFR |
| Weight & dimensions |
| Weight |
2.13 kg |
| Height |
190 mm |
| Depth |
178 mm |
| Width |
71.8 mm |
| Packaging content |
| Cables included |
AC |
| Keyboard included on selected markets |
Dell Multimedia Keyboard-KB216 – UK (QWERTY) – Black |
| Mouse included on selected markets |
Dell Optical Mouse-MS116 – Black |
| Display included |
No |
| General |
| Product family |
Precision |
| Product series |
3000 |
| Carbon footprint |
| Total carbon footprint (kg of CO2e) |
360 |
| Carbon emissions, manufacturing (kg of CO2e) |
216 |
| Carbon emissions, logistics (kg of CO2e) |
8 |
| Carbon emissions, end-of-life (kg of CO2e) |
2 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
226 |
| Total carbon emissions, standard deviation (kg of CO2e) |
99 |
| Carbon emissions, energy usage (kg of CO2e) |
134 |
| PAIA version |
1.3.1, 2021 |
