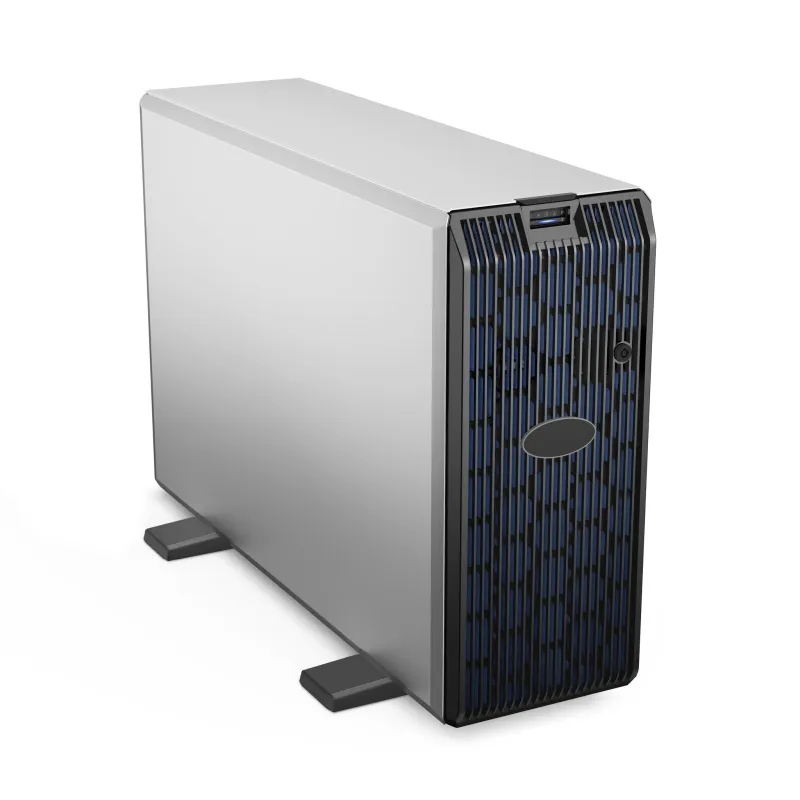

DELL PowerEdge T550 server 480 GB Tower Intel Xeon Silver 4309Y 2.8 GHz 64 GB DDR4-SDRAM 1100 W
- No OS
- Intel Xeon Silver 4309Y (12MB Cache, 2.8GHz)
- 64GB DDR4-SDRAM (2 x 32) & 480GB SSD
- iDRAC9, Enterprise 15G
Balances expandability and performance
Flexible two-socket tower server for enterprise workloads outside of the traditional data center.
| Processor |
| Maximum internal memory supported by processor |
32 GB |
| Number of processors installed |
1 |
| Processor cache |
12 MB |
| Processor boost frequency |
3.6 GHz |
| Processor frequency |
2.8 GHz |
| Processor model |
4309Y |
| Processor family |
Intel Xeon Silver |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
64 GB |
| Memory data transfer rate |
3200 MT/s |
| Memory slots |
16x DIMM |
| Memory layout (slots x size) |
2 x 32 GB |
| Memory ranking |
2 |
| Buffered memory type |
Registered (buffered) |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
64 GB |
| Storage |
| Supported storage drive interfaces |
SAS, Serial ATA |
| Optical drive type |
No |
| Hot-Plug support |
Yes |
| Supported RAID controllers |
PERC H755 |
| RAID support |
Yes |
| SSD size |
2.5″ |
| SSD interface |
SATA III |
| SSD capacity |
480 GB |
| Number of SSDs installed |
1 |
| Supported HDD sizes |
3.5″ |
| Number of HDDs supported |
8 |
| Total storage capacity |
480 GB |
| Network |
| Ethernet LAN |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet interface type |
Gigabit Ethernet |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| Design |
| Bezel |
Yes |
| Product colour |
Black |
| Chassis type |
Tower |
| Performance |
| Remote administration |
iDRAC9, Enterprise 15G |
| Software |
| Compatible operating systems |
Canonical Ubuntu Server LTS● Citrix HypervisorMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXi |
| Operating system installed |
No |
| Power |
| Power cable current |
10 A |
| Power cable connector 1 |
C13 coupler |
| Power cable length |
2 m |
| Number of redundant power supplies installed |
1 |
| Number of redundant power supplies supported |
2 |
| Power supply |
1100 W |
| Redundant power supply (RPS) support |
Yes |
| Operational conditions |
| Non-operating altitude |
0 – 12000 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
5 – 95% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
10 – 35 °C |
| General |
| Product family |
PowerEdge |
| Carbon footprint |
| Total carbon footprint (kg of CO2e) |
9090 |
| Total carbon emissions, standard deviation (kg of CO2e) |
4620 |
| Carbon emissions, manufacturing (kg of CO2e) |
1095 |
| Carbon emissions, logistics (kg of CO2e) |
565 |
| Carbon emissions, energy usage (kg of CO2e) |
7390 |
| Carbon emissions, end-of-life (kg of CO2e) |
47 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
1707 |
| PAIA version |
1.3.2, 2022 |
| Weight & dimensions |
| Depth |
680.5 mm |
| Height |
459 mm |
| Width |
200 mm |
