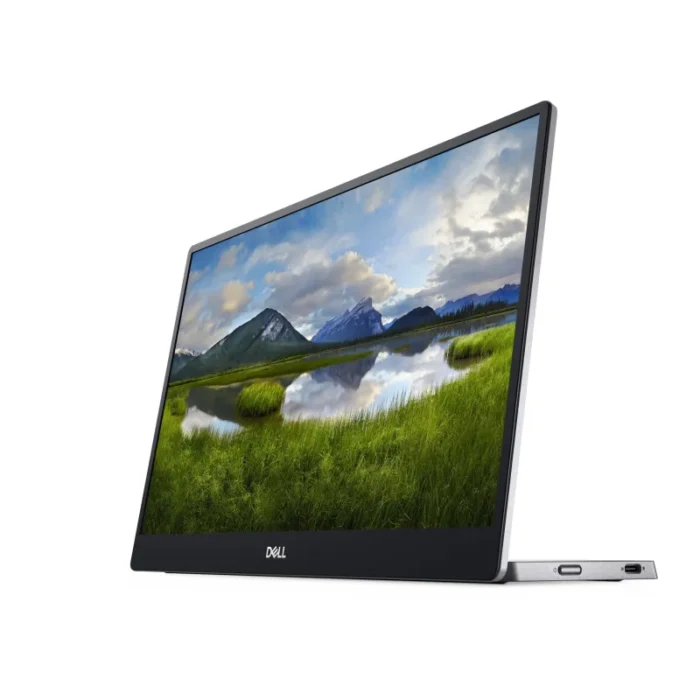

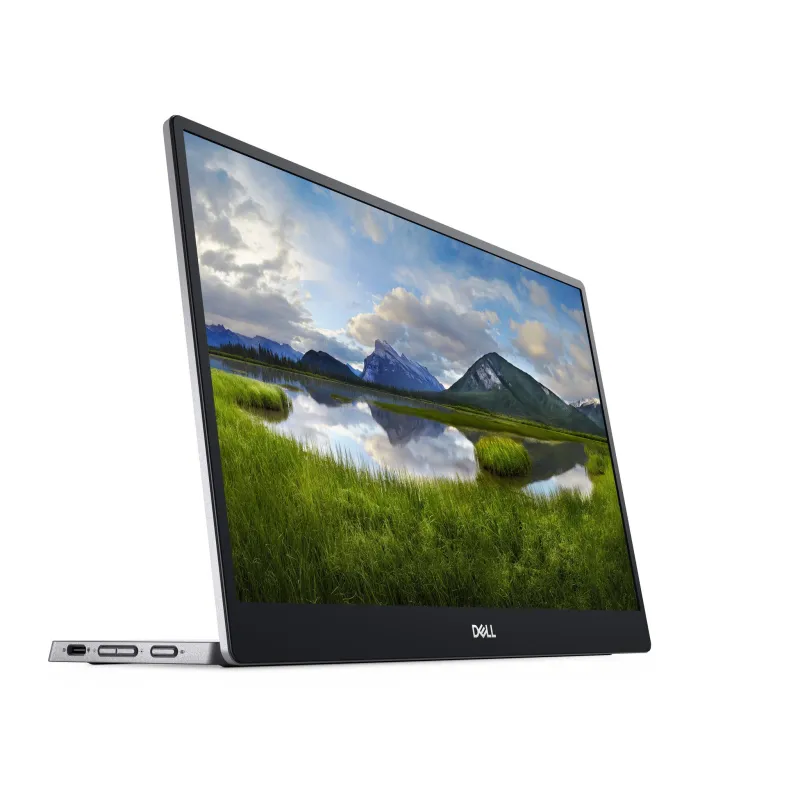

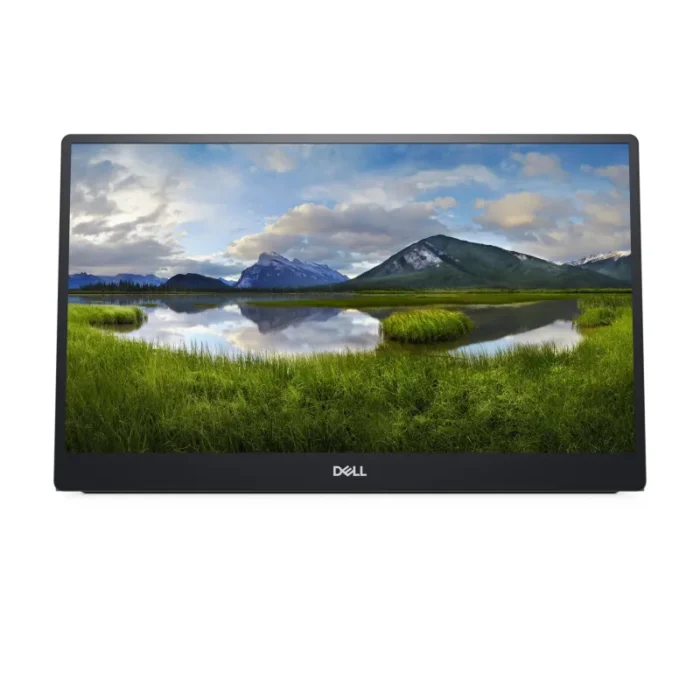

DELL P Series 14 Portable Monitor – P1424H
- 35.6cm (14″) Full HD 1920 x 1080 LED IPS
- 6ms, 16:9, 300cd/m², 700:1
- USB
Experience dual-screen productivity anywhere with Dell’s 14″ portable monitor.
| Display | |
|---|---|
| Colour gamut | 72% |
| Colour gamut standard | NTSC |
| Display diagonal (metric) | 35.56 cm |
| Digital vertical frequency | 56 – 61 Hz |
| Digital horizontal frequency | 30 – 80 kHz |
| Viewable size, vertical | 17.4 cm |
| Viewable size, horizontal | 30.9 cm |
| Pixel density | 158 ppi |
| Pixel pitch | 0.1611 x 0.1611 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 700:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 6 ms |
| Display brightness (typical) | 300 cd/m² |
| Backlight type | LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LCD |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 35.6 cm (14″) |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Front bezel colour | Black |
| Product colour | Grey |
| Market positioning | Business |
| Ports & interfaces | |
|---|---|
| HDCP version | 1.4 |
| HDCP | Yes |
| Headphone out | No |
| HDMI | No |
| USB Power Delivery up to | 65 W |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Number of USB Type-C upstream ports quantity | 2 |
| Ergonomics | |
|---|---|
| LED indicators | Yes |
| Plug and Play | Yes |
| On Screen Display (OSD) | Yes |
| Tilt angle range | 10 – 90° |
| Tilt adjustment | Yes |
| Height adjustment | No |
| Cable lock slot | No |
| VESA mounting | No |
| Power | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 1435998 |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Power consumption (off) | 0.3 W |
| Power consumption (max) | 7.5 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 5 W |
| Energy consumption (SDR) per 1000 hours | 5 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | B |
| Operational conditions | |
|---|---|
| Non-operating altitude | 5000 – 12192 m |
| Operating altitude | 0 – 5000 m |
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.22 cm |
| Bezel width (top) | 6.54 mm |
| Bezel width (side) | 6.53 mm |
| Height (without stand) | 202.7 mm |
| Depth (without stand) | 4.95 mm |
| Width (without stand) | 322.4 mm |
| Weight (with stand) | 590 g |
| Height (with stand) | 202.7 mm |
| Depth (with stand) | 14.3 mm |
| Width (with stand) | 322.4 mm |
| Packaging data | |
|---|---|
| Package weight | 1.12 kg |
| Sustainability | |
|---|---|
| Doesn’t contain | PVC/BFR |
| Sustainability certificates | ENERGY STAR |
| Carbon footprint | |
|---|---|
| Total carbon emissions, standard deviation (kg of CO2e) | 99 |
| Carbon emissions, energy usage (kg of CO2e) | 47 |
| PAIA version | 1.3.2 |
| Total carbon footprint (kg of CO2e) | 421 |
| Carbon emissions, manufacturing (kg of CO2e) | 368 |
| Carbon emissions, logistics (kg of CO2e) | 6 |
| Carbon emissions, end-of-life (kg of CO2e) | 1 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 374 |
| General | |
|---|---|
| Product family | P Series |
| Other features | |
|---|---|
| Heavy metals free | Hg (mercury) |
| Compliance certificates | RoHS |
