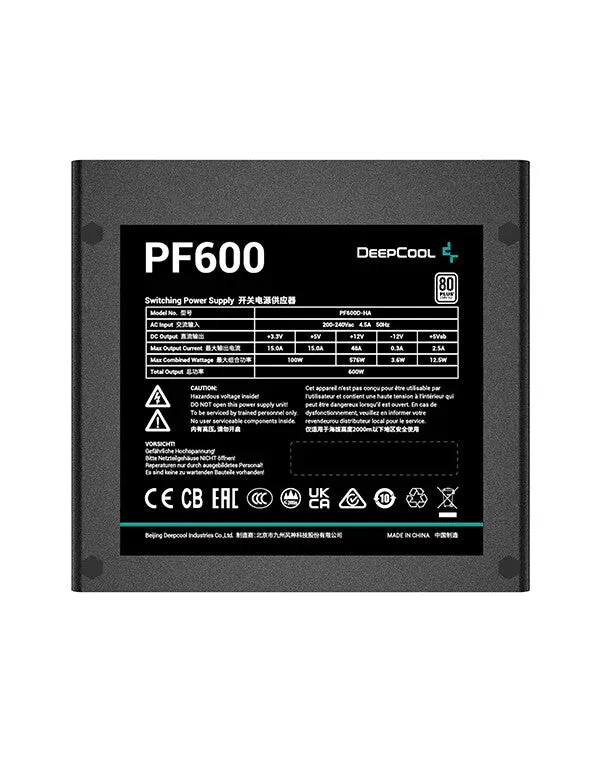

DeepCool PF600 power supply unit 600 W 20+4 pin ATX ATX Black
- 600 W 200 – 240 V 50 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS White
- Active 12 cm
- Black
TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.
SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.
FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.
RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection
| Power |
| Power protection features |
Over power, Over voltage, Short circuit, Under voltage |
| Hold time |
16 ms |
| Efficiency |
85% |
| Max output current (+5Vsb) |
2.5 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
15 A |
| Max output current (+12V) |
48 A |
| Max output current (+3.3V) |
15 A |
| Combined power (+5Vsb) |
12.5 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
100 W |
| Combined power (+12V) |
576 W |
| Combined power (+3.3V) |
100 W |
| Power Factor Correction (PFC) type |
Active |
| Input current |
4.5 A |
| AC input frequency |
50 Hz |
| AC input voltage |
200 – 240 V |
| Total power |
600 W |
| Ports & interfaces |
| Cabling type |
Non-Modular |
| PCI Express connector |
Yes |
| ATX power connector (20+4 pin) |
Yes |
| CPU power cable length |
61 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
51 cm |
| PCI Express power connectors (6+2 pin) |
4 |
| EPS power connector (4+4 pin) |
Yes |
| Peripheral (Molex) power cable length |
150 mm |
| Peripheral (Molex) power connectors (4-pin) |
2 |
| SATA power cable length |
450 mm |
| Number of SATA power connectors |
6 |
| Motherboard power cable length |
55 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
HYB |
| ATX version |
2.4 |
| Supported motherboard form factors |
ATX |
| 80 PLUS certification |
80 PLUS White |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| On/off switch |
Yes |
| Fan location |
Top |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
| Operating temperature (T-T) |
0 – 30 °C |
| Packaging content |
| Cable tie(s) included |
Yes |
| Cables included |
AC, CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions |
| Height |
86 mm |
| Depth |
140 mm |
| Width |
150 mm |
| Technical details |
| Sustainability certificates |
ErP |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
