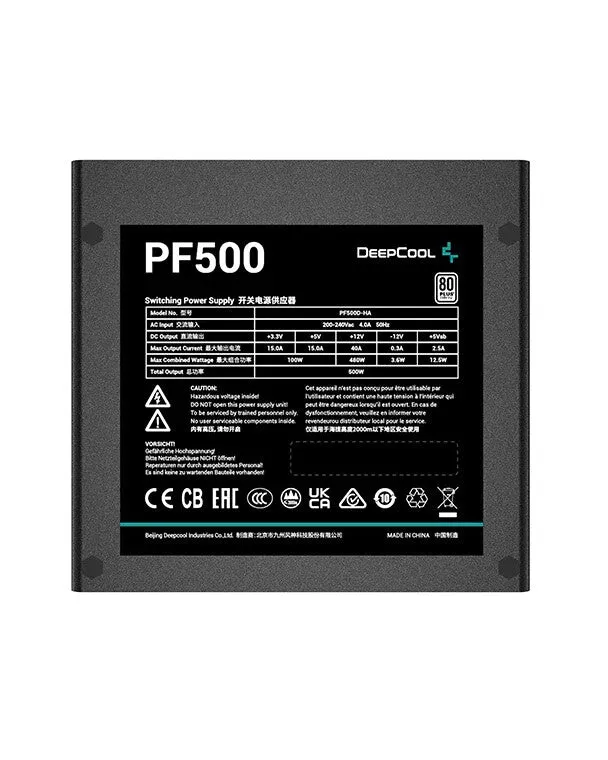

DeepCool PF500 power supply unit 500 W 20+4 pin ATX ATX Black
- 500 W 200 – 240 V 50 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS White
- 12 cm
- Black
The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.
TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.
SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.
FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.
RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.
| Power |
| Power protection features |
Over power, Over voltage, Short circuit, Under voltage |
| Efficiency |
85% |
| Max output current (+5Vsb) |
2.5 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
15 A |
| Max output current (+12V) |
40 A |
| Max output current (+3.3V) |
15 A |
| Combined power (+5Vsb) |
12.5 W |
| Combined power (+5V) |
100 W |
| Combined power (+12V) |
480 W |
| Combined power (+3.3V) |
100 W |
| Input current |
4 A |
| AC input frequency |
50 Hz |
| AC input voltage |
200 – 240 V |
| Total power |
500 W |
| Ports & interfaces |
| Cabling type |
Non-Modular |
| PCI Express power cable length |
51 cm |
| PCI Express power connectors (6+2 pin) |
2 |
| Peripheral (Molex) power cable length |
150 mm |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| SATA power cable length |
450 mm |
| Number of SATA power connectors |
3 |
| Motherboard power cable length |
55 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
Sleeve |
| ATX version |
2.4 |
| Supported motherboard form factors |
ATX |
| 80 PLUS certification |
80 PLUS White |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| Fan diameter |
12 cm |
| Product colour |
Black |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height |
86 mm |
| Depth |
140 mm |
| Width |
150 mm |
| Technical details |
| Sustainability certificates |
ErP |
