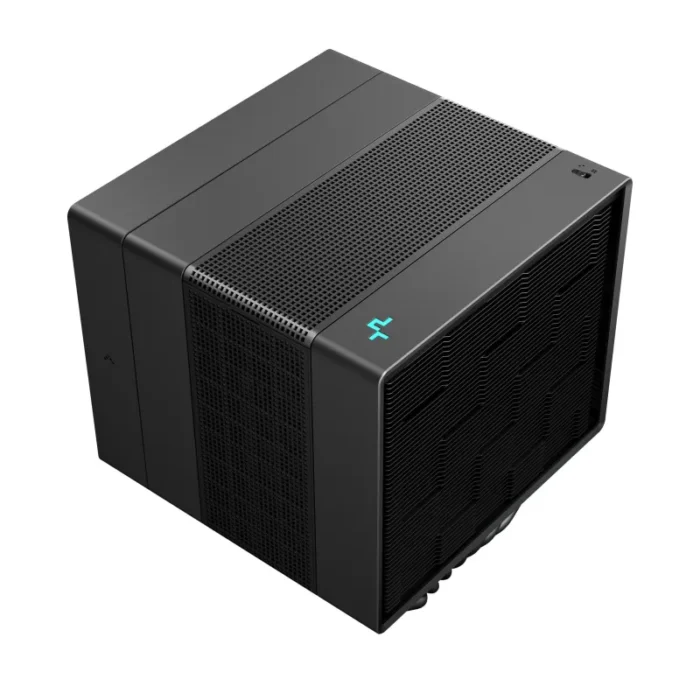

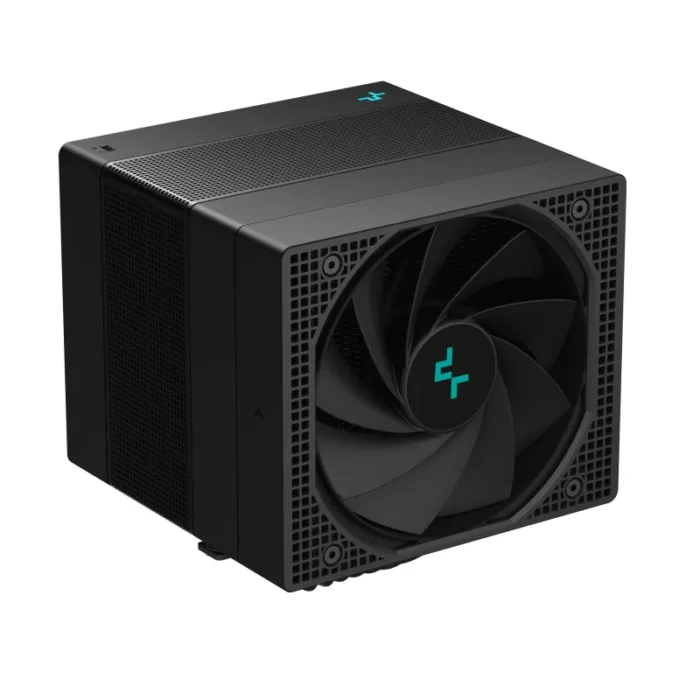

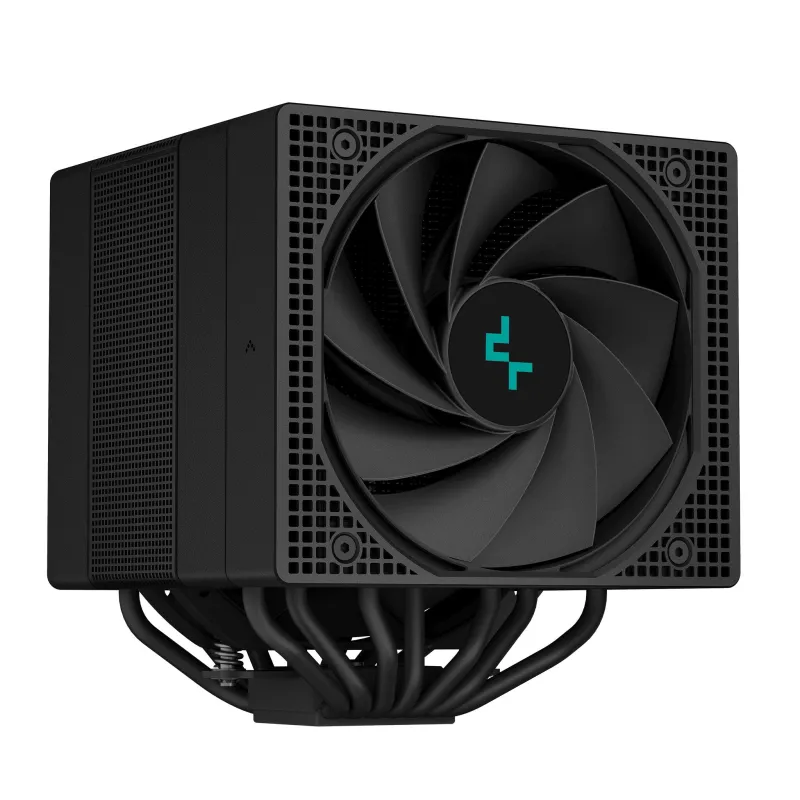

DeepCool ASSASSIN IV Processor Air cooler 14 cm Black 1 pc(s)
- Processor Air cooler 14 cm
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
- 79.1 cfm 2.44 mmH2O
- Pulse-width modulation (PWM) support
- 140 x 140 x 25 mm
- Black
- 1 pc(s)
The silent heat killer returns with a new aesthetic and maximum cooling capacity. The ASSASSIN IV provides exceptional performance and is armed with seven heat pipes and newly designed 120 and 140mm FDB fans.
BEAUTY IN SIMPLICITY
The elegant design of the ASSASSIN IV is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
IN SILENT OR EXTREME MODE, THE ASSASSIN IV REIGNS SUPREME
With a simple slide of a switch, the ASSASSIN IV can morph from a whisper-quiet cooler when low noise is of the utmost importance to an unrestricted cooling powerhouse when peak performance is all that matters.
BE COOL, BE CALM
A key factor in the ASSASSIN IV’s extremely silent operation is the use of three-phase, six-stage fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN IV comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN
Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
| Performance | |
|---|---|
| Fan speed (max) | 1700 RPM |
| Fan speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 29.3 dB |
| Fan noise level (min) | 22.6 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.44 mmH2O |
| Maximum airflow | 79.1 cfm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Fan diameter | 14 cm |
| Type | Air cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of heat pipes | 7 |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Fan voltage | 12 V |
| Fan current | 0.1 A |
| Fan power consumption | 2.88 W |
| Weight & dimensions | |
|---|---|
| Heat pipes diameter | 6 mm |
| Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Weight | 1.57 kg |
| Height | 164 mm |
| Depth | 147 mm |
| Width | 144 mm |
| Packaging content | |
|---|---|
| Adapter frame included | Yes |
| CPU bracket(s) | Yes |
| Screws included | Yes |
| Mounting kit | Yes |
| Package type | Box |
