DeepCool AN600 Processor Air cooler 12 cm Aluminium, Black 1 pc(s)
- Processor Air cooler 12 cm
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
- 61.56 cfm 1.97 mmH2O
- 120 x 120 x 15 mm
- Aluminium, Black
- 1 pc(s)
AN600

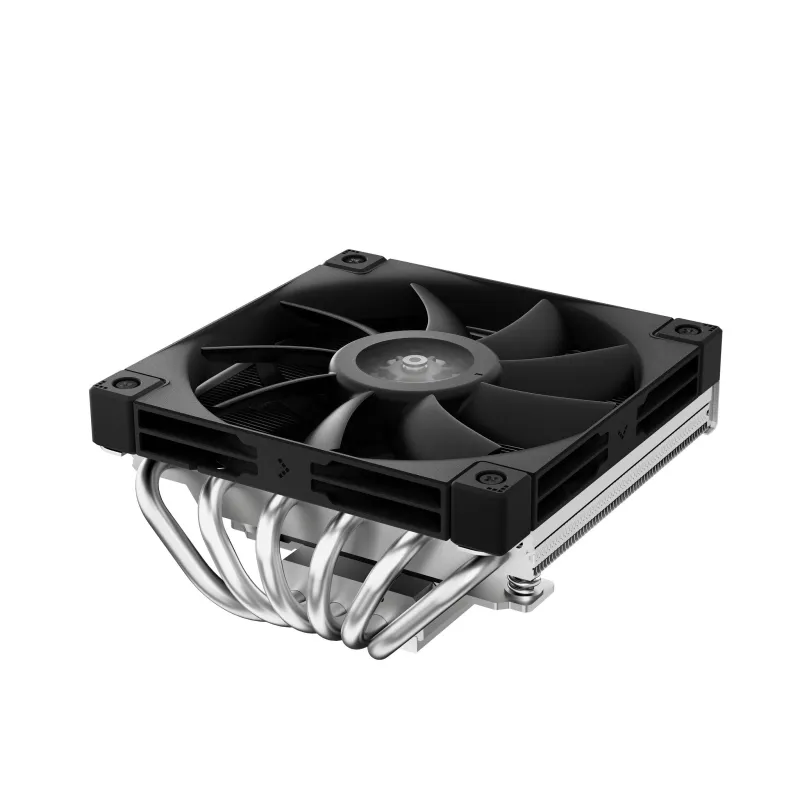

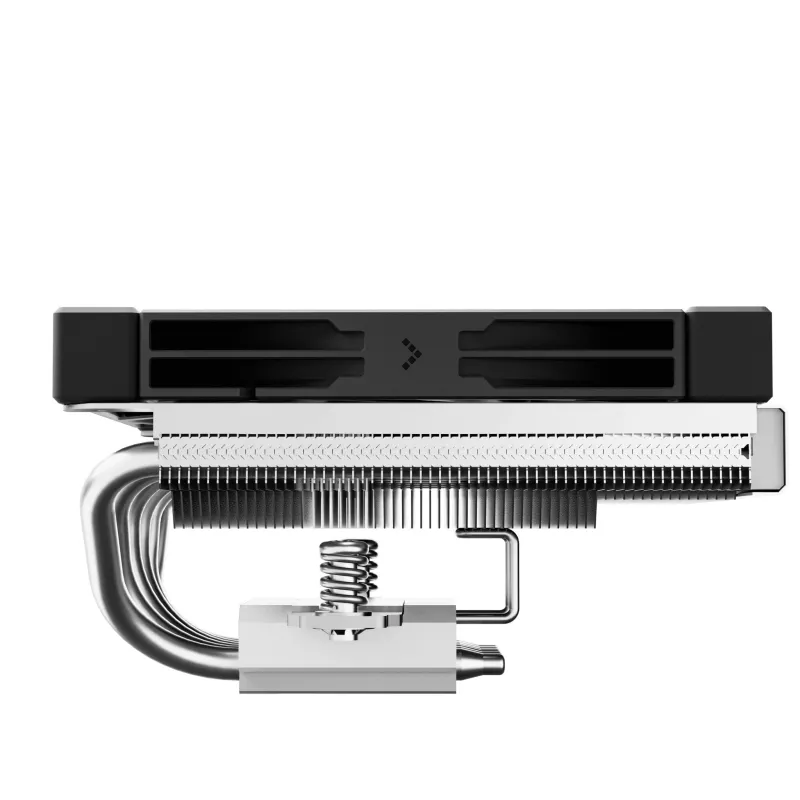

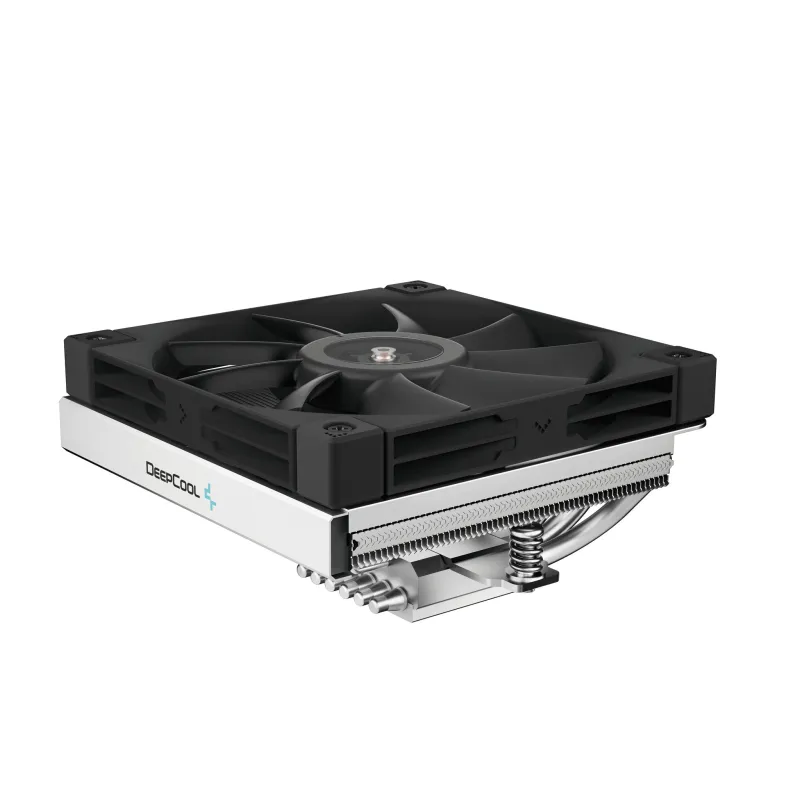

The AN600 is a low-profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.
AN600
Top Flow Low Profile Cooler
KEEPING THINGS COOL
Utilizing 62 aluminum fins, a slim profile 120mm fan, 6 optimized heatpipes, and a raised copper coldplate, the AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.
MORE THAN A CPU COOLER
Taking full advantage of the slim 120mm PWM-enabled FDB fan and a top-down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below. The visible 6-phase fan motor ensures all of this is accomplished while staying under 24.2 dB(A). A low-noise adapter cable is included.
SIMPLIFIED SUPPORT
The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.
| Performance | |
|---|---|
| Fan speed (max) | 1850 RPM |
| Fan speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 24.2 dB |
| Maximum air pressure | 1.97 mmH2O |
| Maximum airflow | 61.56 cfm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Fan diameter | 12 cm |
| Type | Air cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | White |
| Illumination LED | Yes |
| Number of heat pipes | 6 |
| Number of fan blades | 9 |
| Number of fans | 1 fan(s) |
| Radiator material | Aluminum |
| Product colour | Aluminium, Black |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 180 W |
| Fan voltage | 12 V |
| Fan current | 0.27 A |
| Fan power consumption | 3.24 W |
| Weight & dimensions | |
|---|---|
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 15 mm |
| Weight | 628 g |
| Height | 67 mm |
| Depth | 120 mm |
| Radiator height | 5.2 cm |
| Radiator depth | 12 cm |
| Radiator width | 12.1 cm |
| Width | 122 mm |
| Packaging content | |
|---|---|
| CPU bracket(s) | Yes |
| Screws included | Yes |
| Mounting kit | Yes |
| Package type | Box |
