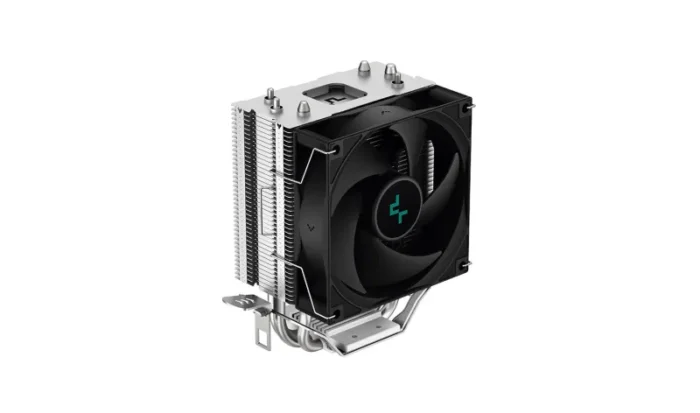

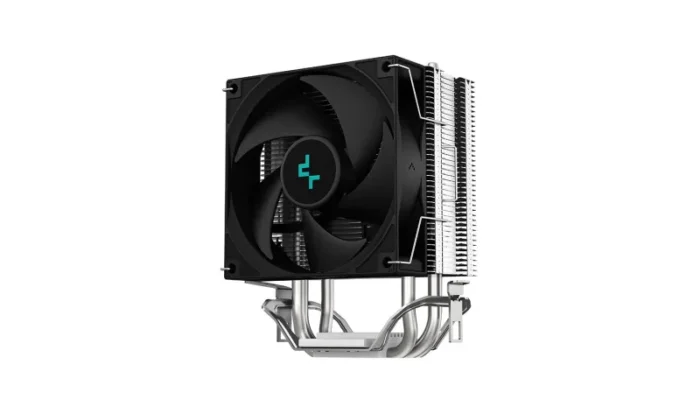

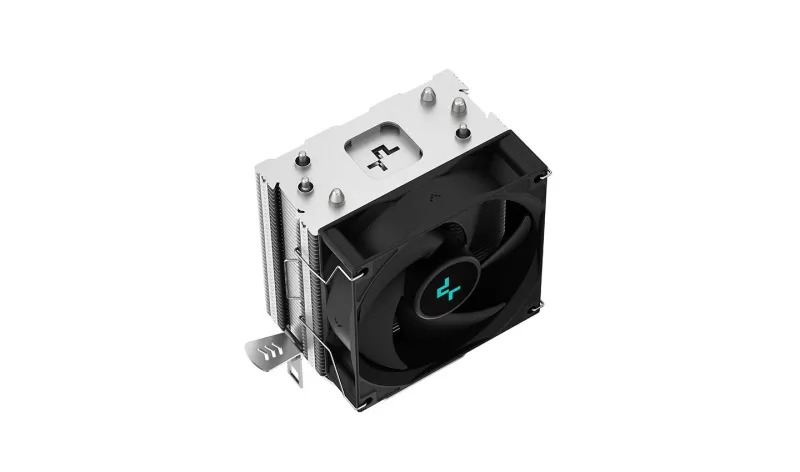

DeepCool AG300 Chipset Air cooler 9.2 cm Black, Metallic
- Chipset Air cooler 9.2 cm
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
- 36.75 cfm 2.89 mmH2O Hydraulic
- 92 x 92 x 25 mm
- Black, Metallic
The AG300 is a compact single-tower CPU cooler representing a new generation update from the classic GAMMAXX basic coolers with upgraded appearance and efficiency at 150W heat dissipation power.
EFFICIENT COOLING POWER
Three direct contact copper heat pipes effectively transfer heat for optimal dissipation through the heat sink tower. The 92mm PWM fan outputs balanced airflow for performance and silence.
NEW FAMILY APPEARANCE
The AG300 adopts a new DeepCool family design and features a unique matrix fin array that densely packs each fin for a neat and firm construction. The nickel plated heat pipes provide extra protection against copper corrosion.
EASY INSTALLATION
Compatible with multiple socket platforms from Intel and AMD with support for the latest changes. Ensure a proper mount pressure with the included brackets for a seamless installation.
| Performance | |
|---|---|
| Pump connector | 4-pin |
| Fan noise level (max) | 30.5 dB |
| Bearing type | Hydraulic |
| Maximum air pressure | 2.89 mmH2O |
| Maximum airflow | 36.75 cfm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Fan diameter | 9.2 cm |
| Type | Air cooler |
| Suitable location | Chipset |
| Design | |
|---|---|
| Number of heat pipes | 3 |
| Number of fans | 1 fan(s) |
| Product colour | Black, Metallic |
| Power | |
|---|---|
| Maximum current | 0.13 A |
| Voltage | 12 V |
| Power consumption (typical) | 1.56 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 92 x 92 x 25 mm |
| Weight | 350 g |
| Height | 129 mm |
| Depth | 77 mm |
| Width | 119 mm |
| Packaging content | |
|---|---|
| Number of clips | 4 |
| Package type | Box |
- manual pdf
- [Installation Guide] DeepCool Air Cooler AG200/AG300
