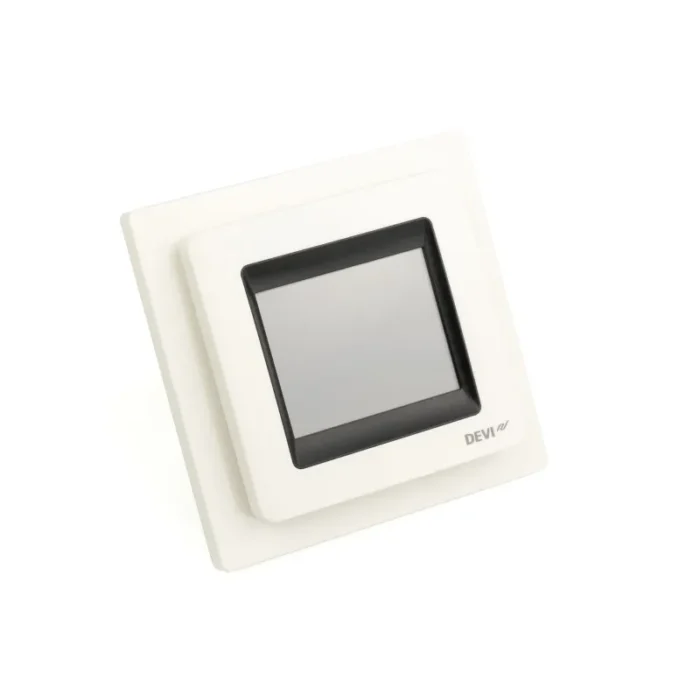

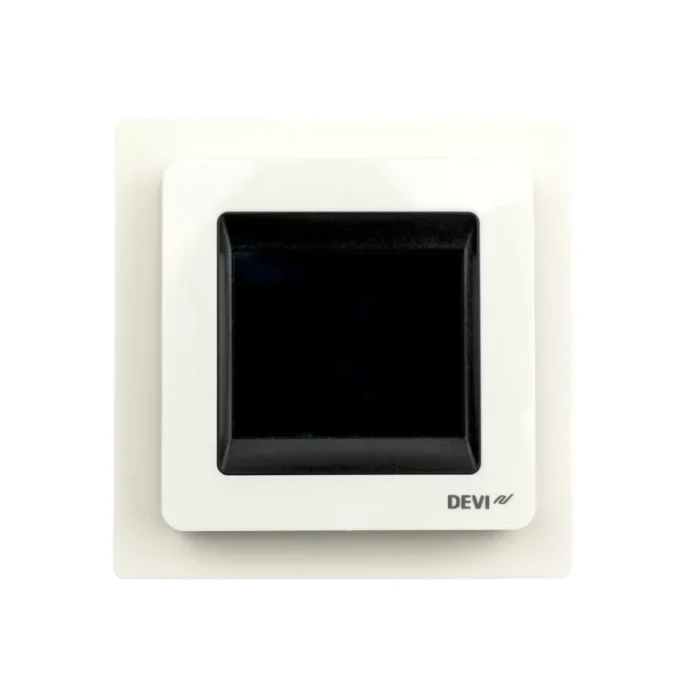

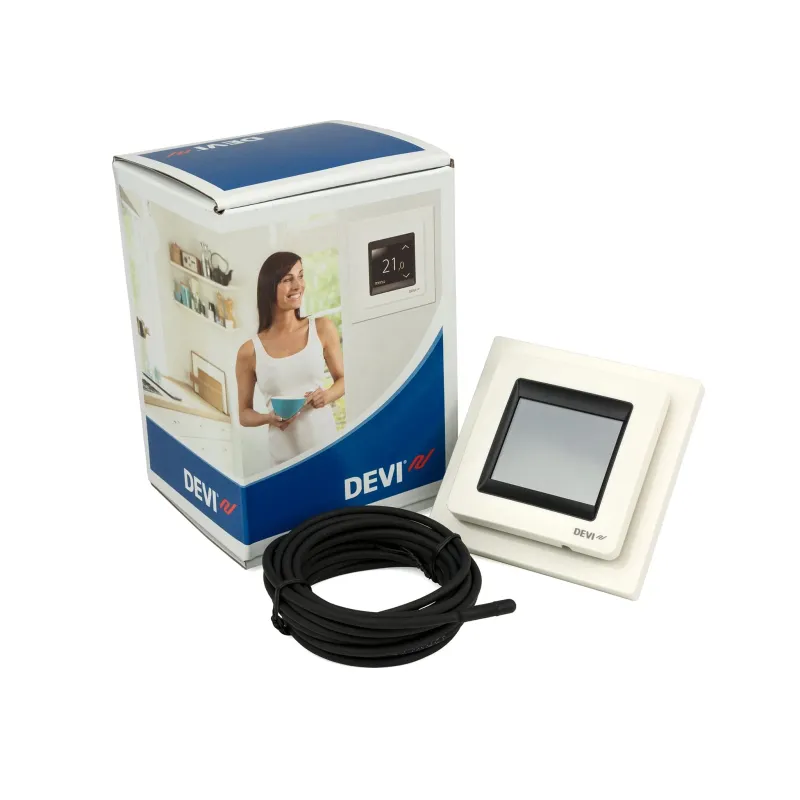

Danfoss DEVIreg™ Touch Pure White Thermostat
DEVIreg™ Touch
The DEVIreg™ Touch is an intuitive programmable timer thermostat used for controlling electrical floor heating elements. The thermostat is designed for fixed installation only and due to the specially designed 2-part construction it fits a wide range of frames and sensors.
The DEVIreg™ Touch is fast and intuitive to set up using the built-in wizard. It has an energy-saving program – including an optimum start/end control ensuring the desired temperature at the correct time and thereby reducing the heating costs.
Benefits:
- Big 2” touchscreen
- Built-in setup wizard
- Easy and intuitive functionalities
- Adaptive PWM function
- Fits several single and multiple frames.
- Fits several competitor NTC sensors.
- Optional code setup
- Easy online troubleshooting
Standard compliance:
- EN/IEC 60730-1 (general)
- EN/IEC 60730-2-9 (thermostat)
|
Operation voltage |
220 V- 240V~ 50/60 Hz |
|
Standby power consumption |
max. 0.40 W |
|
Relay: Resistive load Inductive load |
16A / 3680W @ 230V Cos Φ = 0.3 max. 1A |
|
Sensing unit |
NTC 15 kΩ @ 25°C, 3 m. (default), NTC 10 kΩ @ 25°C, NTC 6.8 kΩ @ 25°C, NTC 33 kΩ @ 25°C, NTC 12 kΩ @ 25°C, NTC 47 kΩ @ 25°C |
|
Regulation |
PWM – Pulse Width Modulation |
|
Ambient temperature |
0°C to 30°C |
|
Frost protection |
5°C to 9°C (default 5°C ) |
|
Temperature range |
5°C to 35°C (room) 5°C to 35°C (45°C with break out) (floor) |
|
Storage temperature |
-20°C to 65°C |
|
Cable specification max. |
1 x 4 mm2 or 2 x 2.5 mm2 |
|
Ball pressure test temperature |
75°C |
|
Pollution degree |
2 (domestic use) |
|
Controller type |
1 C |
|
Software class |
A |
|
IP class |
21 |
|
Protection class |
Class II – |
|
Dimensions (H/W/D) |
85 mm x 85 mm x 20-24 mm (in-wall depth: 22 mm) |
|
Weight |
115 g |
