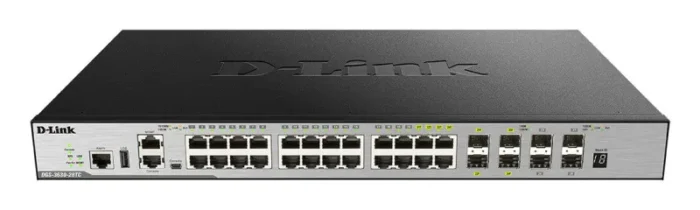

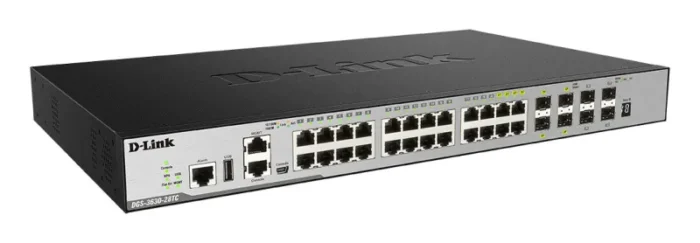

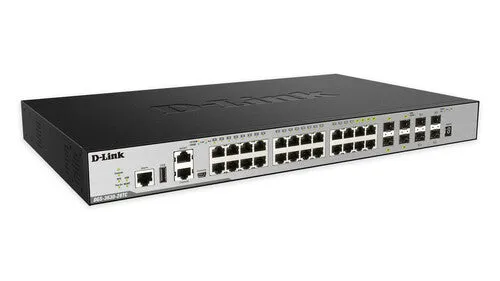

D-Link Gigabit L3 Stackable Managed Switches DGS-3630 Series Standard Image
- Managed L3 Web-based management SNMP, NTPv3/v4, Telnet
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 20 Console port: RJ-45/Mini-USB
- 10G support 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 68000 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included
The DGS-3630 Series Gigabit L3 Stackable Managed Switches are a range of switches designed for Small to Medium Businesses (SMBs), Small to Medium Enterprises (SMEs), enterprises and ISPs. With Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches.
Stackable Managed Switches
– Designed for Small to Medium Businesses, Enterprises and ISPs
– Deliver high performance, flexibility, fault tolerance, and advanced software features
– Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches
– High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications
– DGS-3630-28PC and DGS-3630-52PC feature Power over Ethernet, which allows PoE-powered devices to be powered by the switch through a standard Ethernet cable.
Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor’s device. It matched or exceeded the competitor’s performance across all tests despite being significantly lower in price with a much lower power consumption.
Versatile Management
The DGS-3630 Series provides:
– Network Assistant Utility
– Industry-standard CLI
– Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.
High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.
Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
| Management features | |
|---|---|
| System event log | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | AC-in jack |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| SFP+ module slots quantity | 4 |
| Combo SFP ports quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 20 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, MVRP, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 16000 |
| Full duplex | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 4 MB |
| Jumbo frames | 12000 |
| Jumbo frames support | Yes |
| Number of IP interfaces | 256 |
| Number of static routes | 512 |
| Static route | Yes |
| Number of queues | 8 |
| Forwarding rate | 95.24 Mpps |
| Switching capacity | 128 Gbit/s |
| MAC address table | 68000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSH-2, SSL/TLS |
| Authentication | Guest VLAN, Port-based authentication |
| Authentication type | IEEE 802.1x |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED) |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Root protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP auto-config, DHCP client, DHCP guarding, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
|---|---|
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | Yes |
| Protocols | |
|---|---|
| IP Source Guard (IPSG) | Yes |
| Routing protocols | BGP4, OSPFv3, RIP, RIP-1, RIP-2, RIPng, VRRP |
| Management protocols | SNMP, NTPv3/v4, Telnet |
| Design | |
|---|---|
| Electromagnetic compatibility | CE, FCC Class A, C-Tick, VCCI, BSMI, CCC |
| Safety | cUL, CB, CE, CCC, BSM |
| Number of fans | 2 fan(s) |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 300190.46 h |
| Dying Gasp | Yes |
| Noise level | 52.7 dB |
| Virtual stacking (units) | 32 |
| Power | |
|---|---|
| Surge protection voltage | 6 kV |
| Surge protection | Yes |
| Power consumption (max) | 42.4 W |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 144.58 BTU/h |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 10 – 95% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | -5 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.74 kg |
| Height | 44 mm |
| Depth | 259.8 mm |
| Width | 441 mm |
| Packaging data | |
|---|---|
| Package weight | 5.33 kg |
| Package height | 91 mm |
| Package depth | 528 mm |
| Package width | 415 mm |
| Certificates | |
|---|---|
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), RoHS, VCCI |
| Technical details | |
|---|---|
| Shipping (inner) case height | 45 cm |
| Shipping (inner) case width | 29.6 cm |
| Shipping (inner) case length | 54.9 cm |
| Shipping (inner) case net weight | 14.1 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 562.8 kg |
| Master (outer) cases per pallet (air) | 32 pc(s) |
| Products per pallet (air) | 96 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 193.5 cm |
| Pallet gross weight (sea) | 562.8 kg |
| Master (outer) cases per pallet (sea) | 32 pc(s) |
| Products per pallet (sea) | 96 pc(s) |
| Pallet height (sea) | 193.5 cm |
| Shipping (inner) case gross weight | 17 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
