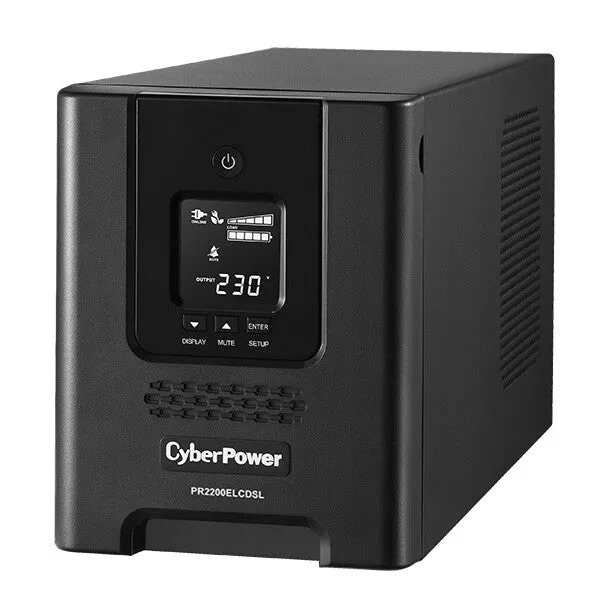

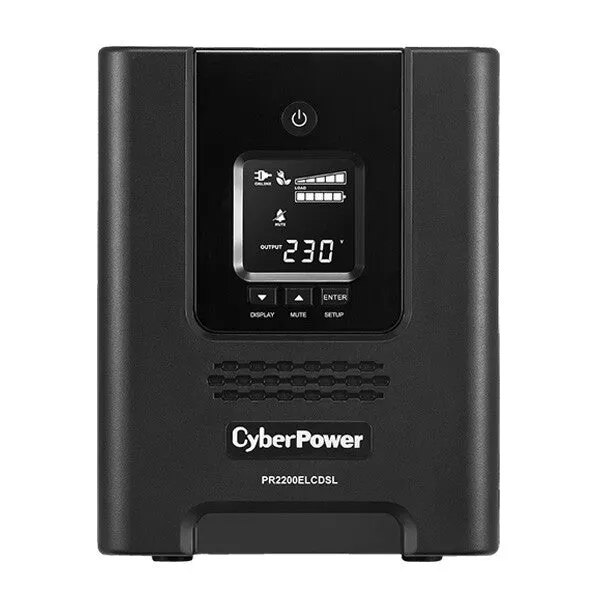

CyberPower PR2200ELCDSL uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1980 W 9 AC outlet(s)
- Line-Interactive
- 2.2 kVA 1980 W
- Waveform: Sine
- 9 AC outlet(s)
- Sealed Lead Acid (VRLA) 12 V 9 Ah
- Tower Black
The Professional Tower Series UPS provides advanced level of power protection to servers, telecom equipment, VOIP, internet working hardware and other mission-critical applications. Featuring Pure Sinewave output and Automatic Voltage Regulation (AVR) stabilizing the AC signal and maintaining a safe voltage, it allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. The multifunction LCD readout provides immediate access to precise information of critical power/battery condition and to help users control and manage the machine easily.
The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the included PowerPanel Business Edition management software, it could provide corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
| Features | |
|---|---|
| Auto-restart | Yes |
| Management protocols | SNMP, HTTP |
| Audible alarm(s) | Yes |
| Web-based management | Yes |
| Power protection features | Overload |
| Surge protection | Yes |
| EMI/RFI noise filtering | Yes |
| Emergency Power Off (EPO) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Response time | 4 ms |
| Automatic Voltage Regulation (AVR) | Yes |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 283 V |
| Input operation voltage (min) | 160 V |
| Waveform | Sine |
| Output power | 1980 W |
| Output power capacity | 2.2 kVA |
| UPS topology | Line-Interactive |

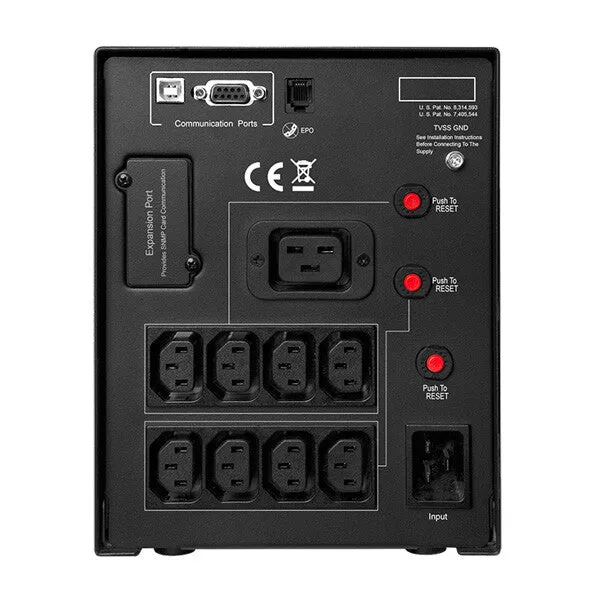

| Ports & interfaces | |
|---|---|
| Emergency Power Off (EPO) connector | Yes |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| AC outlets quantity | 9 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Battery | |
|---|---|
| Automatic battery test | Yes |
| Battery recharge time | 8 h |
| Typical backup time at half load | 12 min |
| Typical backup time at full load | 3 min |
| Number of batteries supported | 4 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| LED indicators | Yes |
| Display type | LCD |
| Product colour | Black |
| Form factor | Tower |
| Weight & dimensions | |
|---|---|
| Weight | 23.3 kg |
| Height | 221 mm |
| Depth | 432 mm |
| Width | 170 mm |
| Packaging data | |
|---|---|
| Bundled software | PowerPanel Business Edition |
| Other features | |
|---|---|
| Suitable for use in country/location | Europe |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Output connections | 8 x IEC 320 C13, 1 x IEC 320 C19 |
