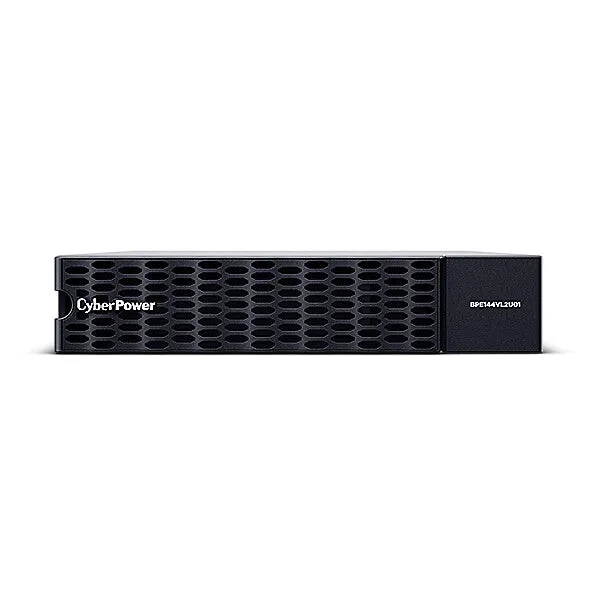

CyberPower BPE144VL2U01 UPS battery cabinet Rackmount/Tower
- Rack/Tower Convertible Configurations
- Sealed Lead-acid Batteries
- Built-in charger for Extended Battery Module (EBM)
- Hot-swappable Batteries
- EBM Expansion Capability
- Metal Housing
CyberPower BPE144VL2U01 is an Extended Battery Module (EBM) which can be used in conjunction with compatible UPS systems to provide prolonged system runtime during power interruption. The battery module comes with DC plug-and-play power connectors to allow for adding multiple EBMs. With the built-in charger design, the EBMs can charge directly from utility without resorting to UPS, significantly saving total charging time when charging multiple EBMs.
The product features hot-swappable battery packs, allowing users to safely replace battery module without interrupting connected loads. The sealed lead-acid battery used within the EBM is stable and safe, which ensures the power system’s reliable performance. Designed with industrial-grade metal enclosure, the product is suitable for data center and critical applications.
| Design |
| Compatible products |
OL5KERTHD, OL6KERTHD |
| Brand compatibility |
CyberPower |
| Housing material |
Metal |
| Product colour |
Silver |
| Rack mounting |
Yes |
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| Battery |
| Hot-swap battery |
Yes |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Number of batteries supported |
12 |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Operational conditions |
| Non-operating altitude |
0 – 15000 m |
| Operating altitude |
0 – 3000 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 90% |
| Storage temperature (T-T) |
-20 – 45 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Certificates |
| Compliance certificates |
BSMI, CE, EAC, RCM, RoHS |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
BSMI, CE, EAC, RCM, RoHS |
| Weight & dimensions |
| Weight |
44 kg |
| Height |
86.5 mm |
| Depth |
720 mm |
| Width |
433 mm |
| Packaging content |
| Rack mount kit |
Yes |
| Packaging data |
| Package weight |
53.1 kg |
| Package height |
335 mm |
| Package depth |
1100 mm |
| Package width |
600 mm |
