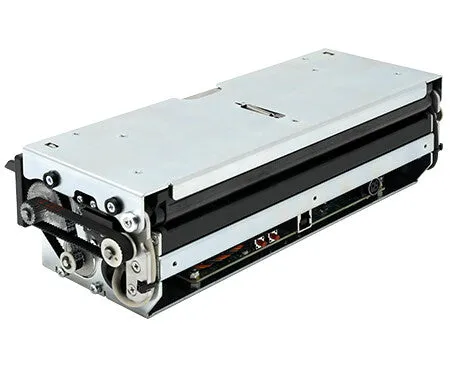

CUSTOM SCANNER A4 600 x 600 DPI Black, Metallic
- Front and rear scanning
- Sturdy: full metal body
- 200-300-600dpi resolution double side
- Scanner max speed: 400 mm/sec (B/W at 300dpi)
- Front paper mouth with RGB led
- Sensor for detection of jam/blocked sheet (internal encoder)
- Document alignment system in entrance(deskew)

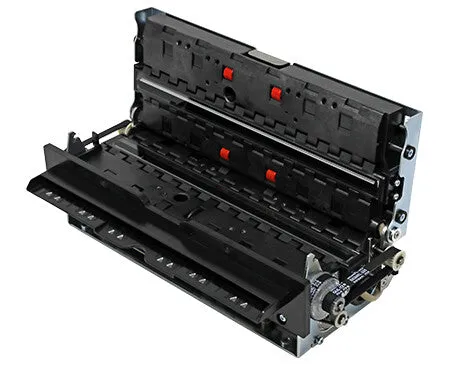

- Fully inspectionable for easy cleaning and maintenance
- Retract or eject
- Paper width: min 70 mm – max 218 mm
A4 front/rear color Scanner
Custom A4 Scanners guarantee high performance (400 mm/s) of front/back color scanning and better than average data transfer (USB 3.0 at 5 Mbit/s) to support all applications with a resolution up to 600 dpi (at 73 mm/s), along with the option of integrating with third party applications. The main reference markets are: banking, industrial, aviation, railways, public transports, gaming, logistics and retail.
| Scanning |
| Duplex scanning |
Yes |
| Optical scanning resolution |
600 x 600 DPI |
| Maximum scan size |
217.4 x 1000 mm |
| Design |
| Product colour |
Black, Metallic |
| Built-in display |
No |
| Performance |
| Processor frequency |
375 MHz |
| Built-in processor |
Yes |
| Internal memory |
512 MB |
| Light source |
RGB LED |
| Sensor type |
CIS |
| Paper handling |
| Maximum scan length |
100 cm |
| Maximum scan width |
21.7 cm |
| Maximum ISO A-series paper size |
A4 |
| Ports & interfaces |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| USB port |
Yes |
| Power |
| Current |
1 A |
| Input voltage |
24 V |
| Power supply type |
DC |
| Weight & dimensions |
| Weight |
1.98 kg |
| Height |
77 mm |
| Depth |
274 mm |
| Width |
127.4 mm |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Operational conditions |
| Operating temperature (T-T) |
0 – 50 °C |
