Crestron HD-TX-4KZ-101-1G-B AV extender AV transmitter Black
- Interoperability with a DM Lite® receiver or DMPS Lite™ switcher
- Point-to-point extension of an HDMI® signal over a CAT5e or higher cable
- DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- HDR10, HDR10+, and Dolby Vision® video formats
- Compliance with HDCP 2.3
- CEC (Consumer Electronics Control) pass-through capability
- EDID pass-through capability
- One-gang wall plate design with black finish
- Decorator style faceplate required (FP-G Series sold separately)

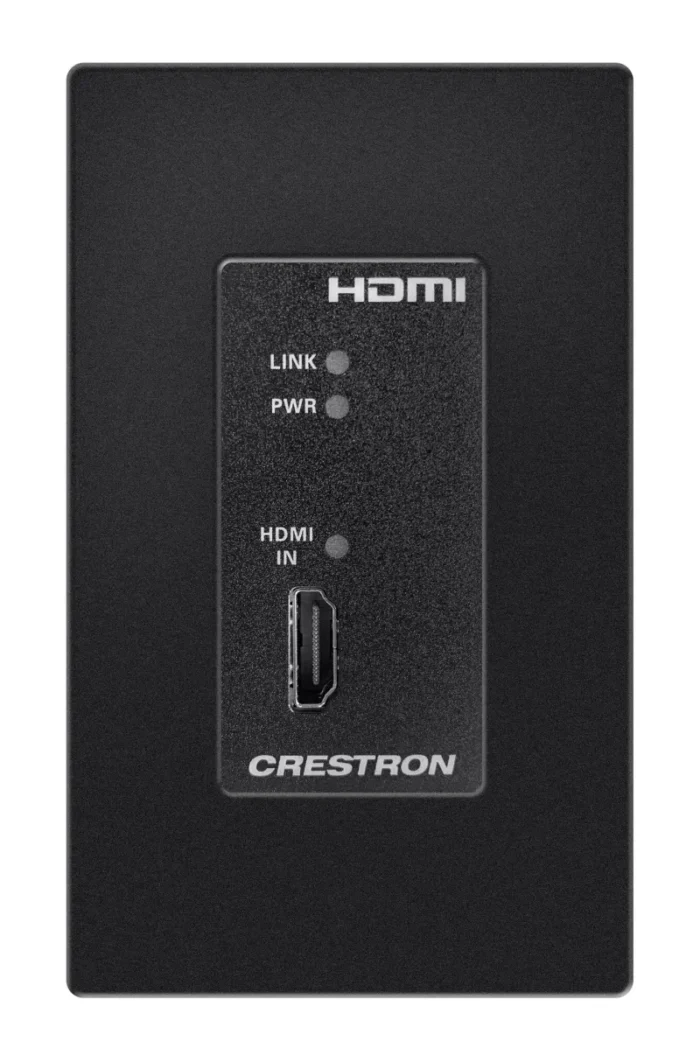

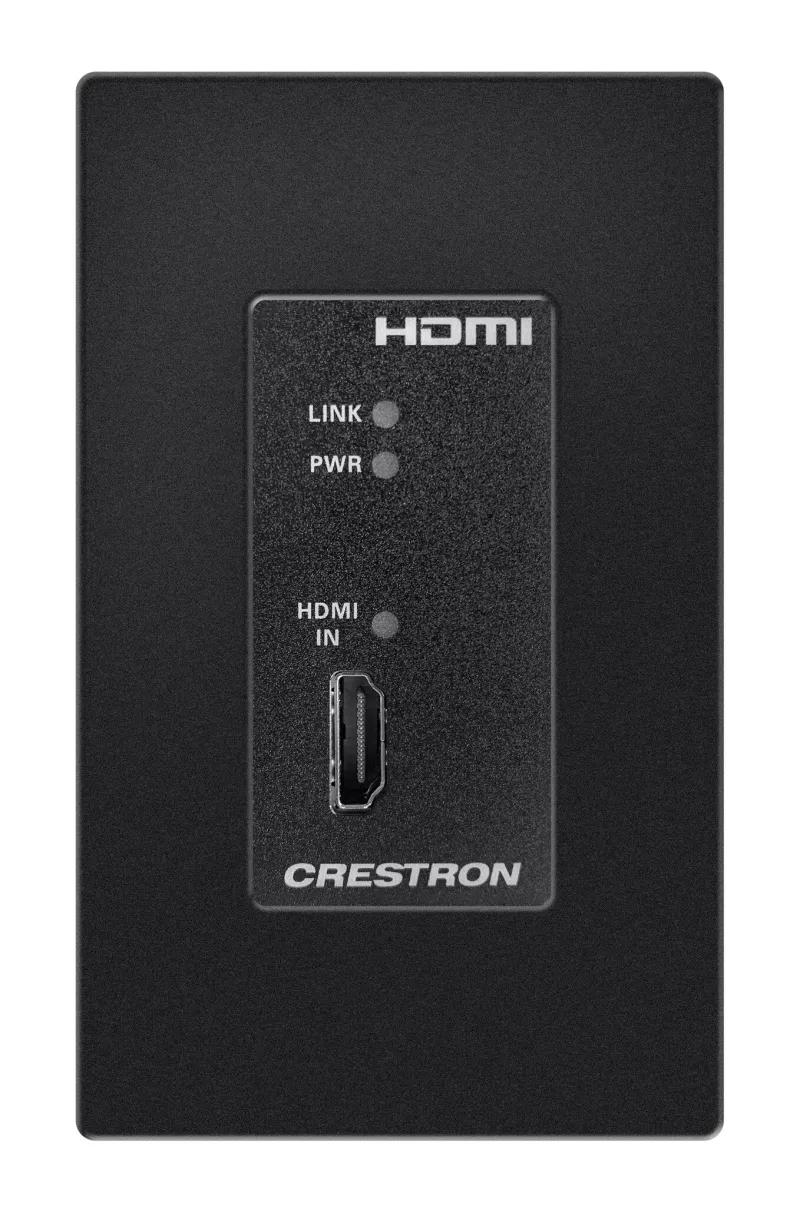

Interoperability with a DM Lite® receiver or DMPS Lite™ switcher to provide point-to-point extension of an HDMI® signal over a CATx cable. Supports 4K60 4:4:4 video, HDR10+, and HDCP 2.3. Mounts into a 1-gang electrical box.
The HD-TX-4KZ-101-1G is a DM Lite® 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher for the transmission of an HDMI® signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-101-1G to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.
The HD-TX-4KZ-101-1G is available in two models: HD-TX-4KZ-101-1G-B (black) and HD-TX-4KZ-101-1G-W (white).
Interoperability with a DM Lite Receiver or DMPS Lite Switcher
The DM Lite output port of the HD-TX-4KZ-101-1G must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD‑RX‑4KZ‑101, HD‑RXA‑4KZ‑101, HD‑RXC‑4KZ‑101, and HD‑RXCA‑4KZ‑101. Supported DMPS Lite switchers are the HD‑PS621, HD‑PS622, HD‑PS401, HD‑PS402, and HD‑RX‑4K‑210‑C‑E(‑POE).
Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.
The HD-TX-4KZ-101-1G can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-101-1G. In addition, control system programming and .AV Framework™ software support of the HD-TX-4KZ-101-1G is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-TX-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

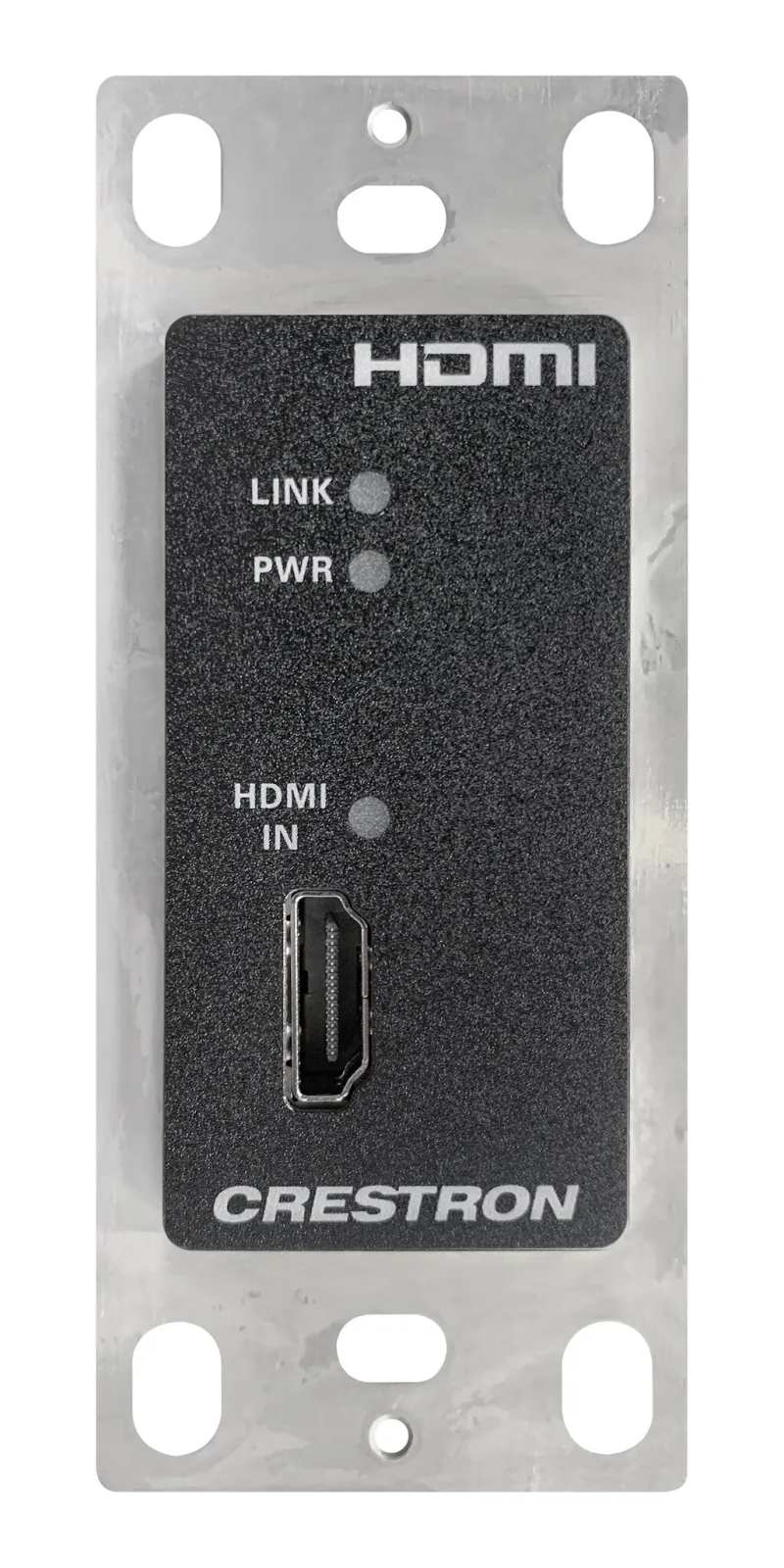

One-Gang Wall Plate Design
The HD‑TX‑4KZ‑101‑1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-TX-4KZ-101-1G can receive power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher.
| Features | |
|---|---|
| Product colour | Black |
| HDCP | Yes |
| HDCP version | 2.3 |
| Audio formats supported | DTS, LPCM |
| Colour depth | 12 bit |
| Frame rate | 60 fps |
| Material | Metal, Polycarbonate (PC) |
| LED indicators | Activity, Power |
| High Dynamic Range (HDR) technology | Dolby Vision, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus) |
| High Dynamic Range (HDR) supported | Yes |
| Maximum transfer distance | 70 m |
| Cable types supported | Cat5e |
| Maximum resolution | 4096 x 2160 pixels |
| Type | AV transmitter |
| Power | |
|---|---|
| Current | 0.75 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 20 – 90% |
| Weight & dimensions | |
|---|---|
| Weight | 152 g |
| Height | 105 mm |
| Depth | 56 mm |
| Width | 44 mm |
| Packaging content | |
|---|---|
| Mounting brackets included | Yes |
| Manual | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
- leaflet
- manual pdf
