Cooler Master V Platinum 1300 V2 power supply unit 1300 W 24-pin ATX ATX Black
- Ultra-quiet Mobius fan improves airflow
- Advanced heat dissipation
- ATX 3.1 support & a durable 90° 12V-2×6 cable
- Interleaved PFC design decreases power loss
Quietly Supreme
V Platinum V2 delivers silent operation, featuring an ultra-quiet Mobius fan, a protective conformal coating heatsink, smart thermal control, zero-RPM fan mode, fully modular cabling, and 80 Plus Platinum efficiency, backed by a 12-year warranty.

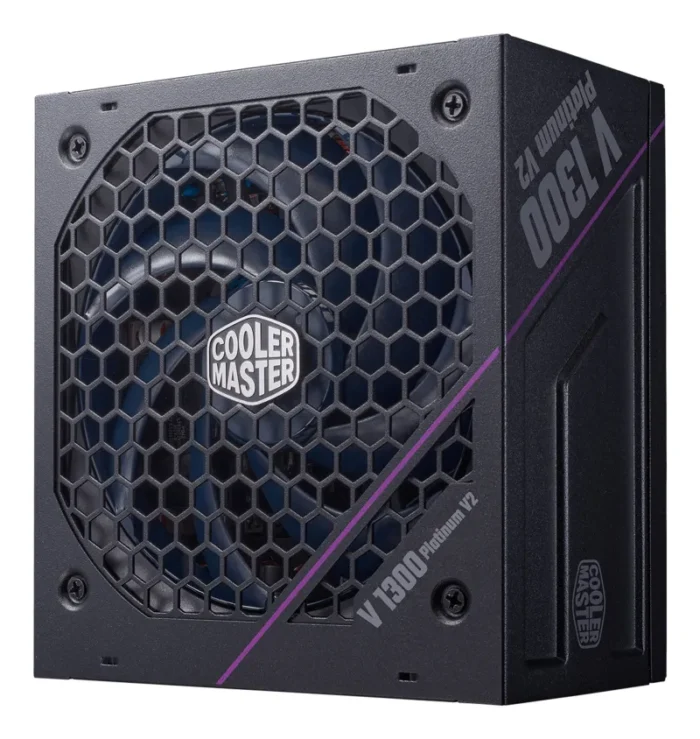

Mobius fan enhances thermal performance and a longer lifespan
An ultra-quiet Mobius fan featuring high-performance oil reflow, an innovative ring blade design, and accelerated pressure air vents provides improved noise levels and advanced thermal performance.
Mobius fan featuring a Ring Blade Design (RBD) for advanced heat dissipation
An angled inner frame rim with chamfered side vents boosts airflow draw, maximizing force induced air pressure and diminishing dead air.
Silent fan performance with a zero speed mode
A quieter, speedier fan features lower noise level output and improved airflow thanks to a higher RPM.
*All performance stats confirmed in 25°C ambient temperature testing.
Advanced heat dissipation
Purple anodic-coated heat sink with bevel cut lowers average temperatures, compared to traditional heat sinks. Bevel cuts bring out the heat source more effectively, and after concentrating the flow field, benefiting the heat dissipation.
CERTIFIED EFFICIENCY
An interleaved PFC decreases power loss and improves efficiency by minimizing current, reducing interference, and reducing output capacitor ripple current.
ATX 3.1 support & a durable 90° 12V-2×6 cable
Includes ATX 3.1 support and a 90° 12V-2×6 connector featuring more reliability, higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.
*All performance stats confirmed in 25°C ambient temperature testing.

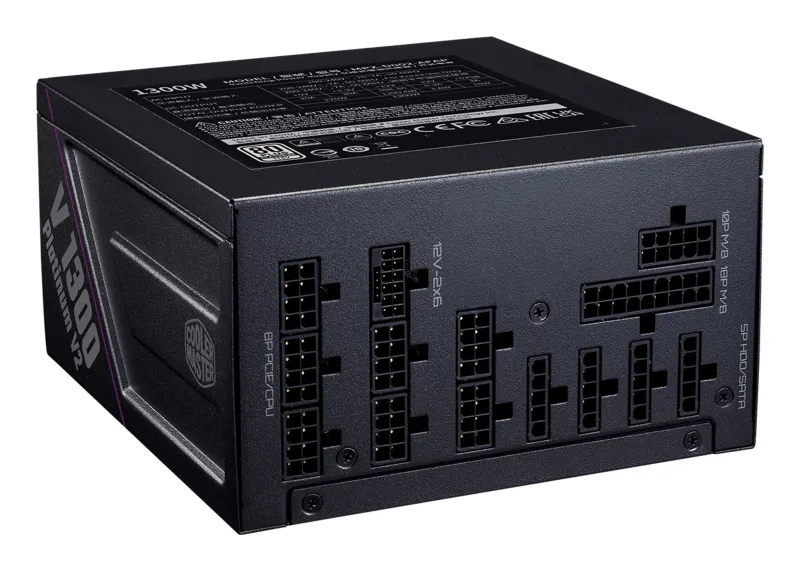

Fully modular cabling
A modular cable management design reduces clutter, increases airflow, and improves overall efficiency as well as thermal performance.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Surge protection, Under voltage |
| Hold time | 16 ms |
| Efficiency | 92% |
| Power Good signal delay range | 100 – 150 ms |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 108.3 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 120 W |
| Combined power (+12V) | 1299.6 W |
| Combined power (+3.3V) | 120 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 15 – 7 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Total power | 1300 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| ATX Power connector (24-pin) | Yes |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 5 |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power cable length | 120,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 120,500 mm |
| Number of SATA power connectors | 16 |
| Motherboard power cable length | 65 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | LDB |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Fan speed | 0 – 2400 RPM |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 50 °C |
| Certificates | |
|---|---|
| Certification | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA,RoHS2.0 / BIS, KC |
| Packaging content | |
|---|---|
| Cables included | PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
|---|---|
| Weight | 3.66 kg |
| Height | 86 mm |
| Depth | 160 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 4.05 kg |
| Package height | 320 mm |
| Package depth | 125 mm |
| Package width | 195 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
