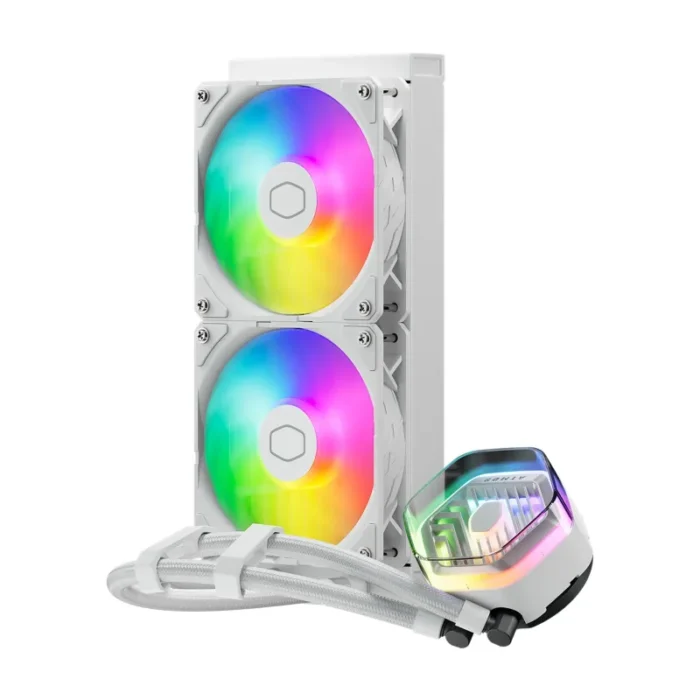

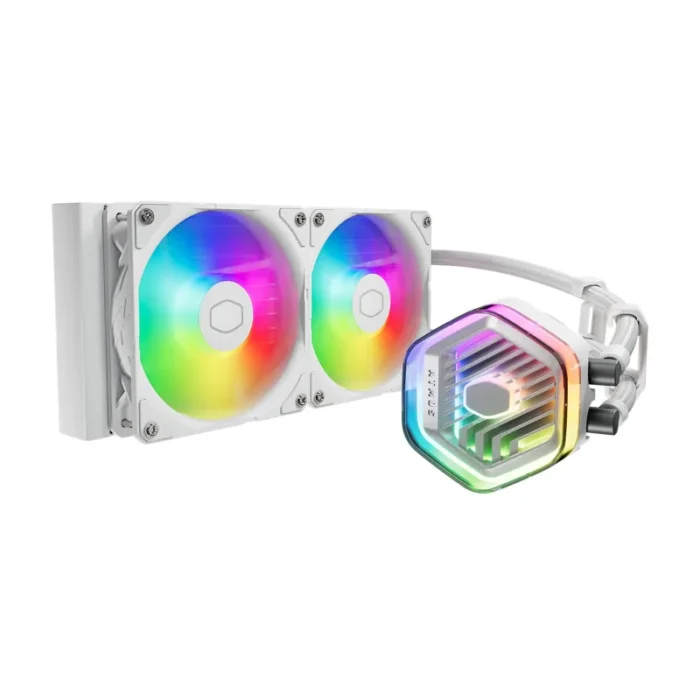

Cooler Master MasterLiquid 240 ATMOS White Processor Liquid cooling kit 12 cm 1 pc(s)
- Exceptional silence
- Optimized user experience
- Fully customizable
- Eco-friendly construction
- Refined dual chamber design
360 Degrees of Cool
360 Degrees of Cool
The next generation AIO liquid cooling is here with the MasterLiquid 240 Atmos. The Atmos is our forward-thinking, innovative take on what an AIO cooler can and should be. Exceptionally silent performance provided by our SickleFlow Edge fans. An optimized user experience from unboxing to the MasterCTRL software. A pump top cover fully customizable with your own 3D-printed creations. Eco-friendly construction implemented throughout. Our signature dual chamber pump design, refined. The Atmos represents the best of the best in modern AIO liquid cooling, a full 360 degrees of cool.
Refined dual chamber design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.
IMPROVED QUALITY
Fully automated production and assembly of the pump with fully recorded production history.
Fully customizable
Customize the pump top cover with your 3D designs and take full control of the ARGB Gen 2 lighting. The Atmos provides unprecented creative freedom.
Eco-friendly construction
The pump top cover has been constructed from recycled plastic materials, while 35% of the cooler’s metal materials are recyclable. Along with sustainable packaging materials and a 30% reduction in total packaging size, the Atmos is an eco-pioneer.
Latest Sickleflow Edge 120 fans
Pre-installed SickleFlow Edge 120mm fans further improve cooling performance and simplify user installation.
Optimized user experience
With features such as our streamlined MasterCTRL software and modernized packaging techniques, the Atmos is bringing a overhauled, and smoother, user experience.
FULLY CUSTOMIZABLE
Customize the pump top cover with your 3D designs and take full control of the ARGB Gen 2 lighting. The Atmos provides uprecedented creative freedom.
Tube clips included
Tube clips are included to improve and strengthen your cooler setup.
| Performance | |
|---|---|
| Fan’s mean time to failure (MTTF) | 160000 h |
| Pump’s mean time to failure (MTTF) | 210000 h |
| Quantity per pack | 1 pc(s) |
| Pump connector | 4-pin |
| Pump noise level | 25 dB |
| Fan noise level (max) | 27.2 dB |
| Bearing type | Loop Dynamic Bearing (LDB) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 3.61 mmH2O |
| Airflow | 120 m³/h |
| Maximum airflow | 70.7 cfm |
| Rotational speed (max) | 2500 RPM |
| Rotational speed (min) | 690 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Fan diameter | 12 cm |
| Type | Liquid cooling kit |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminum |
| Product colour | White |
| Power | |
|---|---|
| Safety current | 0.3 Ah |
| Pump voltage | 12 V |
| Rated current | 0.2 A |
| Pump power consumption | 3.84 W |
| Rated voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Package weight | 2.53 kg |
| Package height | 136 mm |
| Package depth | 293 mm |
| Package width | 211 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 1.45 kg |
| Pump height | 5.32 cm |
| Pump depth | 8.49 cm |
| Pump width | 8.1 cm |
| Radiator height | 2.72 cm |
| Radiator depth | 27.7 cm |
| Radiator width | 12 cm |
| General | |
|---|---|
| Product family | MasterLiquid |
