CHERRY SecureBoard 1.0
- Intelligent security keyboard with integrated reader for smart cards and cards/tags with RF/NFC interface
- Secure mode with authentication and encryption, especially with thin clients
- PC/SC smart card reader, CCID compatible
- Protocols: T=0, T=1, T=CL
- Read/write with ISO 7816 and ISO 14443 A/B compliant cards
- Read/write with FIDO2 NFC Token
- Flat design, low smart card contacting unit
- Satisfies FIPS-201 requirements
- DE version with DIN/GS compliant layout and meets with BGI-650 ergonomics guide
- Standard drivers for Windows and Linux
- One-handed operation of smart card module
- Awarded the “Blue Angel” environmental seal

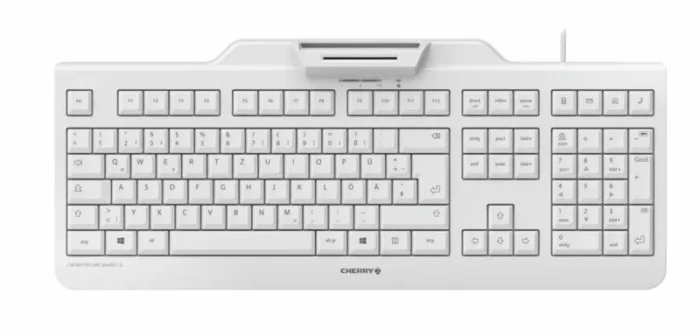

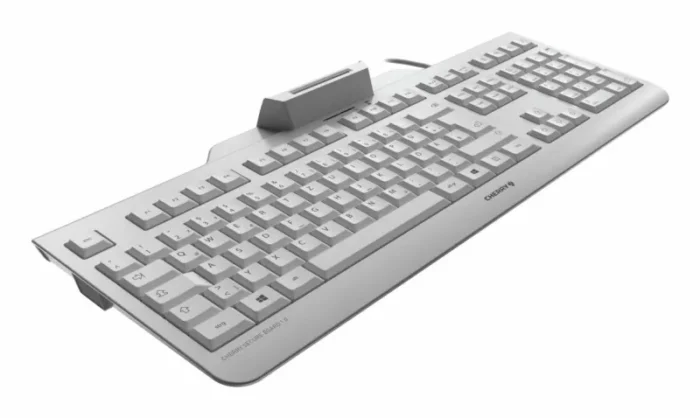

The SECURE BOARD 1.0 is an ergonomic keyboard with an integrated reader for smart cards and cards/tags with an RF/NFC interface. For added security and confidentiality, the keyboard can be switched to a secure mode. Now the device can authenticate itself with a certificate and the key transmission is encrypted. This renders hardware key loggers useless and because the standard keyboard channel is locked, BadUSB attacks cannot be carried out on it. Thin clients that have the necessary software integrated are particularly suitable for using these functions.
| Keyboard | |
|---|---|
| Key travel distance | 3 mm |
| Number of hot keys | 4 |
| Hot keys | Yes |
| Windows keys | Yes |
| Keyboard keys operating life | 10 million characters |
| Keycaps material | Acrylonitrile butadiene styrene (ABS) |
| Numeric keypad | Yes |
| Keyboard form factor | Full-size (100%) |
| Pointing device | No |
| Keyboard language | Nordic |
| Keyboard layout | QWERTY |
| Device interface | USB |
| Connectivity technology | Wired |
| Recommended usage | Office |
| Design | |
|---|---|
| LED indicators | Yes |
| Surface coloration | Monochromatic |
| Product colour | White |
| Adjustable keyboard height | Yes |
| Ergonomic design | Yes |
| Backlight | No |
| Features | |
|---|---|
| Cable length | 1.8 m |
| USB connector type | USB Type-A |
| Power | |
|---|---|
| Power source type | USB |
| Mouse | |
|---|---|
| Mouse included | No |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista x64, Windows XP |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 – 65 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | Blue Angel |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA, VCCI |
| Weight & dimensions | |
|---|---|
| Keyboard weight | 840 g |
| Keyboard dimensions (WxDxH) | 458 x 188 x 46 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of products included | 1 pc(s) |
