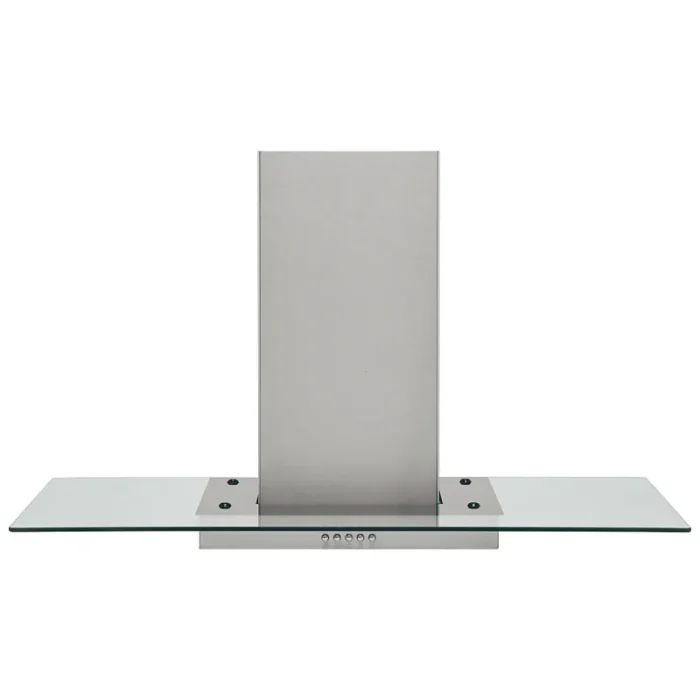

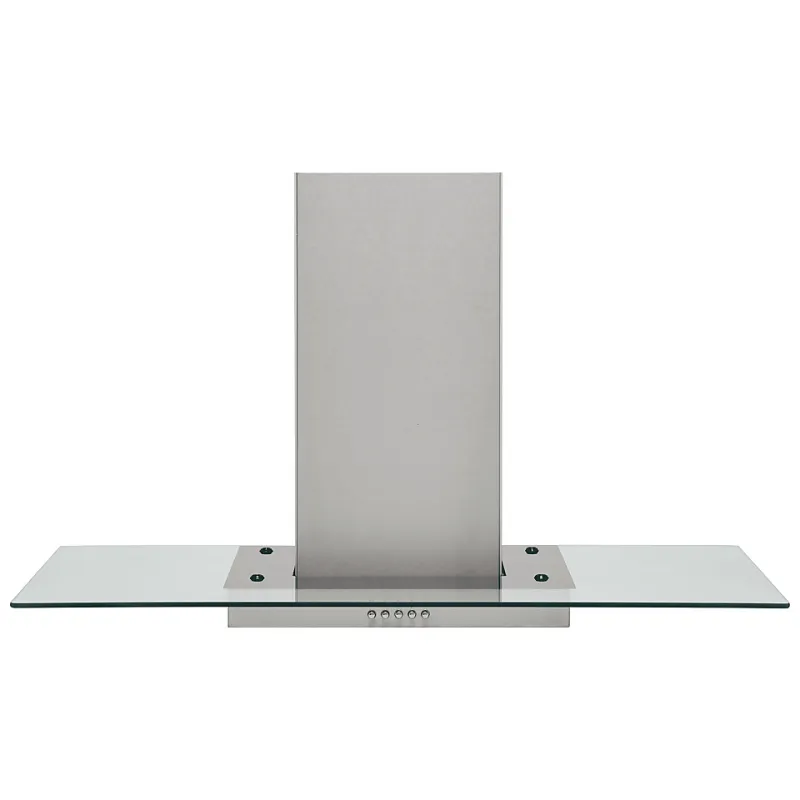

CDA ECN92SS Flat glass extractor
The ECN92SS is a stylish flat glass extractor in stainless steel. It has 3 speeds, push button control and built in LED lights to provide good illumination.
Features
- Ducted/re-circulating installation
- 3 speeds
- Type of grease filter: Aluminium grease filter
Optional Accessories
- Ducting kit code: 120mm, AED 51/53/54
Technical Specification
- Required height over gas hobs: 700 mm (min)
- Required height over electric hobs: 600 mm (min)
- Power supply: 3 A
- Mains lead length: 1 m
- Mains lead rating: H05VV-F m
- Protection class: Class I
- Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
Extraction Rates And Noise
- Noise level: 60 dBA
- Extraction rate: 391 m3/hr
- Extraction rate at first speed: 218 m³/hr
- Extraction rate at second speed: 302 m³/hr
- Extraction rate at third speed: 391 m³/hr
- Noise level at first speed: 50 dBA
- Noise level at second speed: 58 dBA
- Noise level at third speed: 60 dBA
Filters
- Charcoal filters: CHA12 (pack of 1)
- Number of layers: 4
- Number of grease filters: 1
- Number of charcoal filters (optional): 1
Fitting Notes
- Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor
Misc Information
- WEEE Category: 01
