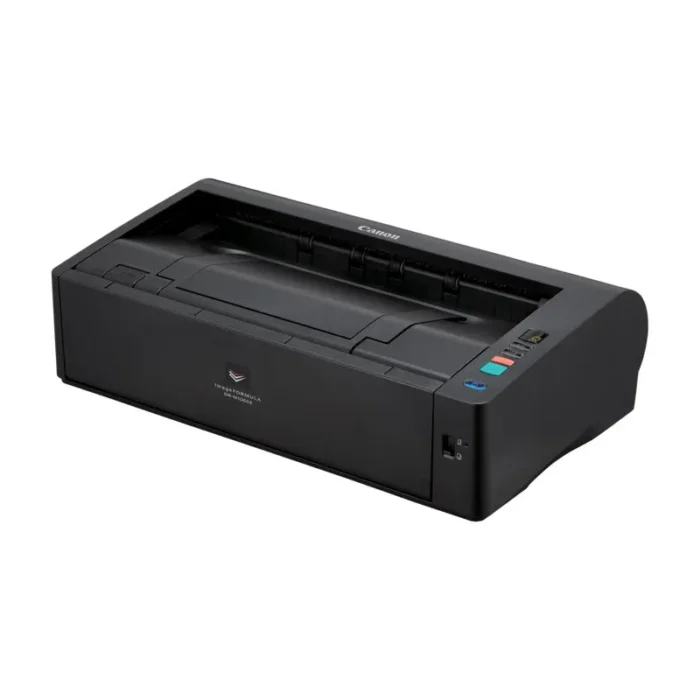

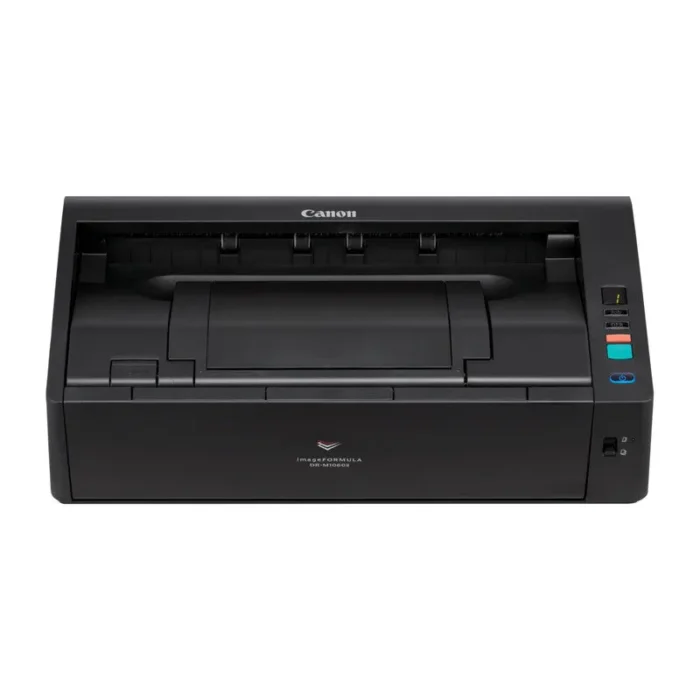

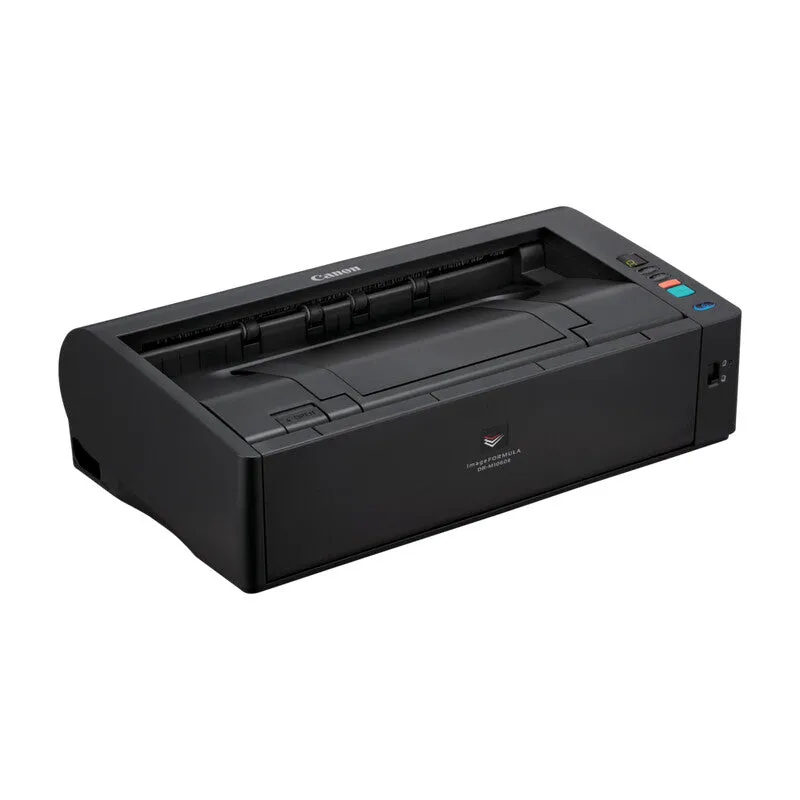

Canon imageFORMULA DR-M1060II Sheet-fed scanner 600 x 600 DPI A3 Black
- Scanner type: Sheet-fed scanner 600 x 600 DPI
- Duplex scanning
- A3 Scanning media types supported: Business Card, Plastic Card
- Sensor type: CIS
- USB port
- Power supply type: AC 32.5 W
A uniquely compact, eco-friendly and reliable A3 desktop scanner that helps creating smooth workflows and capturing multiple document types and formats.
Superior efficiency from a uniquely compact A3 scanner
Enjoy quick and effortless scanning with the high-speed, high-quality imageFORMULA DR-M1060II. Save time with easy maintenance and deliver enhanced sustainability via a compact device.
Optimise productivity
Boost document workflows with the ultra-fast duplex scanning speeds of up to 120ipm, the 80-sheet automatic document feeder and the advanced image processing features
Reliable and versatile scanning
Scan a variety of documents, including ID embossed/plastic cards and up to 3m long documents, and choose between the U-turn Paper Path and Straight Path feeding mechanisms
High-quality documents
Enhance image quality and consistency with the high-performance image processing features like the Advanced Text Enhancement, Auto Colour Detection, Auto Size and Deskew Correction, Text Orientation Correction and Customised Colour Dropout
Reduced environmental impact
Minimise your environmental impact using energy-efficient device made from more than 20% recycled materials and with environmentally friendly packaging
| Scanning | |
|---|---|
| Output greyscale depth | 8 bit |
| Output colour depth | 24 bit |
| Duplex scanning | Yes |
| Optical scanning resolution | 600 x 600 DPI |
| Design | |
|---|---|
| Product colour | Black |
| Built-in display | No |
| Scanner type | Sheet-fed scanner |
| Performance | |
|---|---|
| Daily duty cycle (max) | 13000 pages |
| Light source | RGB LED |
| Sensor type | CIS |
| Paper handling | |
|---|---|
| Maximum scan length | 3 m |
| Maximum scan width | 30 cm |
| Media thickness (min) | 0.04 mm |
| Long-paper mode | Yes |
| Scanning media types supported | Business Card, Plastic Card |
| Maximum ISO A-series paper size | A3 |
| Ports & interfaces | |
|---|---|
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB port | Yes |
| Power | |
|---|---|
| Power consumption (sleep) | 1.9 W |
| Input voltage | 100 – 240 V |
| Sleep mode | Yes |
| AC input frequency | 50/60 Hz |
| Power supply type | AC |
| Power consumption (typical) | 32.5 W |
| Weight & dimensions | |
|---|---|
| Folded height | 12 cm |
| Folded depth | 24.6 cm |
| Folded width | 42.4 cm |
| Weight | 6.1 kg |
| Height | 210 mm |
| Depth | 440 mm |
| Width | 424 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Operating temperature (T-T) | 10 – 32.5 °C |
