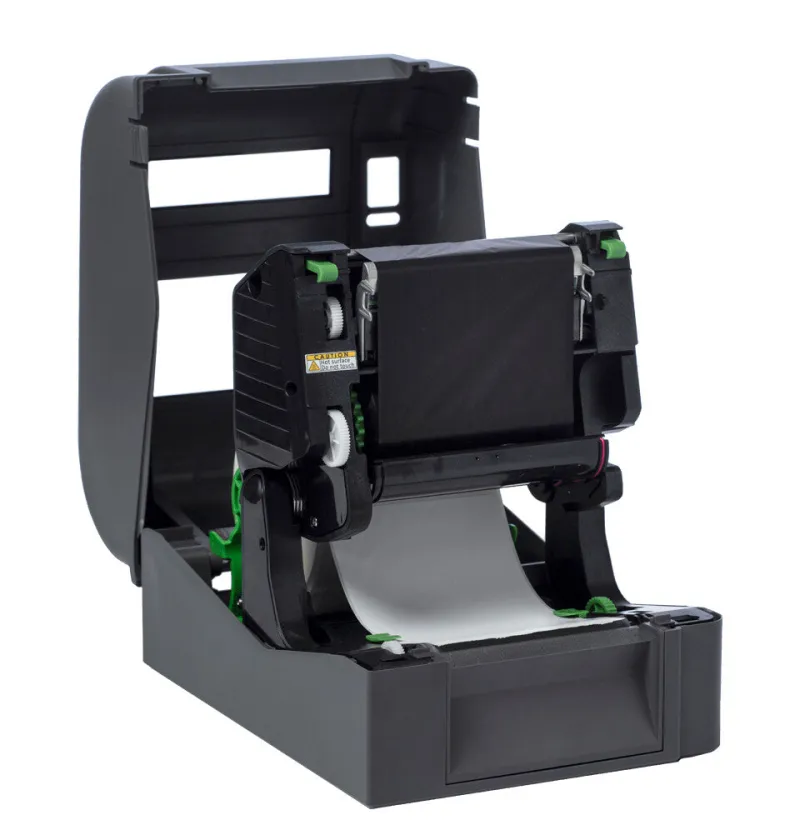

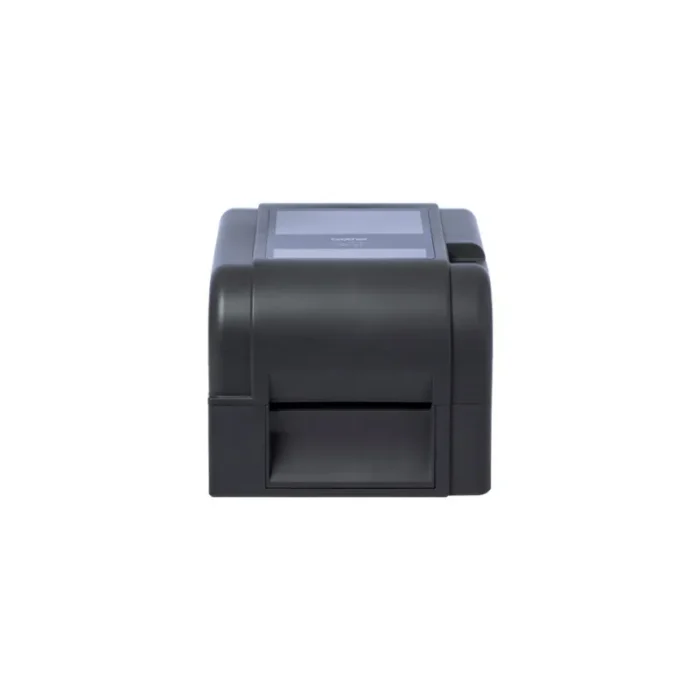

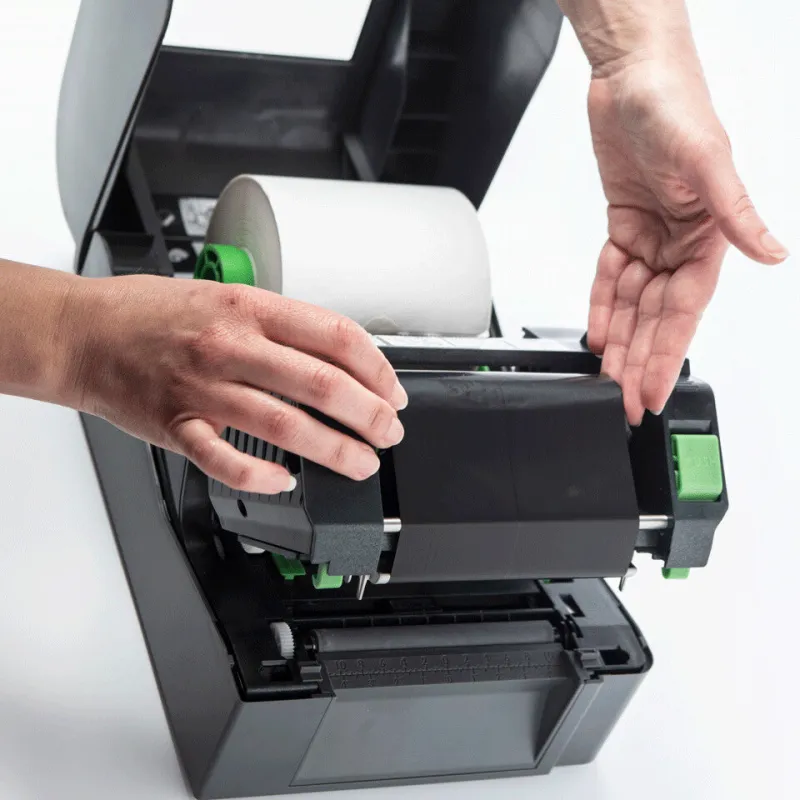

Brother TD-4420TN label printer Direct thermal / Thermal transfer 203 x 203 DPI 152 mm/sec Wired Ethernet LAN
- Direct thermal / Thermal transfer
- 203 x 203 DPI
- Print speed: 152 mm/sec
- Connectivity technology: Wired
- USB port Ethernet LAN
- 2.5 kg
Brother’s TD-4420TN Thermal Transfer Label and Receipt printer provides the media flexibility, longevity and cost efficiency required for high volume printing at 203dpi resolution. This versatile device is ready to print on a wide range of media for barcodes, receipts and labels along with easy integration with the applications and database systems you rely on with ZPLII emulation, SAP & Bartender compatibility. Supporting a wide range of media to meet the needs of your operation, whether it’s longevity, abrasion resistance or even colour, the TD-4420TN offers the required flexibility that’s important to your commercial or industrial operation.
| Printing |
| Maximum print length |
25.4 m |
| Maximum print height |
10.8 cm |
| Print speed |
6 lpm |
| Maximum resolution |
203 x 203 DPI |
| Colour |
No |
| Print technology |
Direct thermal / Thermal transfer |
| Paper handling |
| Maximum label width |
11.2 cm |
| Maximum roll diameter |
12.7 cm |
| Core diameter |
2.54 cm |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB 2.0 ports quantity |
2 |
| USB port |
Yes |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired |
| Performance |
| Number of fonts |
8 |
| Flash memory |
128 MB |
| Internal memory |
64 MB |
| Page description languages |
DPL, EPL, ZPL, ZPL II |
| Design |
| Built-in display |
No |
| Product colour |
Black |
| Power |
| AC adapter output current |
2 A |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| System requirements |
| Server operating systems supported |
Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Operational conditions |
| Operating temperature (T-T) |
10 – 90 °C |
| Storage temperature (T-T) |
-40 – 60 °C |
| Storage relative humidity (H-H) |
25 – 85% |
| Operating relative humidity (H-H) |
5 – 40% |
| Weight & dimensions |
| Weight |
2.5 kg |
| Height |
177.5 mm |
| Depth |
280 mm |
| Width |
204 mm |
| Packaging data |
| Package weight |
3.93 kg |
| Quantity per pack |
1 pc(s) |
| Packaging content |
| Warranty card |
Yes |
| Quick start guide |
Yes |
| Software development kit (SDK) |
Yes |
| Starter roll included |
Yes |
| AC adapter included |
Yes |
| Cables included |
AC, USB |
| Logistics data |
| Harmonized System (HS) code |
84433210 |
| Other features |
| Languages support |
Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish |
| Number of languages |
11 |
| LED indicators |
Yes |
