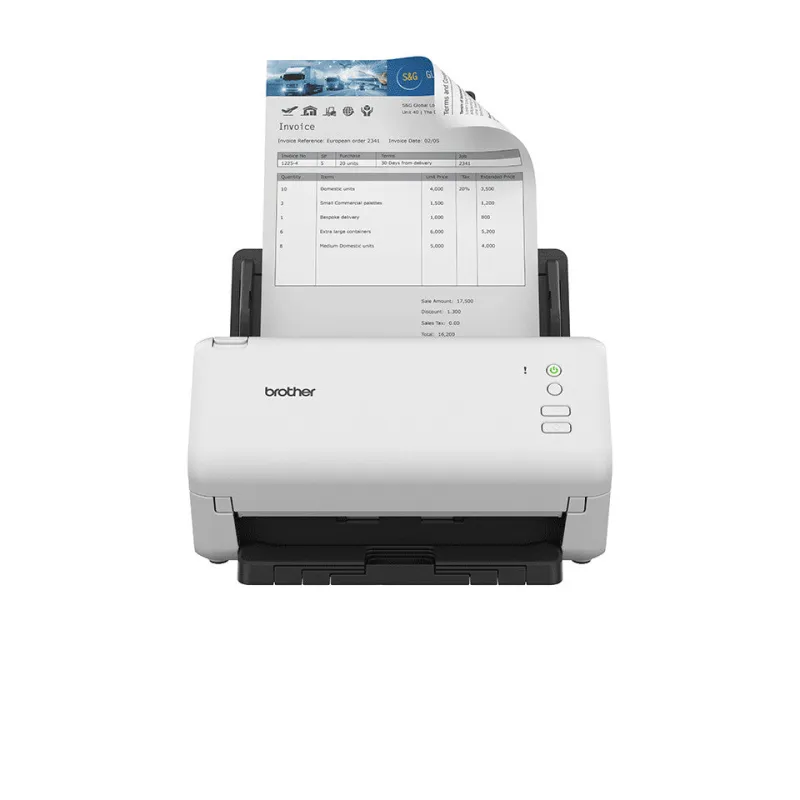

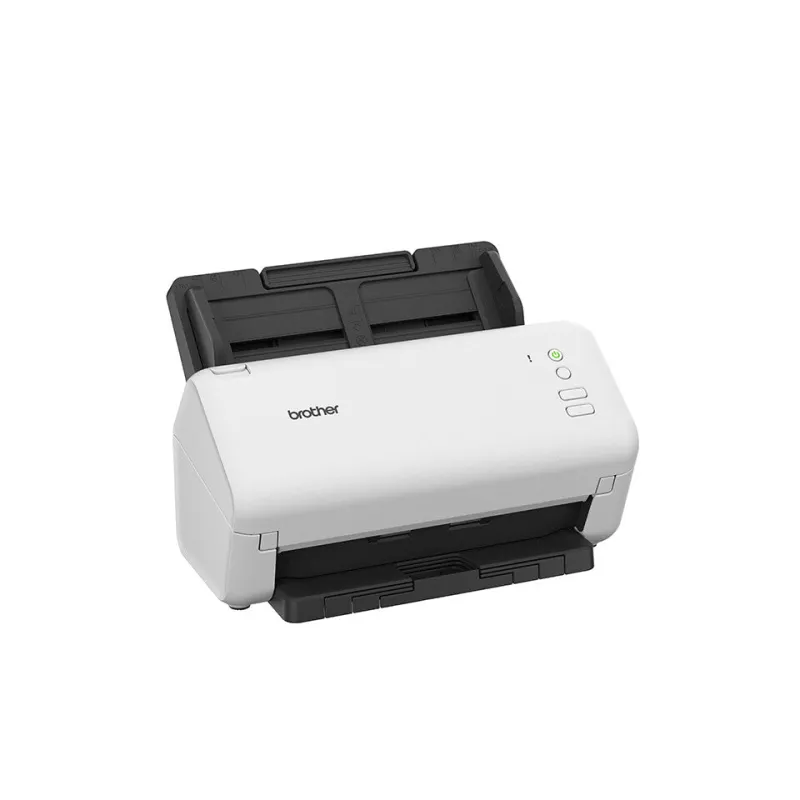

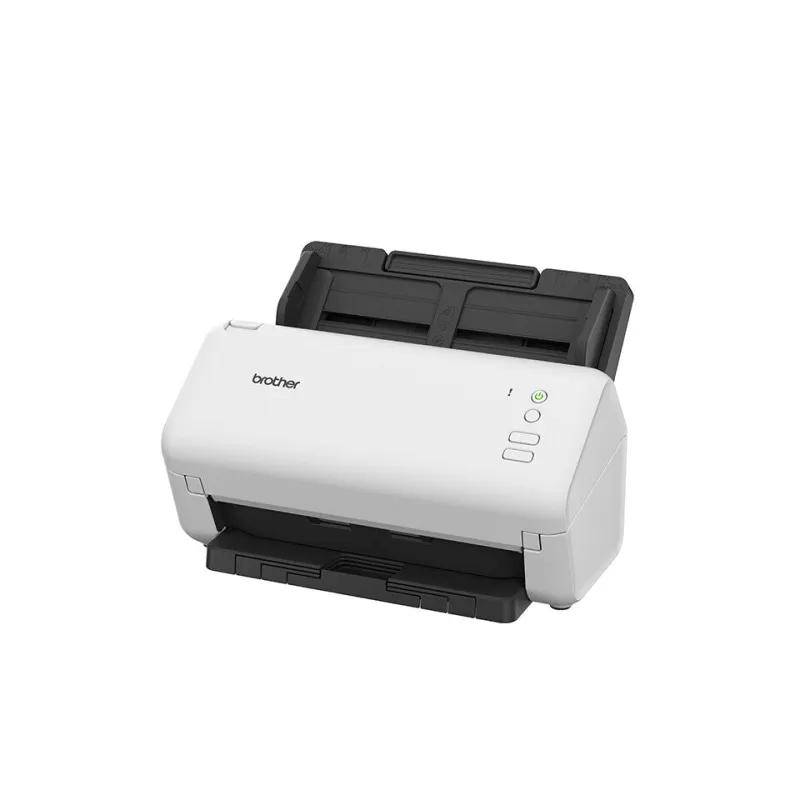

Brother ADS-4100 Desktop document scanner
- Scan up to 35 pages per minute
- 2-sided scan up to 35 pages per minute
- 60 sheet Automatic Document Feeder (ADF)
- SuperSpeed USB3.0
- Scan directly to USB host
- Brother ScanEssentials Lite software
- Advanced image processing
- Driver compatibility with TWAIN (Win and macOS), WIA, ICA, Linux SANE
With simplicity built in. Robust, easy-to-use, every day scanner. Great for digitsing a range of media at home or in the office.
Simple and intuitive. This highly versatile scanner is ideal for businesses that need to digitise a wide range of media, from paper to plastic cards, whether at home or in the office.
Fast and reliable
With high-quality and robust roller mechanisms, the ADS-4100 has a large 60 sheet ADF capacity and can scan up to 35 pages per minute.
Simple and intuitive
Design simplicity means it’s easy to set up and easy to use.
Advanced connectivity
With USB3.0 and USB host, you can securely scan documents without the need for a PC.
Advanced image capture and processing
Effortless and impressive image capture and processing – from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.
Brother ScanEssentials Lite
Our ScanEssentials Lite software enables you to scan documents easily, create simple workflows and save them securely to folders on your network, with minimum effort.
Industry recognised software
Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.
| Scanning | |
|---|---|
| Duplex ADF scan speed (b/w, A4) | 70 ipm |
| Duplex ADF scan speed (colour, A4) | 70 ipm |
| ADF scan speed (colour, A4) | 35 ppm |
| ADF scan speed (b/w, A4) | 35 ppm |
| Greyscale levels | 256 |
| Output greyscale depth | 8 bit |
| Output colour depth | 24 bit |
| Input colour depth | 48 bit |
| Duplex scanning | Yes |
| Colour scanning | Yes |
| Optical scanning resolution | 600 x 600 DPI |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Maximum scan size | 215.9 x 355.6 mm |
| Design | |
|---|---|
| Control type | Buttons |
| Product colour | Black, White |
| Built-in display | No |
| Scanner type | ADF scanner |
| Performance | |
|---|---|
| Scan drivers | ICA, SANE, TWAIN, WIA |
| Scan to | Image, PC, USB |
| Maximum duty cycle | 105000 pages per month |
| Daily duty cycle (max) | 5250 pages |
| Scan file formats | JPEG, PDF, TIFF |
| Light source | LED |
| Sensor type | CIS |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 60 sheets |
| Paper handling | |
|---|---|
| Maximum scan length | 5 m |
| Maximum scan width | 21.6 cm |
| Auto Document Feeder (ADF) media weight | 40 – 200 g/m² |
| Paper tray media weight | 40 – 200 g/m² |
| Card thickness (max) | 1.1 mm |
| Media thickness (min) | 0.08 mm |
| Long-paper mode | Yes |
| Scanning media types supported | Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper |
| Maximum ISO A-series paper size | A4 |
| Ports & interfaces | |
|---|---|
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB port | Yes |
| Power | |
|---|---|
| Output voltage | 24 V |
| Output current | 1.9 A |
| Power consumption (sleep) | 1.4 W |
| AC input frequency | 50 – 60 Hz |
| Power consumption (off) | 0.1 W |
| Power consumption (standby) | 5.4 W |
| Power supply type | AC |
| Power consumption (typical) | 23 W |
| Weight & dimensions | |
|---|---|
| Weight | 2.6 kg |
| Height | 190.5 mm |
| Depth | 215.9 mm |
| Width | 299.5 mm |
| Packaging data | |
|---|---|
| Package weight | 3.31 kg |
| Package height | 320 mm |
| Package depth | 243 mm |
| Package width | 391 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Cables included | AC, USB |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mac operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 5 – 35 °C |
| Other features | |
|---|---|
| Certification | GS Mark, WHQL |
| Compliance certificates | RoHS |
| Cable lock slot | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84716070 |
