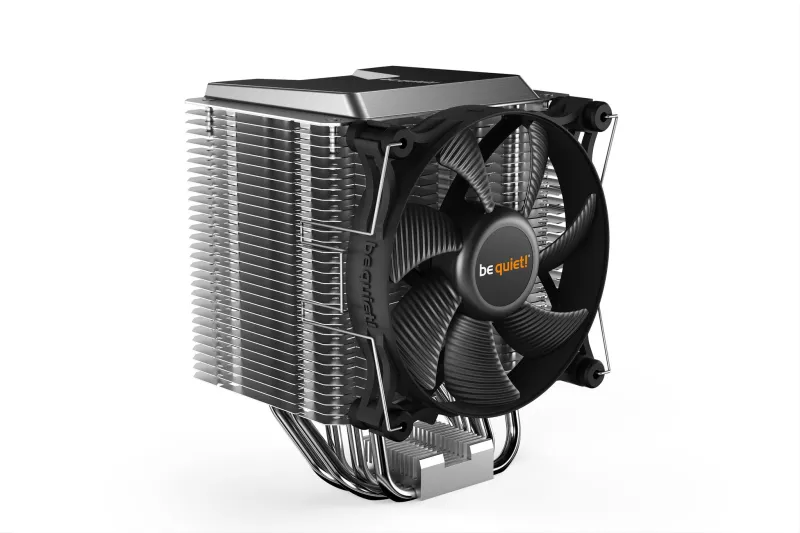

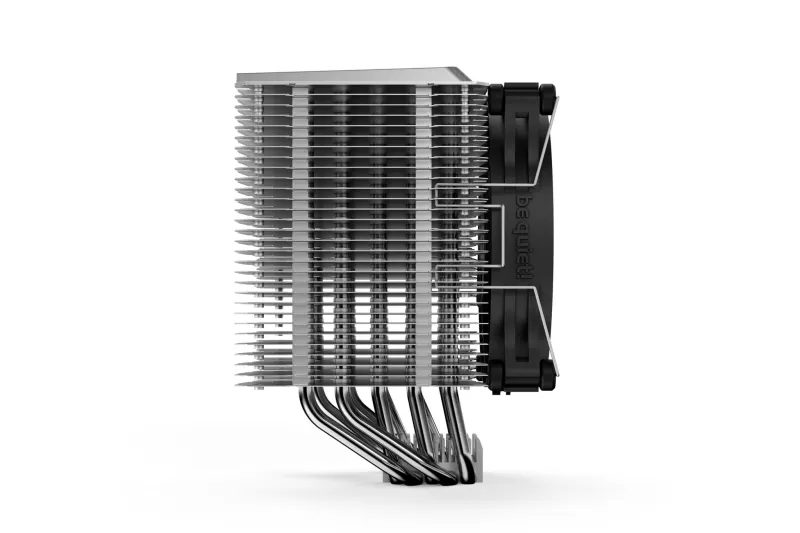

be quiet! Shadow Rock 3 CPU Cooler, Single 120mm PWM Fan, For Intel Socket:1700/1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM, For AMD Socket: AM4 / AM3(+), 190W TDP, 163mm Height
- Impressive cooling performance of 190W TDP
- Five 6mm high-performance nickel-plated copper heat pipes
- With HDT technology the heat is absorbed directly by the heat pipes
- Decoupled silent Shadow Wings 2 120mm PWM high-speed fan
- Emits only 24.4dB(A) at maximum fan speed

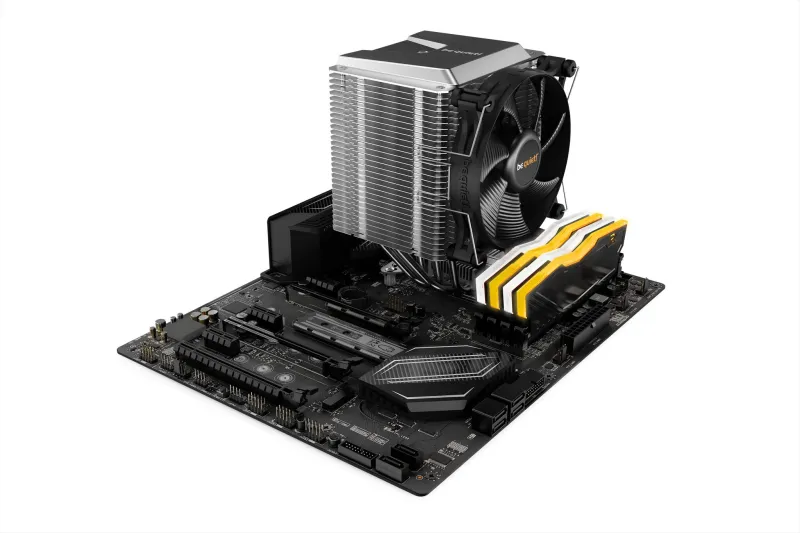

- Asymmetrical construction avoids blocking memory slots in front of the cooler
- Elegant brushed aluminum top cover with bi-color surface
- Easily installable installation kit that can be mounted from above
- Product conception, design and quality control in Germany
The be quiet! Shadow Rock 3 offers an impressive cooling performance of 190W TDP and silent operation. It is the perfect choice for design-oriented consumers who need performance beyond the standard for a good price.
| Performance |
| Bearing type |
Rifle bearing |
| Noise level (high speed) |
24.4 dB |
| Noise level (low speed) |
11.5 dB |
| Rotational speed (max) |
1600 RPM |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Fan diameter |
12 cm |
| Type |
Cooler |
| Suitable location |
Processor |
| Design |
| Fan connector |
4-pin |
| Number of heat pipes |
5 |
| Fins material |
Aluminium |
| Number of fins |
30 |
| Number of fans |
1 fan(s) |
| Base plate material |
Copper |
| Product colour |
Black, Grey |
| Power |
| Thermal Design Power (TDP) |
190 W |
| Rated current |
0.2 A |
| Rated voltage |
12 V |
| Power supply |
2.4 W |
| Weight & dimensions |
| Package weight |
1.18 kg |
| Package height |
200 mm |
| Package depth |
161 mm |
| Package width |
145 mm |
| Cable length |
0.22 m |
| Heat pipes diameter |
6 mm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Weight |
710 g |
| Height |
163 mm |
| Depth |
121 mm |
| Width |
130 mm |
| Packaging content |
| Mounting kit |
Yes |
| Other features |
| Mean time to failure (MTTF) |
80000 h |
| Heatsink dimensions (W x D x H) |
130 x 96 x 163 mm |
| Thermal grease |
Yes |
| Number of fans supported |
1 |
| Logistics data |
| Master (outer) case gross weight |
15 kg |
| Master (outer) case height |
420 mm |
| Master (outer) case length |
451 mm |
| Master (outer) case width |
335 mm |
| Products per pallet |
12 pc(s) |
| Harmonized System (HS) code |
84733080 |
