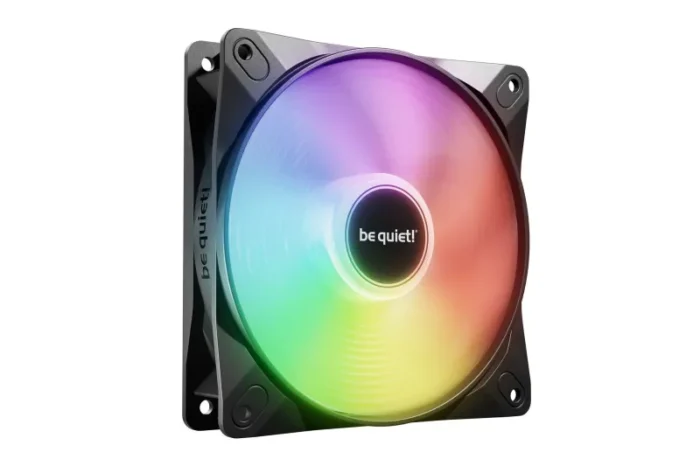

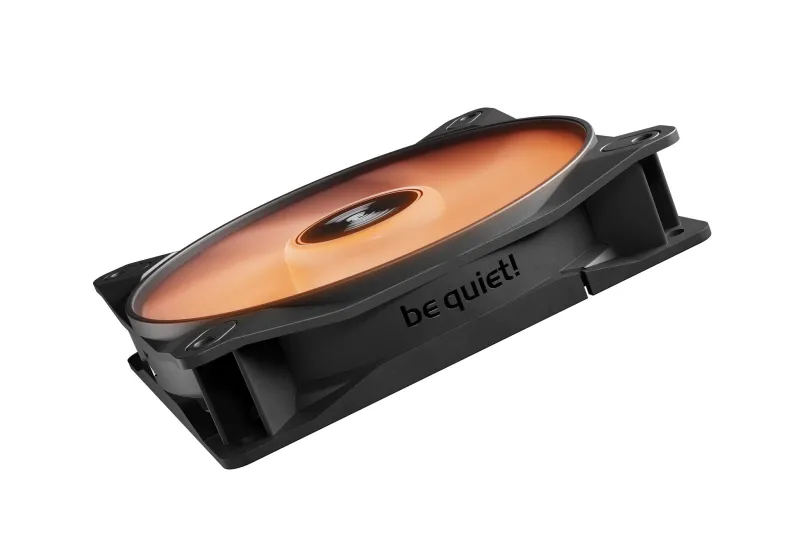

be quiet! LIGHT WINGS LX 120mm PWM Computer case Fan 12 cm Black 1 pc(s)
- Illuminated hub and frosted fan blades for unmistakable lighting effects that visually
- upgrade every PC system
- Multiple colors and modes for an individual look thanks to 16 LEDs
- 7 optimized fan blades with perfect angle for extraordinary air pressure
- ARGB connection cable with daisy chain option
- Low starting rpm for very quiet operation
- Long life rifle-bearing gives an operating lifetime of 60,000 hours
Great performance and impressive lighting
The Light Wings LX 120mm PWM boasts optimized fan blades and an illuminated impeller for great performance and lighting.

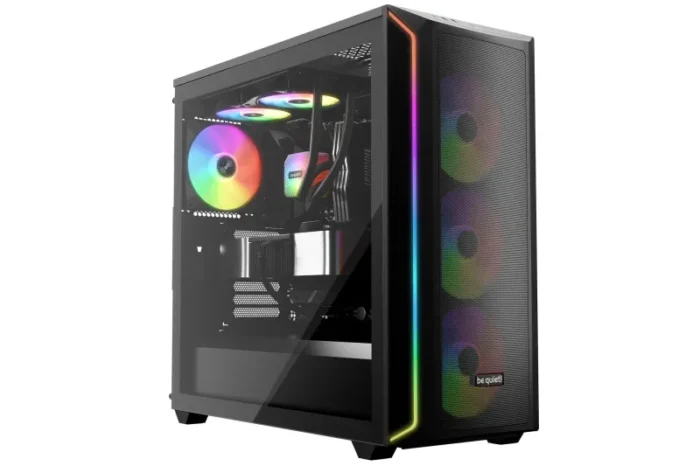

SHOW WHAT YOU GOT
A fan made for show cases
Light Wings LX 120mm PWM undeniably upgrades all kind of PC cases with its spectacular lighting. Especially show cases with an emphasis on ARGB illumination benefit from this fan. Add a bunch of them to your showcase and let friends and family gaze in awe.
IMPRESSIVE LIGHTING
Lots of illumination possibilities
16 LEDs are located inside the hub of the impeller of the Light Wings LX 120mm PWM and shine outwards onto the frosted fan blades. This creates an unmistakable look and enables you to express your creativity.
YOUR CASE FAN OF CHOICE
Optimized fan blades and frame
Light Wings LX 120mm PWM features a fan frame outlet that minimizes air leaks. In addition, the fan blades are optimized for maximum airflow, making this fan the best-in-class choice for virtually any case configuration.
DAISY CHAIN IT!
One connector for all your Light Wings LX fans
The ARGB connection cable comes with an input and an output connector. The input can be used to connect the fan to your motherboard or to an ARGB controller, but also to daisy-chain it with the output connector of other Light Wings LX fans.
RIFLE BEARING TECHNOLOGY
Makes Light Wings LX a long-lasting companion
Light Wings LX 120mm PWM is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 60,000 hours.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
| Quantity per pack | 1 pc(s) |
| Bearing type | Rifle bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 1.34 mmH2O |
| Airflow | 87.5 m³/h |
| Maximum airflow | 51.5 cfm |
| Noise level (high speed) | 25.5 dB |
| Rotational speed (max) | 1600 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| LED connector type | 3-pin |
| Number of LEDs | 16 |
| Illumination LED | Yes |
| Number of fan blades | 7 |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Maximum current | 0.32 A |
| Fan current | 0.1 A |
| Fan power consumption | 3.8 W |
| Rated voltage | 12 V |
| Voltage | 5 – 13.2 V |
| Weight & dimensions | |
|---|---|
| Package weight | 170 g |
| Package height | 27 mm |
| Package depth | 164 mm |
| Package width | 122 mm |
| Cable length | 0.5 m |
| Fan weight | 133 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS, UKCA, WEEE |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Shipping (inner) case gross weight | 10.8 kg |
| Shipping (inner) case height | 29 cm |
| Shipping (inner) case length | 43.3 cm |
| Shipping (inner) case width | 31.9 cm |
| Products per shipping (inner) case | 60 pc(s) |
