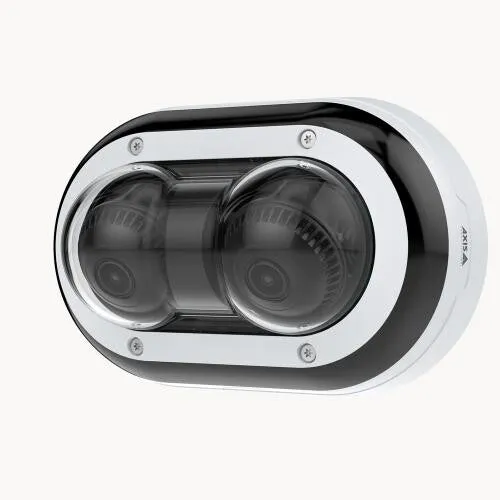

Axis P4708-PLVE IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall
- 2x4K, multidirectional camera, with one IP address
- Support for AI analytics
- 360° IR illumination and 2.5x zoom
- Axis Lightfinder and Forensic WDR
- Axis Edge Vault safeguards the device
Compact in design, this dual-sensor, multidirectional camera offers two 8MP channels and a frame rate of 30 fps to deliver excellent wide-angle overviews and zoomed-in detailed coverage 24/7 – even in challenging light conditions.
See it all – 24/7
Featuring 360° IR illumination with individually controllable LEDs, this panoramic camera delivers clear images even in low light or complete darkness as well as undistorted colors during the day. And Lightfinder and Forensic WDR, ensure sharp, clear images in challenging or poor light conditions. With two 4K channels and a frame rate of 30 fps, you can capture both wide-angle and zoomed-in, detailed views. And, thanks to 2.5x zoom, it delivers wide views, and you can zoom in for all the details. Furthermore, audio input makes it possible to add audio capabilities.
Brilliant design
This compact, multidirectional camera is perfect when you need to see in two directions simultaneously. It offers flexible positioning of both varifocal camera heads, and you can control each head individually allowing you to monitor scenes in two directions in wide or zoomed-in views. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together. This is the perfect setup for straight hallways or at the corners of an intersection where it can look in both directions simultaneously. In addition, this IP66- and IP67-rated device includes a weather and sun shield, so image quality isn’t impacted by sun reflections or water drops.
Support for AI analytics
Built on ARTPEC-8, this high-performance, AI-based camera enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, AXIS P4708-PLVE can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs. In addition, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Secure and cost-efficient
AXIS P4708-PLVE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. With two camera heads in one camera, this panoramic camera offers cost-effective installation. And, thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine tuning. Furthermore, Zipstream with H.264/ H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Plus, with storage profile enabled, you’ll enjoy the optimal level of Zipstream for your video storage—regardless of your VMS.
Performance | |
---|---|
Processor model | ARTPEC-8 |
Built-in processor | Yes |
Remote viewing | Yes |
Day/night mode | Yes |
Wide Dynamic Range (WDR) | Yes |
Connectivity technology | Wired |
Placement supported | Indoor & outdoor |
Type | IP security camera |
Design | |
---|---|
IK code | IK10 |
International Protection (IP) code | IP66, IP67 |
Housing material | Aluminium, Plastic, Polycarbonate (PC) |
Product colour | Black, Silver |
Mounting type | Ceiling/wall |
Camera | |
---|---|
Camera shutter speed | 1/16000 s |
Camera shutter type | Electronic |
Pan range | -110 – 110° |
Tilt angle range | -75 – 75° |
Angle of rotation | 240° |
Minimum illumination | 0 lx |
Camera tilt control | Yes |
Camera pan control | Yes |
Panoramic camera | |
---|---|
Sensor type (panoramic camera) | CMOS |
Image sensor | |
---|---|
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8″) |
Number of sensors | 2 |
Sensor type | CMOS |
Lens system | |
---|---|
Closest focusing distance | 0.5 m |
Identify distance (tele) | 22 m |
Detect distance (wide) | 87.8 m |
Detect distance (tele) | 220.1 m |
Observe distance (wide) | 34.8 m |
Observe distance (tele) | 87.3 m |
Recognize distance (wide) | 17.6 m |
Recognize distance (tele) | 44 m |
Identify distance (wide) | 8.8 m |
Maximum aperture number | 1.9 |
Minimum aperture number | 3.2 |
Auto focus | Yes |
Focal length range | 3.2 – 8.1 mm |
Zoom capability | Yes |
Number of lenses | 2 |
Night vision | |
---|---|
Infra-red wavelength | 850 nm |
LED type | IR |
Night vision | Yes |
Video | |
---|---|
Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
Gain control type | Auto |
Noise reduction technology | 2D noise reduction, 3D noise reduction |
Noise reduction | Yes |
Video streaming | Yes |
Frame rate | 30 fps |
Video compression formats | H.264, H.265, M-JPEG |
Total megapixels | 8 MP |
Maximum resolution | 3840 x 2160 pixels |
Audio | |
---|---|
Signal-to-Noise Ratio (SNR) | 55 dB |
Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, PCM |
Audio system | 2-way |
Network | |
---|---|
Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1 |
Ethernet interface type | Gigabit Ethernet |
Bluetooth | No |
Wi-Fi | No |
Ethernet LAN | Yes |
Storage | |
---|---|
RAM capacity | 4096 MB |
Flash memory | 8192 MB |
Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Card reader integrated | Yes |
Built-in HDD | No |
Ports & interfaces | |
---|---|
Headphone outputs | 1 |
Microphone in | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Security | |
---|---|
Security algorithms | EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS |
Privacy protection | Yes |
Power | |
---|---|
Power consumption (max) | 18.8 W |
Power consumption (typical) | 10.2 W |
Power source type | PoE |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 5 – 95% |
Operating relative humidity (H-H) | 10 – 100% |
Storage temperature (T-T) | -40 – 65 °C |
Operating temperature (T-T) | -30 – 50 °C |
Weight & dimensions | |
---|---|
Weight | 975 g |
Height | 133 mm |
Depth | 127 mm |
Width | 208 mm |
Sustainability | |
---|---|
Compliance certificates | CE, EAC, Federal Communications Commission (FCC), KC, RCM, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL |
Packaging content | |
---|---|
Number of cameras | 1 |
- leaflet
