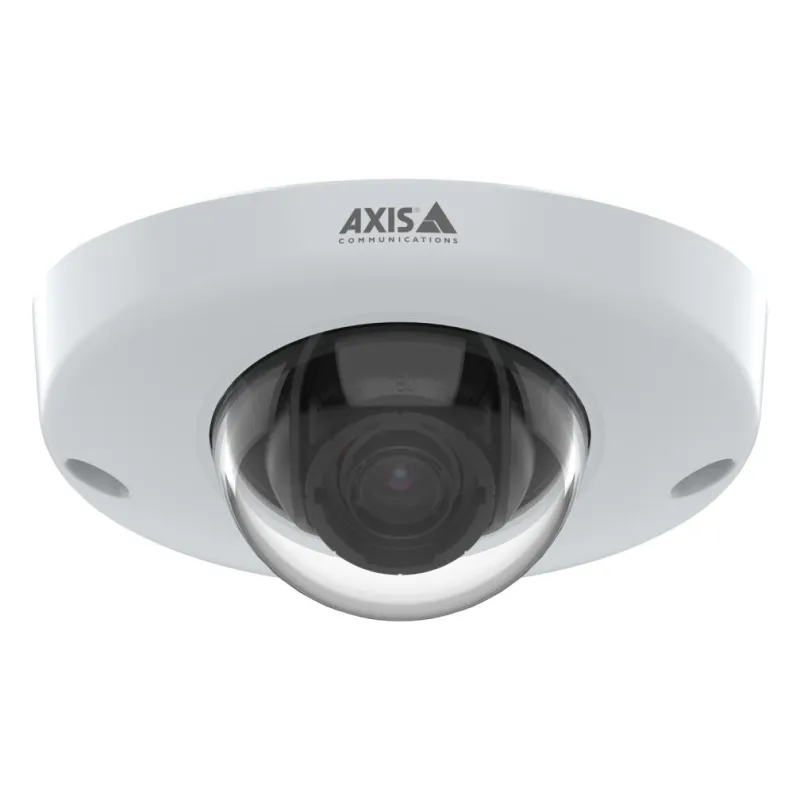

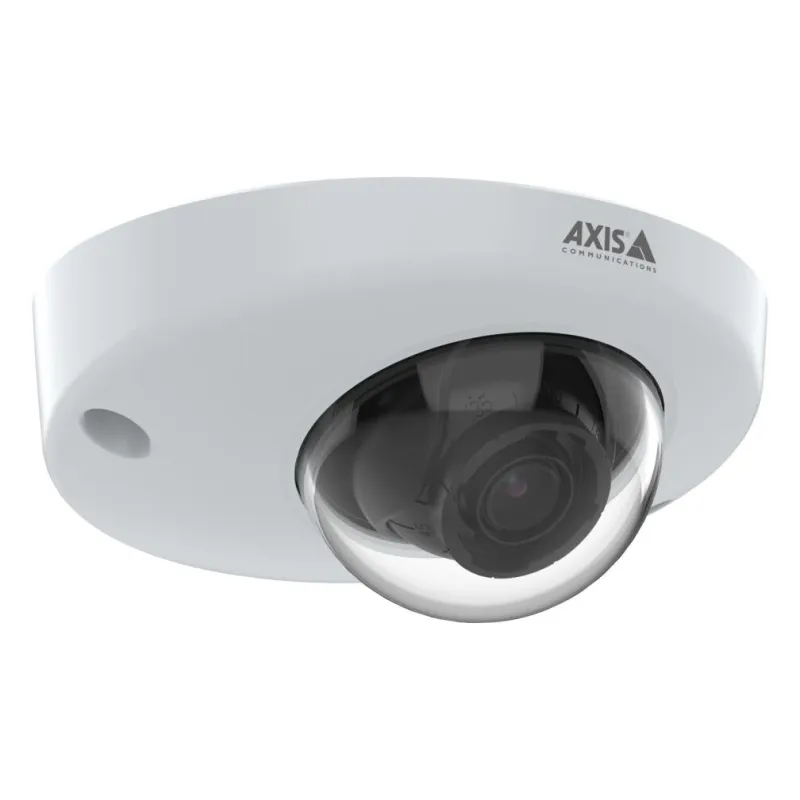

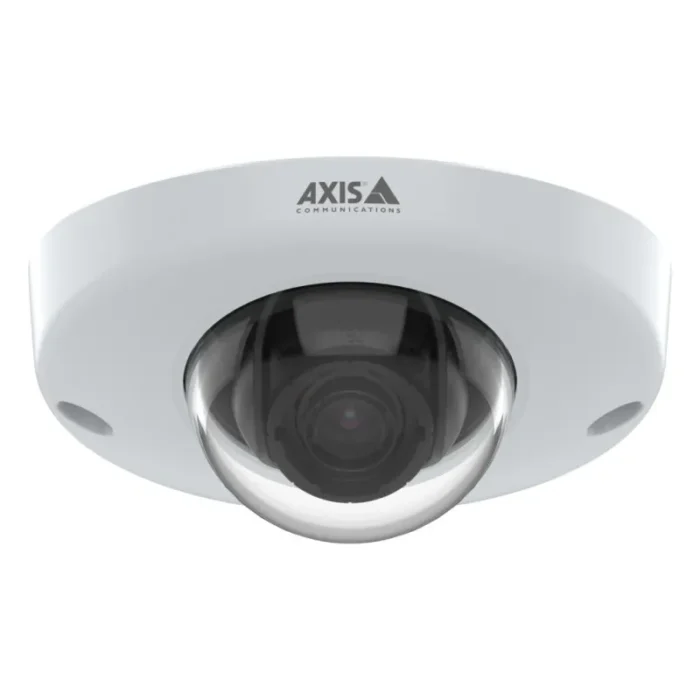

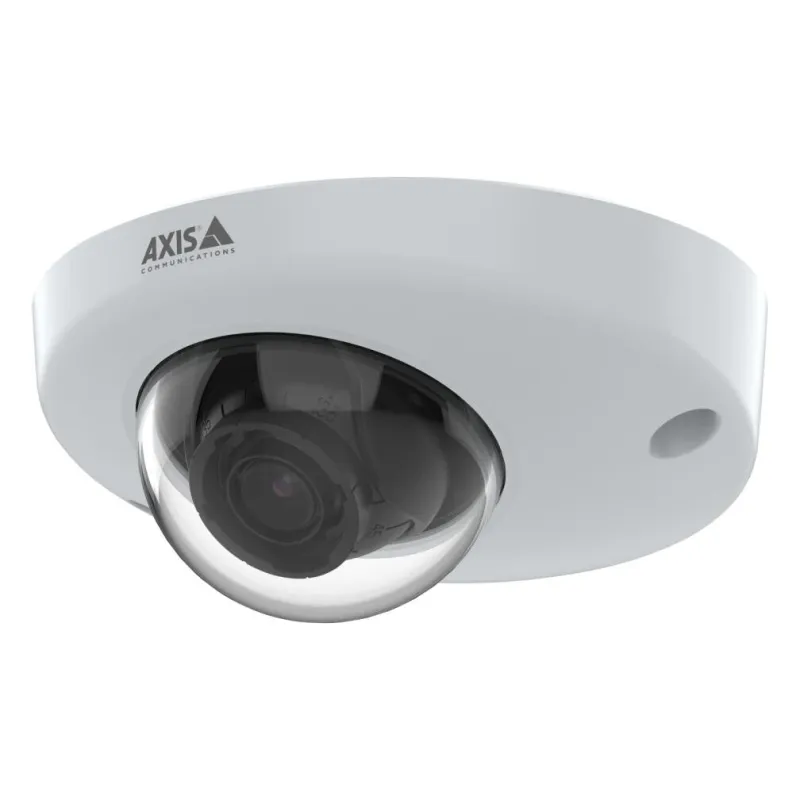

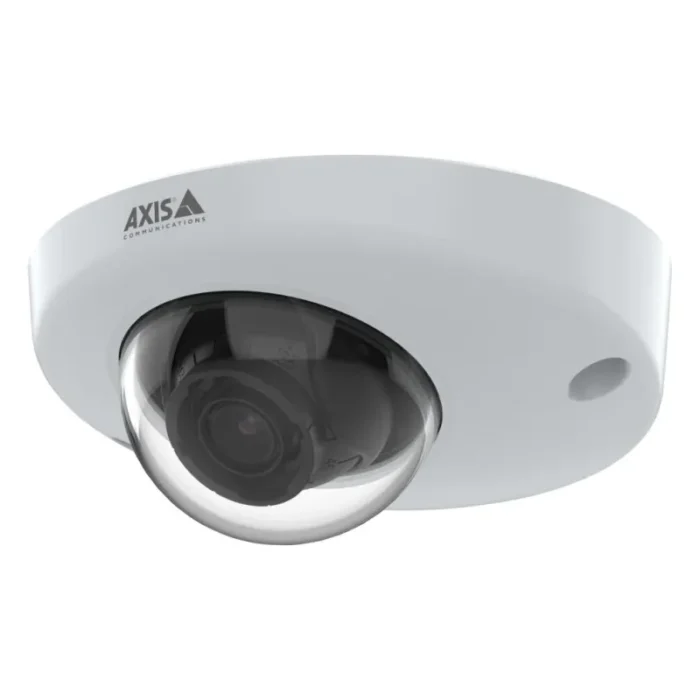

Axis 02501-021 security camera Dome IP security camera Indoor 1920 x 1080 pixels Ceiling
- 88° Horizontal field of view; Compact, rugged design; Lightfinder and Forensic WDR; Traffic Light mode; Zipstream
This compact and discreet 2 MP onboard camera complies with transportation-industry regulations including fire-safety for buses. It can withstand vibrations and a wide range of temperatures. Additionally, with AXIS TP3826-E housing this dome camera can be mounted on the outside of a bus. Thanks to Lightfinder and Forensic WDR, it provides details even in challenging light conditions. And with traffic light mode it can distinguish the color of traffic lights in dark scenes. Optional M12 lenses are available to adjust field of view for customized monitoring purposes.
| Performance | |
|---|---|
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of languages | 18 |
| Processor model | S6LM55 |
| Built-in processor | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Preset points | Yes |
| Tour recording | Yes |
| PTZ modes | Digital PTZ |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Product colour | White |
| Mounting type | Ceiling |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 1/19000 – 1/5 s |
| Pan range | -30 – 30° |
| Tilt angle range | 15 – 90° |
| Lens viewing angle, vertical | 47° |
| Lens viewing angle, horizontal | 88° |
| Angle of rotation | 250° |
| Minimum illumination | 0.04 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9″) |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Closest focusing distance | 0.3 m |
| Maximum aperture number | 2 |
| Lens diameter | 3.6 mm |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Night vision | No |
| Video | |
|---|---|
| Image quality adjustment | Brightness, Contrast, Mirror, Sharpness |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Total megapixels | 2 MP |
| Maximum resolution | 1920 x 1080 pixels |
| Network | |
|---|---|
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSc , HTTP/2, TLSc , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Built-in HDD | No |
| Security | |
|---|---|
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Digest authentication | Yes |
| Security algorithms | 802.1x RADIUS |
| Pixel counter | Yes |
| Password protection | Yes |
| Power | |
|---|---|
| Power consumption (Power over Ethernet (PoE)) | 2.2 W |
| Power consumption (max) | 3.8 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 100% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | -30 – 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 241 g |
| Diameter | 11 cm |
| Height | 50 mm |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | CE, KC, REACH, RoHS, Trade Agreements Act (TAA), UKCA, WEEE |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of cameras | 10 |
| Other features | |
|---|---|
| Doesn’t contain | BFR, PVC |
