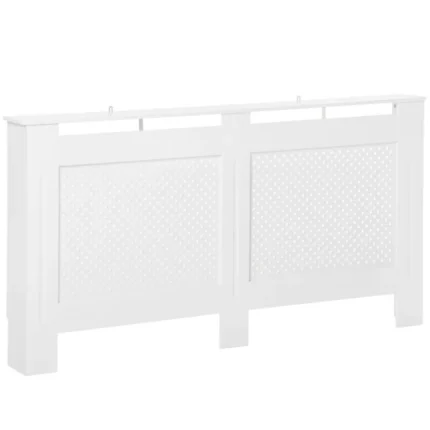

Wooden Radiator Cover Heating Cabinet Modern Home Furniture Grill Style White Painted Large Original price was: £47.99.Current price is: £15.75.
Back to products
Eufy E8213 Black, White Original price was: £182.99.Current price is: £60.90.

Axis 01679-001 video servers/encoder 720 x 576 pixels 30 fps

Original price was: £309.99.Current price is: £103.21.

Compare
Add to wishlist
SKU: US-14993381785982 Category:
Description

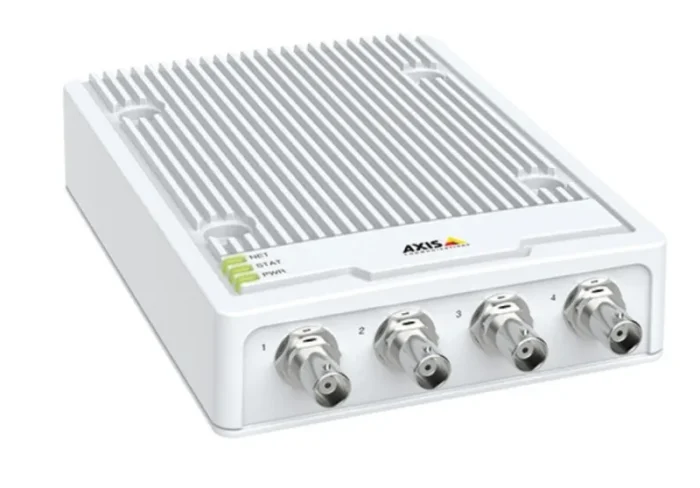

Axis 01679-001 video servers/encoder 720 x 576 pixels 30 fps

  • Extended capacity for analytics; Full frame rate in all resolutions; PoE and PTZ support; Signed firmware and secure boot; Zipstream with support for H.264/H.265

AXIS M7104 is a cost-effective, 4-channel video encoder that adds the benefits of IP surveillance to an analog camera system. It supports standard-resolution analog cameras as well as PTZ control over RS-485/422. The encoder features a memory card slot for edge storage and support for intelligent analytics such as motion detection and active tampering alarm. Enhanced security features such as signed firmware and secure boot ensure the integrity and authenticity of the encoder’s firmware. Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements.

Video
Channels quantity 4 channels
Video compression formats AVC, H.264, H.265, HEVC, MPEG4
NTSC resolutions 720×480 pixels
PAL resolutions 720×576 pixels
Maximum frame rate 30 fps
Maximum video resolution 720 x 576 pixels
Performance
Image settings Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness
PTZ control Yes
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated Yes
Flash memory 512 MB
Internal memory 1024 MB
Design
Certification 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN 62368-1, 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, NIST SP500-267
Wall mountable Yes
LED indicators Status
Product colour White
Network
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T
Quality of Service (QoS) support Yes
Power over Ethernet (PoE) Yes
Networking standards IEEE 802.3af, IEEE 802.3at
Supported network protocols IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Security
Security algorithms HTTPS
Video motion detection Yes
IP address filtering Yes
Active tampering alarm Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
BNC input ports 4
RS-485 ports 2
Power
Power consumption (typical) 4.7 W
Weight & dimensions
Weight 650 g
Height 37 mm
Width 187 mm
Packaging content
Manual Yes
Operational conditions
Operating relative humidity (H-H) 10 – 85%
Storage temperature (T-T) -40 – 65 °C
Operating temperature (T-T) 0 – 50 °C
