ATEN VW884-AT video wall processor Black, Green, Metallic 54.72 W

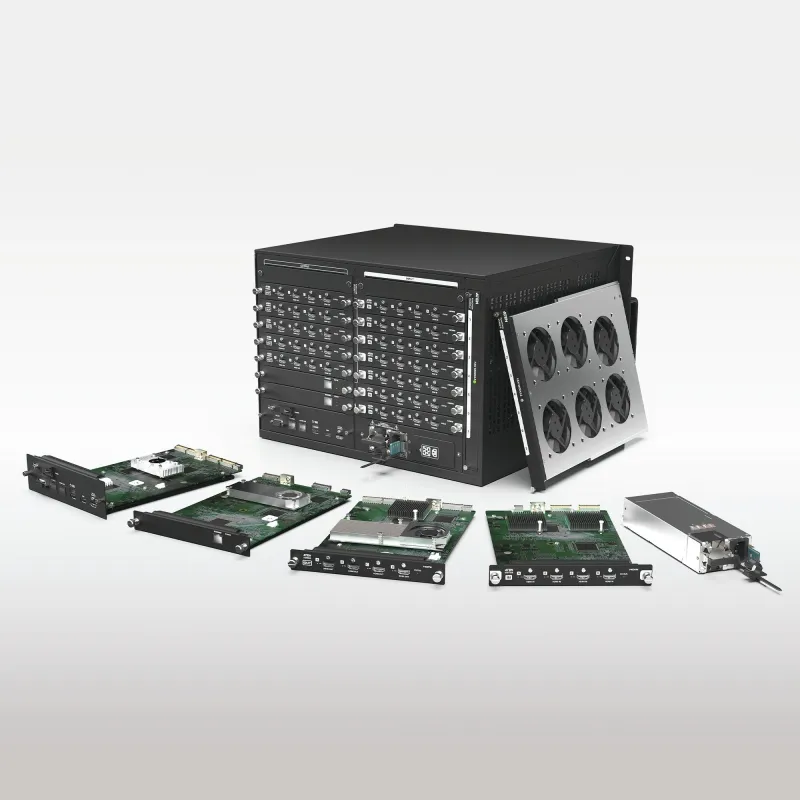

- Works with VW3620 to enable routing of 4 HDMI signals to 4 displays for optimum flexibility
- True 4K @ 60 Hz scalability – supports custom resolutions and enables upscaling of signals for crystal clear, accurate imagery regardless of the display size or type from LED, LCD, DLP, to other large screens
- Seamless Switch – unifies video formats to provide continuous video streams, real-time switching, and stable signal transmissions
- Supports hot-swappable installation for great system integration flexibility and maintenance efficiency

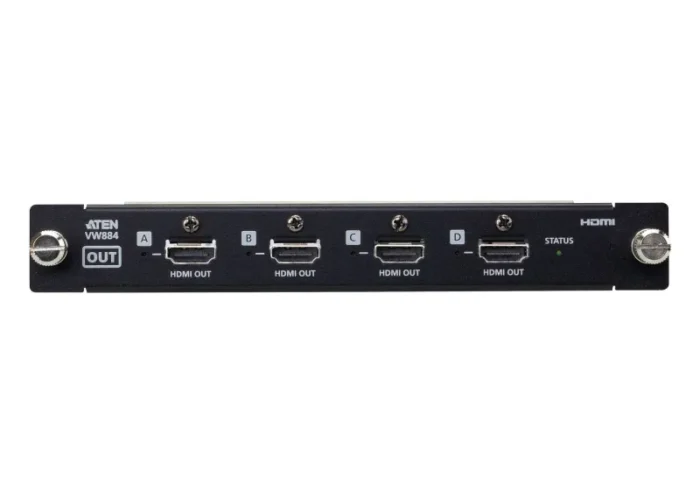

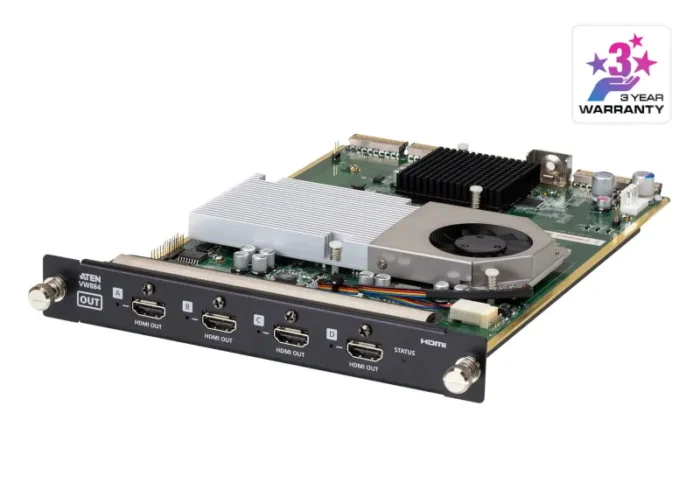

VW884 is a 4-port 4K HDMI output board built to work with VW3620 Modular Video Wall Processor to enable routing of 4 HDMI signals to 4 displays, meeting the increasingly stringent video wall requirements in mission-critical applications. With the support for Seamless Switch™, the VW884 allows real-time video switching and stable signal transmission. The EDID Expert™ technology enables the selection of optimum EDID settings for smooth power-up, high quality display and use of the best video resolutions across different screens. A True 4K scaler is built into VM884 to handle different video resolutions. In addition, the VW884 supports hot-swappable installation to give system integrators great flexibility and efficiency for maintenance.
| Design |
| Housing material |
Metal |
| Product colour |
Black, Green, Metallic |
| Features |
| Maximum resolution |
4096 x 2160 pixels |
| HDCP version |
2.2 |
| HDCP |
Yes |
| Ports & interfaces |
| HDMI output ports quantity |
4 |
| Power |
| Power consumption (max) |
54.72 W |
| Operational conditions |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Logistics data |
| Country of origin |
Taiwan |
| Master (outer) case gross weight |
5.14 kg |
| Master (outer) case length |
350 mm |
| Master (outer) case width |
255 mm |
| Master (outer) case height |
272 mm |
| Weight & dimensions |
| Package weight |
1.2 kg |
| Package height |
59 mm |
| Package depth |
338 mm |
| Package width |
253 mm |
| Weight |
920 g |
| Height |
274 mm |
| Depth |
193 mm |
| Width |
271 mm |
