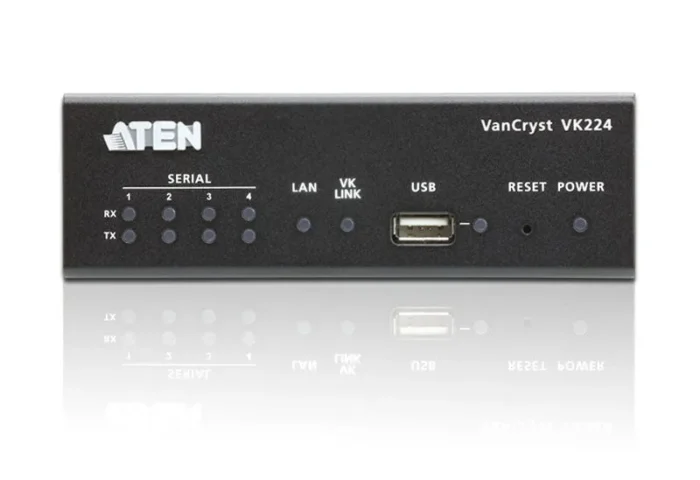

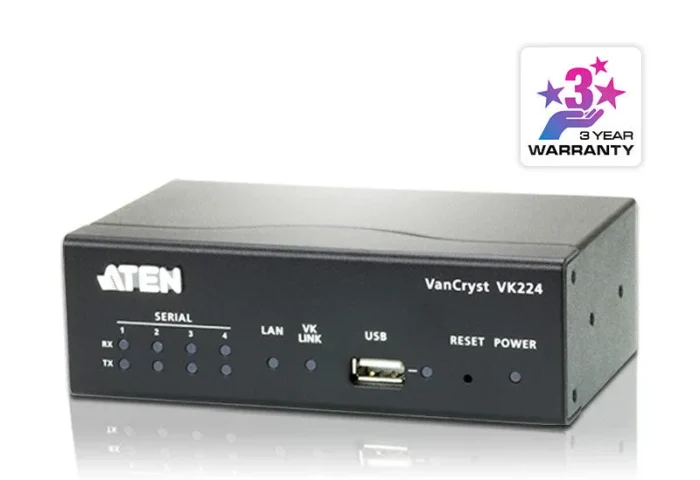

ATEN 4-Port Serial Expansion Box
- Provides 4 bi-directional RS-232/422/485 serial ports to expand the ATEN Control System
- ID Switch pairs the VK224 with a controller to instantly configure the network settings
- Up to eight VK224 expansion boxes can be added to a single Control Box
- Supports Power over Ethernet (PoE) or DC power supply
The VK224 4-Port Serial Expansion Box provides four additional bi-directional RS-232 / 422 / 485 serial ports for a flexible expansion of the ATEN Control System. This allows users to control additional serial devices in an environment where more serial devices are required. With the advantage of an Ethernet-based connection, the expansion box can be easily connected to the VK2100 Control Box via a LAN connection from a variety of locations across a network.
1x VK224 4-Port Serial Expansion Box
1x Mounting Kit
1x User Instructions
| Network |
| Connectivity technology |
Wired |
| Technical details |
| Package depth |
239 mm |
| Storage temperature (T-T) |
-20 – 60 °C |
| Manual |
Yes |
| Package height |
160 mm |
| Package width |
59 mm |
| Package weight |
710 g |
| Product colour |
Black |
| Material |
Metal |
| Master (outer) case height |
175 mm |
| Master (outer) case length |
325 mm |
| Master (outer) case width |
250 mm |
| Master (outer) case net weight |
2.75 kg |
| Ports & interfaces |
| I/O ports |

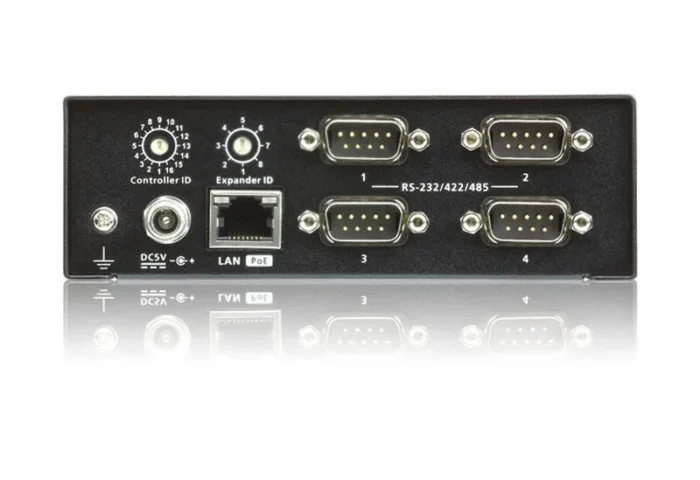

4 x RS-232/422/485, 1 x RJ-45, 1 x USB Type A |
| Operational conditions |
| Operating temperature (T-T) |
0 – 50 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Logistics data |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case gross weight |
3.89 kg |
| Weight & dimensions |
| Weight |
550 g |
| Dimensions (WxDxH) |
75.8 x 130 x 42 mm |
