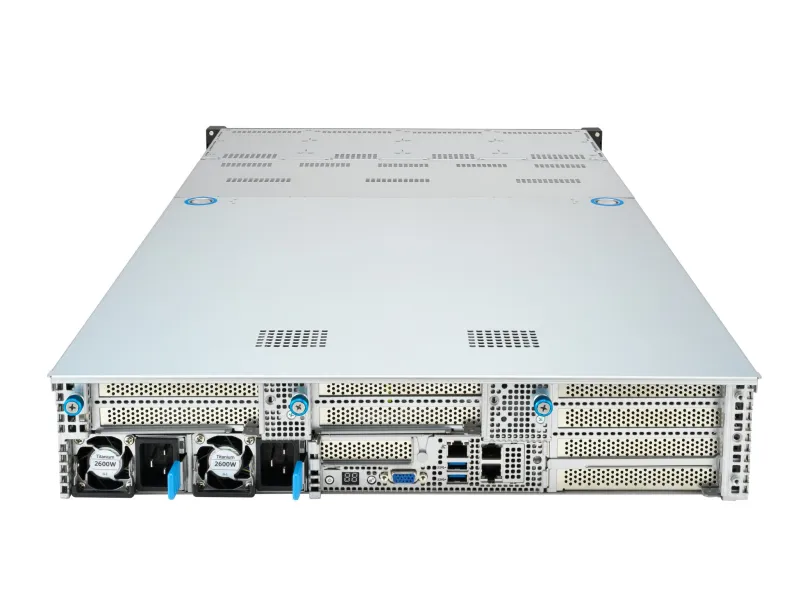

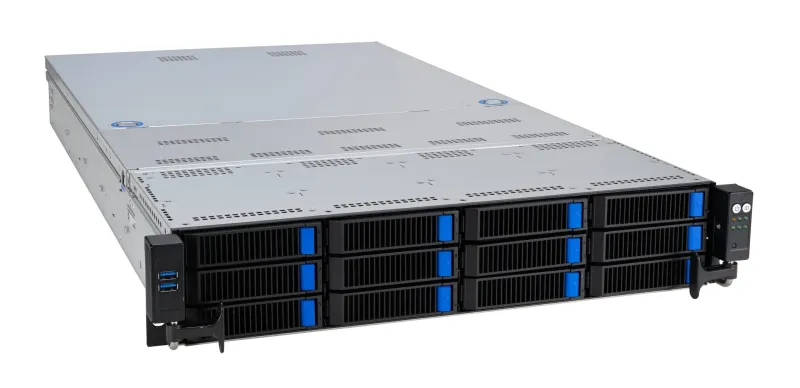

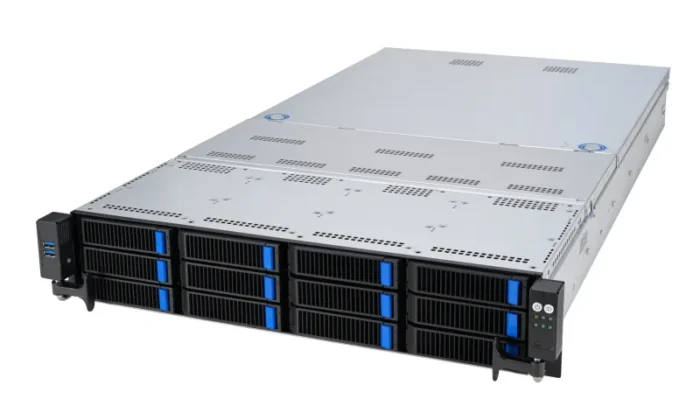

ASUS RS720A-E12-RS12 Socket SP5 Rack (2U) Grey
- Powerful performance: Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
- Scale-up storage and expansion design: A total of 12 bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and nine PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Read for AI and HPC workloads: Up to four dual-slot GPU, including NVIDIA A100*
PCIe 5.0 Ready
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
AMD EPYC™ 9004 Series Processors
The 9004 Series EPYC CPUs amplifies the AMD history of x86 architecture innovations and record-breaking performance with next generation 5nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe® Gen 5 I/O. EPYC 9004 CPUs support 12 memory channels with 2 DIMMs/channel capability, delivering the resources needed for memory hungry AI, ML, HPC, and large in-memory computations.
| Processor |
| Compatible processor series |
AMD EPYC 9004 |
| Number of processors supported |
2 |
| Processor family |
AMD EPYC |
| Processor manufacturer |
AMD |
| Processor socket |
Socket SP5 |
| Memory |
| Supported RDIMM clock speeds |
4400,4800 MHz |
| Maximum internal memory |
6.14 TB |
| Supported DIMM module capacities |
128GB, 64GB, 32GB |
| Supported memory types |
DDR5-SDRAM |
| Number of DIMM slots |
24 |
| Storage |
| SSD form factor |
M.2 |
| Supported storage drive types |
HDD & SSD |
| Storage drive sizes supported |
2.5,3.5,M.2 |
| Number of 3.5″ bays |
12 |
| Number of 2.5″ bays |
2 |
| Hot-swap HDD bays |
Yes |
| Number of storage drives supported |
16 |
| Graphics |
| On-board graphics card memory |
64 MB |
| On-board graphics card model |
Aspeed AST2600 |
| Network |
| LAN controller |
Intel X710-AT2 |
| Ethernet LAN |
Yes |
| Ethernet interface type |
10 Gigabit Ethernet |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
1 |
| IPMI LAN (RJ-45) port |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Expansion slots |
| PCI Express slots version |
5.0 |
| Features |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Technical details |
| Compliance certificates |
BSMI, CE, CB, C-TICK, Federal Communications Commission (FCC) |
| Design |
| Number of fans |
4 fan(s) |
| Reset button |
Yes |
| On/off switch |
Yes |
| LED indicators |
Yes |
| Product colour |
Grey |
| Chassis type |
Rack (2U) |
| Power |
| Redundant power supply (RPS) support |
Yes |
| Power supply |
2600 W |
| Operational conditions |
| Operating temperature (T-T) |
10 – 35 °C |
| Storage temperature (T-T) |
-40 – 60 °C |
| Storage relative humidity (H-H) |
20 – 90% |
| Weight & dimensions |
| Width |
449 mm |
| Depth |
840 mm |
| Height |
88.1 mm |
| Weight |
19.3 kg |
| Packaging data |
| Package weight |
25.8 kg |
