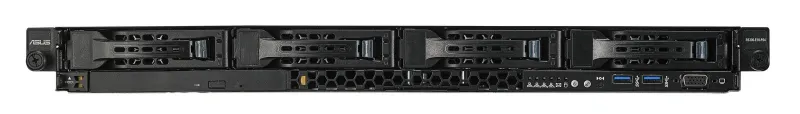

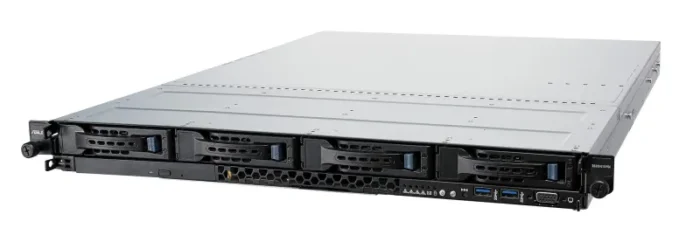

ASUS RS300-E10-PS4 Intel C242 LGA 1151 (Socket H4) Rack (1U) Black

• Powered by the Intel® Xeon® E platform
• 95W CPU and up to 128GB memory support (4 DIMMs)
• Flexible storage design with four 2.5-inch SSDs or 3.5-inch HDDs and two internal SSD bays
• Two M.2 slots accommodate 22110-size SSDs for faster boot speed
• Quad Intel® Gigabit Ethernet with teaming support
• Comprehensive I/O connectivity to meet different needs
• Complete server management with ASUS Control Center
• Optional ASMB-iKVM module available for 24/7 remote monitoring and diagnostics

Delivers a workload optimized solution
RS300-E10-PS4 supports the latest Intel® Xeon® E processors, which are 1.36x faster than the previous generation and operate at a maximum of 95W for leading performance. It supports four memory slots that fit up to 64GB of DDR4 2666 for memory-intensive computing.

Flexible expansion for better storage
RS300-E10-PS4 offers the performance required by demanding visual computing workloads with support of one NVIDIA graphics card, or you can choose two PCIe Gen3 slots to expand I/O capacity. A built-in PCI slot is designed for the usage availability of legacy PCI devices.

RS300-E10-PS4 fits four hot-swappable 2.5-inch SSDs or 3.5-inch HDDs and two 2.5-inch internal SSD bays are included for larger storage. Two M.2 slots accommodate 22110-size SSDs with support for additional OS storage and PCIe Gen3 x4 bandwidth — 5.3X faster than 6 Gb/s SATA III — for faster boot speeds.

Maximize I/O performance and data protection
RS300-E10-PS4 supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of RS300-E10-PS4, making it a great upgrade option.

RS300-E10-PS4

Intel® Xeon® E rack-optimized 1U server designed for storage and networking flexibility
Powered by the Intel® Xeon® E platform
95W CPU and up to 64GB memory support (4 DIMMs)
Flexible storage design with four 2.5-inch SSDs or 3.5-inch HDDs and two internal SSD bays
Two M.2 slots accommodate 22110-size SSDs for faster boot speed
Quad Intel® Gigabit Ethernet with teaming support
Comprehensive I/O connectivity to meet different needs
Complete server management with ASUS Control Center
Optional ASMB-iKVM module available for 24/7 remote monitoring and diagnostics
Add to comparison list
Print
Share

Data Sheet
Successful Stories
Delivers a workload optimized solution
RS300-E10-PS4 supports the latest Intel® Xeon® E processors, which are 1.36x faster than the previous generation and operate at a maximum of 95W for leading performance. It supports four memory slots that fit up to 64GB of DDR4 2666 for memory-intensive computing.

Flexible expansion for better storage
RS300-E10-PS4 offers the performance required by demanding visual computing workloads with support of one NVIDIA graphics card, or you can choose two PCIe Gen3 slots to expand I/O capacity. A built-in PCI slot is designed for the usage availability of legacy PCI devices.

RS300-E10-PS4 fits four hot-swappable 2.5-inch SSDs or 3.5-inch HDDs and two 2.5-inch internal SSD bays are included for larger storage. Two M.2 slots accommodate 22110-size SSDs with support for additional OS storage and PCIe Gen3 x4 bandwidth — 5.3X faster than 6 Gb/s SATA III — for faster boot speeds.

Maximize I/O performance and data protection
RS300-E10-PS4 supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of RS300-E10-PS4, making it a great upgrade option.

High-speed mini-SAS HD connections
RS300-E10-PS4 comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. RS300-E10-PS4 also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of RS300-E10-PS4, making it a great upgrade option.

Quad Intel® Gigabit Ethernet
RS300-E10-PS4 features quad server-class Intel® Ethernet ports and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network. Optional ASUS PEB series Ethernet cards are available for networking upgrade.

Comprehensive IT infrastructure management
RS300-E10-PS4 features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.

ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Enhanced serviceability
With its power button located on the front I/O panel, RS300-E10-PS4 is designed to provide easier maintenance and deployment for diverse applications.

RS300-E10-PS4 has a visible Q-Code/port 80 LED display for simple monitoring of the entire boot process, from power on through loading of the operating system.

Quick initialization guidance
RS300-E10-PS4 provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.
