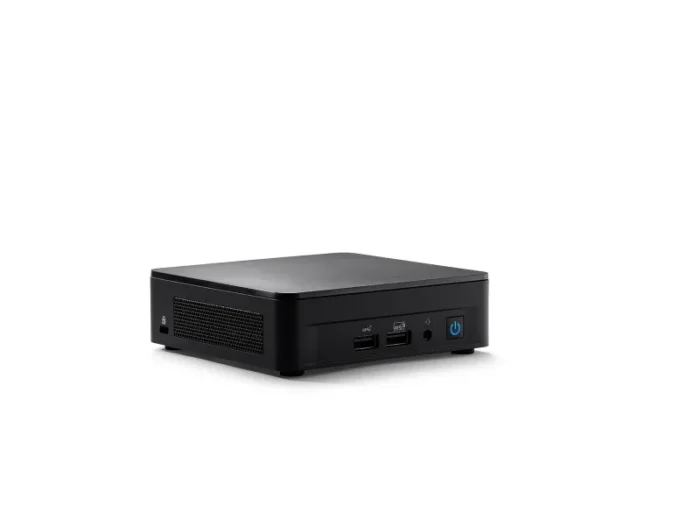

ASUS NUC 12 Pro Kit NUC12WSKi5 UCFF Black i5-1240P
- 12th Gen Intel® Core™ i7/i5/i3 processors or Intel vPro® Enterprise with 12th Gen Intel® Core™ i7/i5 processors
- Intel® Iris® Xe graphics
- Up to 64 GB dual-channel DDR4-3200 SODIMMs
- M.2 22×80 key M slot for PCIe x4 Gen 4 NVMe SSD
- M.2 22×42 key B slot for PCIe x1 Gen 3, USB 3.2 Gen 2, USB 2.0, and SATA SSDexpandability
- Support in tall chassis for third SSD with 2.5” drive capability (up to 15mm tall)
Built for Business. NUC 12 Pro
Boost business performance with 12th Gen Intel® Core™ processors and the latest features to support productivity, collaboration, and edge compute.
NUC 12 Pro Mini PCs, Kits, & Boards
Ready to work, wherever it’s needed—the 4×4 compact device is designed to go where you go, and fit into any space.
Surprising size. Supercharged performance
Level up your business with the latest technologies.
| Processor |
| Thermal Design Power (TDP) |
35 W |
| Processor cache |
12 MB |
| Processor boost frequency |
4.4 GHz |
| Processor threads |
16 |
| Processor cores |
12 |
| Processor model |
i5-1240P |
| Processor generation |
12th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Built-in processor |
Yes |
| Memory |
| ECC |
No |
| Maximum internal memory |
64 GB |
| Supported memory types |
DDR4-SDRAM |
| Memory voltage |
1.2 V |
| Supported memory clock speeds |
3200 MHz |
| Number of memory slots |
2 |
| Memory slots type |
SO-DIMM |
| Storage |
| Number of storage drives supported |
2 |
| NVMe |
Yes |
| SSD form factor |
M.2 |
| Storage drive sizes supported |
M.2 |
| Supported storage drive types |
SSD |
| Graphics |
| Number of displays supported |
4 |
| On-board graphics card model |
Intel Iris Xe Graphics |
| Graphics card family |
Intel |
| On-board graphics card |
No |
| Audio |
| Built-in speaker(s) |
No |
| Network |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| LAN controller |
Intel I225-V |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| Serial port via internal header |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| Combo headphone/mic port |
Yes |
| HDMI version |
2.1 |
| HDMI ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
1 |
| Expansion slots |
| PCI Express slots version |
4.0 |
| Design |
| Product type |
Mini PC barebone |
| VESA mounting |
Yes |
| LED indicators |
Yes |
| On/off switch |
Yes |
| Cooling type |
Active |
| Product colour |
Black |
| Chassis type |
UCFF |
| Performance |
| Number of processors supported |
1 |
| Motherboard form factor |
UCFF |
| Processor special features |
| Intel® High Definition Audio (Intel® HD Audio) |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel ME Firmware Version |
16 |
| Intel® Optane™ Memory Ready |
No |
| Intel® Platform Trust Technology (Intel® PTT) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Software |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Windows 11 Home, Windows 11 Pro, Windows 10 Home, Windows 10 IoT Enterprise, Windows 10 Pro |
| Power |
| Power supply type |
External AC adapter |
| Weight & dimensions |
| Height |
37 mm |
| Depth |
112 mm |
| Width |
117 mm |
