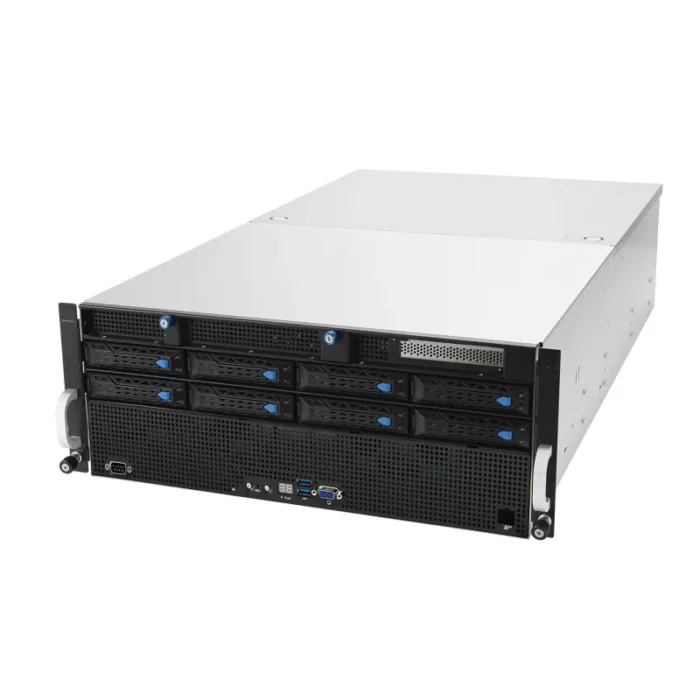

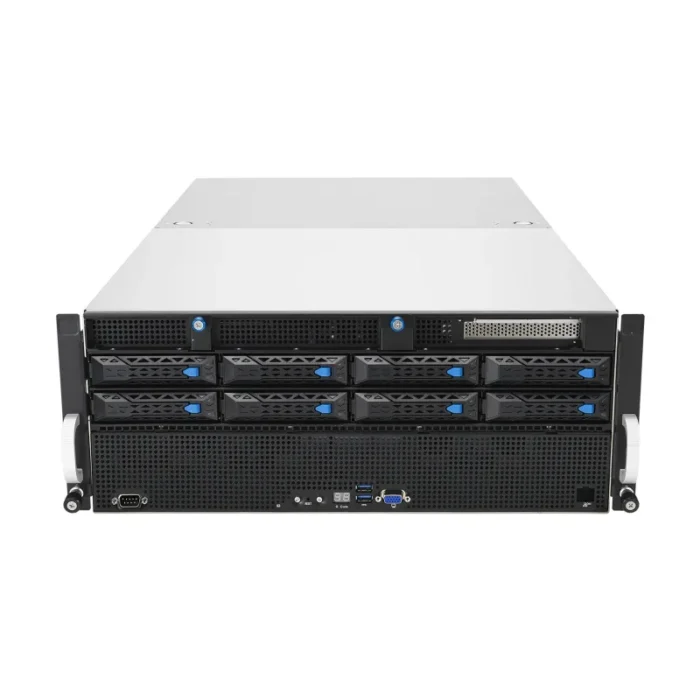

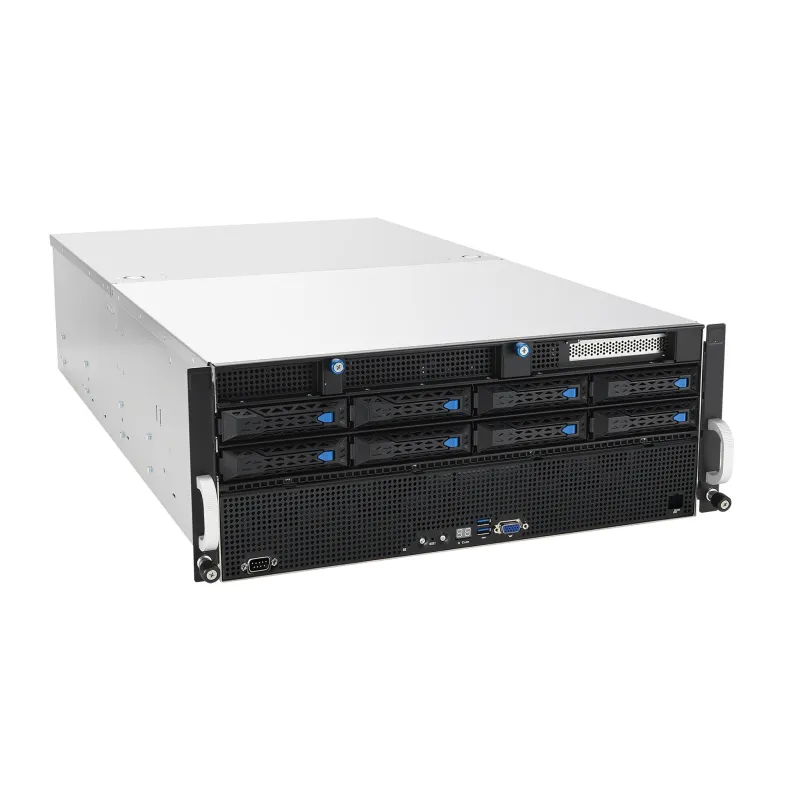

ASUS ESC8000A-E11 Socket SP3 Rack (4U) Silver
- Fueled by dual-socket AMD EPYC™ 7003 series processors supporting a 280 W TDP
- Up to 11 PCIe® 4.0 slots enables higher bandwidth and improved data transfer rates
- GPU-optimized design allows eight dual-slot active or passive GPUs, including NVIDIA® A100 or AMD Instinct™ MI100
- Supports NVIDIA NVLink® bridge to enable performance scaling
- Up to eight 3.5” or 2.5” flexible storage bays to enable extensive storage and high-throughput performance
- High power efficiency with four redundant 3000 W 80 Plus Titanium power supplies
- Optimized power-saving thermal design with independent CPU and GPU airflow tunnels
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
| Processor |
| Compatible processor series |
AMD EPYC 7003 |
| Number of processors supported |
2 |
| Processor socket |
Socket SP3 |
| Built-in processor |
Yes |
| Memory |
| Supported RDIMM clock speeds |
3200 MHz |
| Maximum internal memory |
8.19 TB |
| Supported DIMM module capacities |
16GB, 32GB, 64GB, 128GB |
| Supported memory types |
DDR4-SDRAM |
| Number of DIMM slots |
32 |
| Storage |
| SSD form factor |
M.2 |
| Number of 3.5″ bays |
8 |
| Hot-swap HDD bays |
Yes |
| Number of storage drives supported |
8 |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Expansion slots |
| PCI Express x16 slots |
8 |
| Design |
| Product colour |
Silver |
| Chassis type |
Rack (4U) |
| Power |
| 80 PLUS certification |
80 PLUS Titanium |
| Input current |
15.5 A |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
220 – 240 V |
| Power supply |
3000 W |
| Operational conditions |
| Operating temperature (T-T) |
10 – 35 °C |
| Storage temperature (T-T) |
-40 – 70 °C |
| Storage relative humidity (H-H) |
20 – 90% |
| Weight & dimensions |
| Width |
800 mm |
| Depth |
440 mm |
| Height |
175.6 mm |
| Weight |
39 kg |
| Packaging data |
| Package weight |
49 kg |
