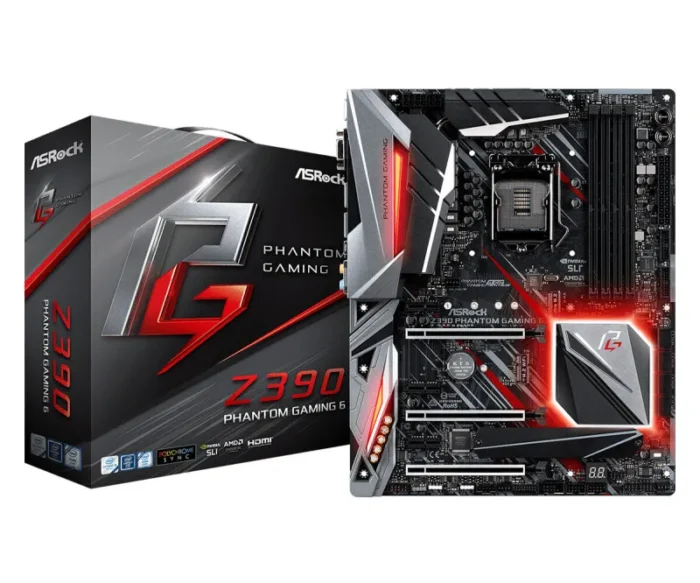

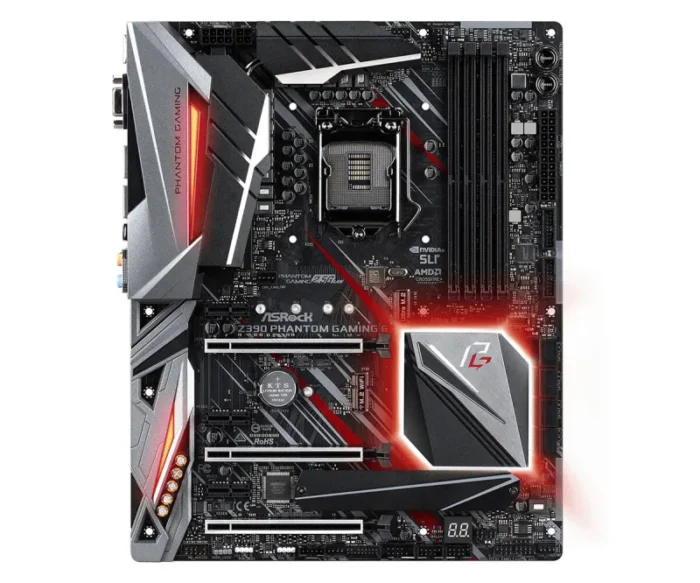

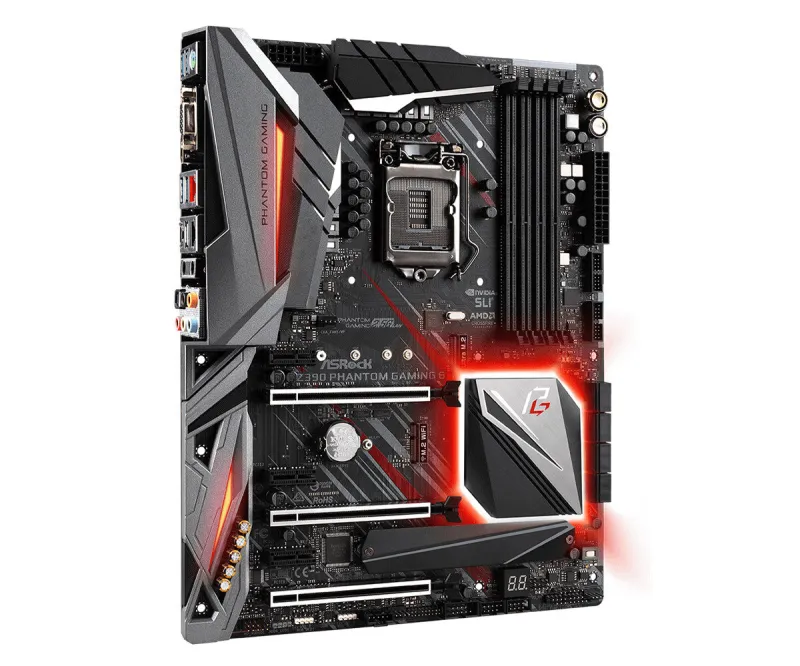

Asrock Z390 Phantom Gaming 6 Intel Z390 LGA 1151 (Socket H4) ATX

• Supports 9th and 8th Gen Intel Core processors (Socket 1151)
• Phantom Gaming 2.5 Gigabit LAN, Intel Gigabit LAN
• Digital PWM, 12 Power Phase
• Supports DDR4 4300+(OC) MHz
• 3 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi
• NVIDIA Quad SLI, AMD 3-Way CrossFireX
• Graphics Output Options : HDMI, D-Sub, DisplayPort
• 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
• Supports Creative Sound Blaster Cinema 5
• 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C)
• 9 USB 3.1 Gen1 (1 Front Type-C, 4 Front Type-A, 4 Rear)
• ASRock Polychrome SYNC

Phantom Gaming 2.5 Gb/s LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

Fully Supports 9th Gen Intel Core Processors

The motherboard is designed to make the best out of 9th Generation Intel Core Processors, the sturdy VRM design provides extreme overclocking potential, lower temperature during gaming and reinforced system stability for taking on all sorts of arduous computing tasks.

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

CREATIVE SOUND BLASTER CINEMA5

A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.

Full Coverage M.2 Heatsink

A massive full coverage M.2 heatsink that is able to dissipate heat ef-ficiently to ensure your high speed M.2 SSD always working at its best.

Dual M.2 For SSD

Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

Dual USB 3.1 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Intel Optane Memory Ready

Supports Intel Optane memory technology and Intel Optane storage technology that redefines a new standard of high performance and responsiveness.

Front USB 3.1 Gen1 Type-C

Front USB 3.1 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
