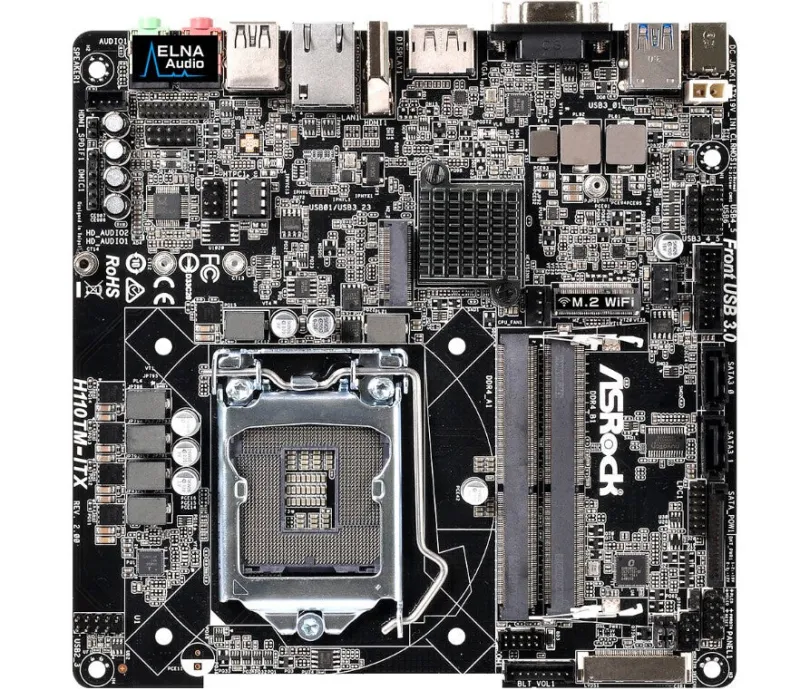

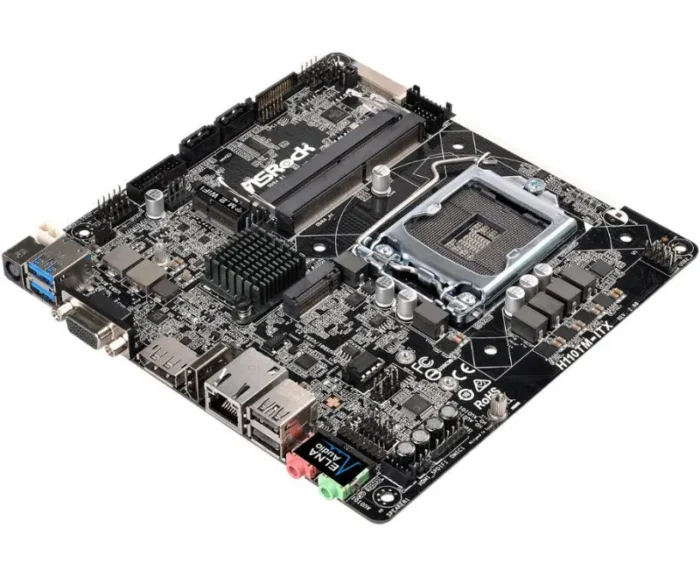

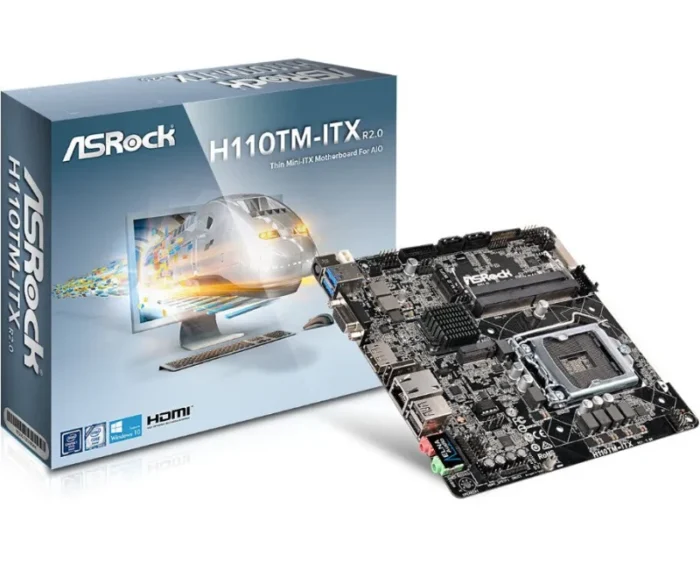

Asrock H110TM-ITX R2.0 Intel® H110 LGA 1151 (Socket H4) mini ATX
- Intel LGA 1151 (Socket H4) Intel® Celeron®, Intel® Pentium®
- PC mini ATX Intel® H110 7.1 channels
- DDR4-SDRAM 2 SO-DIMM Maximum internal memory: 32 GB
- M.2, SATA III
- Intel 1024
- BIOS type: UEFI AMI 64 Mbit ACPI version: 5.0
- Fast Ethernet, Gigabit Ethernet
– ASRock Super Alloy
– Supports 7th and 6th Generation Intel® Core™ Processors (Socket 1151)
– Digi Power, 5 Power Phase design
– Supports Dual Channel DDR4 2133 SO-DIMM
– 1 M.2 Socket (Key E)
– Graphics Output Options: HDMI, LVDS, D-Sub, DisplayPort
– 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
– 2 SATA3, 1 M.2 (SATA mode)
– 4 USB 3.0 (2 Front, 2 Rear)
– Supports Full Spike Protection, ASRock Live Update & APP Shop
| Processor | |
|---|---|
| Processor thermal power (max) | 65 W |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Processor socket | LGA 1151 (Socket H4) |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2133 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Graphics | |
|---|---|
| Discrete graphics support | Yes |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Graphics card family | Intel |
| Maximum graphics card memory | 1024 MB |
| Internal I/O | |
|---|---|
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 1 |
| Power fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 3 |
| Rear panel I/O ports | |
|---|---|
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Wake-on-LAN ready | Yes |
| LAN controller | Intel® I219-V |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Certification | FCC, CE, WHQL, ErP/EuP |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Power source type | ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel® H110 |
| Motherboard chipset family | Intel |
| Motherboard form factor | mini ATX |
| Component for | PC |
| BIOS | |
|---|---|
| ACPI version | 5.0 |
| BIOS memory size | 64 Mbit |
| BIOS type | UEFI AMI |
| Processor special features | |
|---|---|
| Intel® Turbo Boost Technology | 2.0 |
| Intel Extreme Memory Profile (XMP) | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 170 mm |
| Width | 170 mm |
| Packaging content | |
|---|---|
| Trial software | AntiVirus |
| Drivers included | Yes |
| Other features | |
|---|---|
| Number of M.2 (E) slots | 1 |
| Utilities included | Yes |
| LVDS connector | Yes |
| Combo headphone/mic port | Yes |
