Asrock G41C-GS Intel® G41 LGA 775 (Socket T) micro ATX
- Intel LGA 775 (Socket T) Intel® Celeron®, Intel® Celeron® Dual-Core, Intel® Pentium® Dual-Core
- PC micro ATX Intel® G41 VIA VT1705 5.1 channels
- DDR2-SDRAM, DDR3-SDRAM 4 DIMM Maximum internal memory: 8 GB
- Parallel ATA, SATA II
- Intel GMA X4500 1759
- BIOS type: AMI 8 Mbit ACPI version: 1.1
- Fast Ethernet, Gigabit Ethernet
– Supports FSB1333/1066/800/533 MHz CPUs;
– Supports Dual Channel DDR3 1333(OC) + DDR2 800;
– Intel® Graphics Media Accelerator X4500, Pixel Shader 4.0, DirectX 10, Max. shared memory 1759MB
– PCIE Gigabit LAN;
– EuP Ready;
– Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies;
– Supports Instant Boot, Instant Flash, OC DNA, ASRock OC Tuner (Up to 143% CPU frequency increase);
– Supports Intelligent Energy Saver (Up to 20% CPU Power Saving);
– Free Bundle : CyberLink DVD Suite – OEM and Trial; Creative Sound Blaster X-Fi MB – Trial.
| Processor |
| Processor system buses supported |
533,800,1066,1333 MHz |
| Compatible processor series |
Intel® Celeron®, Intel® Celeron® Dual-Core, Intel® Pentium® Dual-Core |
| Processor socket |
LGA 775 (Socket T) |
| Processor manufacturer |
Intel |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
8 GB |
| Supported memory clock speeds |
533,667,800,1066,1333 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR2-SDRAM, DDR3-SDRAM |
| Storage controllers |
| Supported storage drive interfaces |
Parallel ATA, SATA II |
| Graphics |
| DirectX version |
10 |
| Maximum resolution |
2048 x 1536 pixels |
| Graphics card |
GMA X4500 |
| Graphics card family |
Intel |
| On-board graphics card |
Yes |
| Parallel processing technology support |
Not supported |
| Maximum graphics card memory |
1759 MB |
| Internal I/O |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Chassis intrusion connector |
Yes |
| CPU fan connector |
Yes |
| Power fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of Parallel ATA connectors |
1 |
| Number of SATA II connectors |
4 |
| USB 2.0 connectors |
2 |

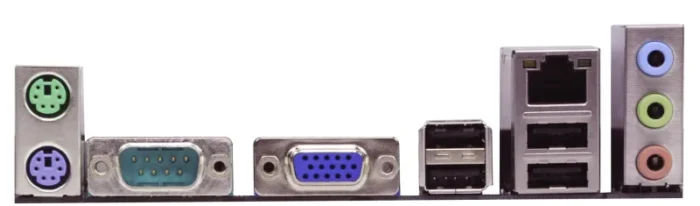

| Rear panel I/O ports |
| Serial ports quantity |
1 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 2.0 ports quantity |
4 |
| Network |
| Networking features |
Gigabit Ethernet |
| LAN controller |
Realtek RTL8111DL |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Certification |
FCC, CE, EuP |
| Compatible operating systems |
Windows 7Windows VistaWindows XP |
| Cooling type |
Passive |
| Power source type |
ATX |
| Audio output channels |
5.1 channels |
| Audio chip |
VIA VT1705 |
| Motherboard southbridge |
Intel ICH7 |
| Motherboard chipset |
Intel® G41 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
| BIOS |
| ACPI version |
1.1 |
| BIOS memory size |
8 Mbit |
| BIOS type |
AMI |
| Processor special features |
| Intel® High Definition Audio (Intel® HD Audio) |
Yes |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
| Depth |
198 mm |
| Width |
244 mm |
| Packaging content |
| Drivers included |
Yes |
| Cables included |
SATA |
| Other features |
| Floppy disk drive connector |
Yes |
| Quick installation guide |
Yes |
