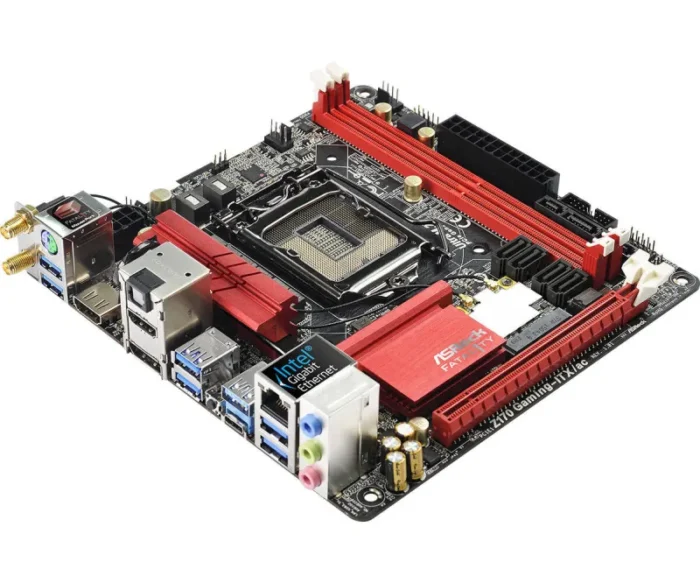

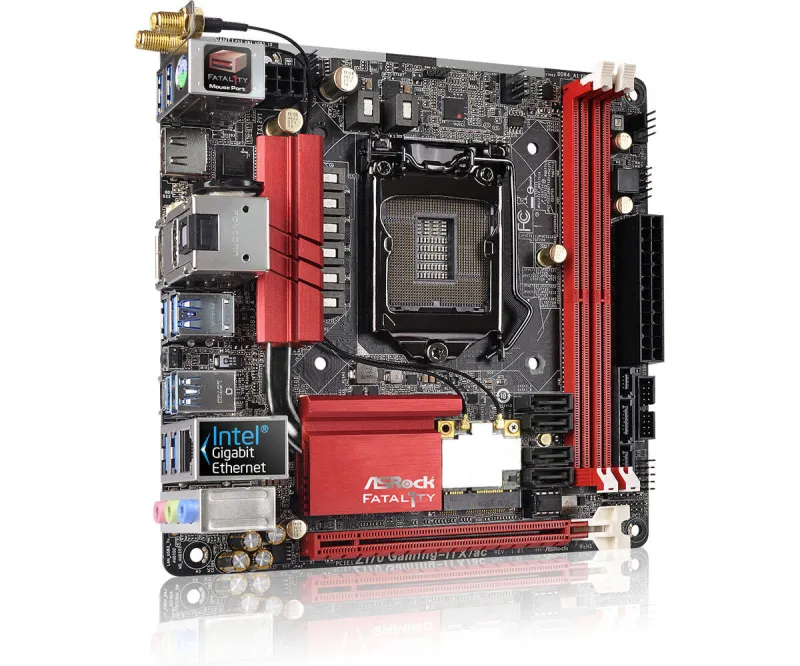

Asrock Fatal1ty Z170 Gaming-ITX/ac Intel® Z170 LGA 1151 (Socket H4) mini ITX
- Intel LGA 1151 (Socket H4) Intel® Celeron®, Intel® Pentium®
- Mini PC mini ITX Intel® Z170 Realtek ALC1150 7.1 channels
- DDR4-SDRAM 2 DIMM Maximum internal memory: 32 GB
- SATA III
- Intel 1024
- BIOS type: EFI AMI 16 Mbit ACPI version: 5.0 Clear CMOS button
- Gigabit Ethernet Wi-Fi Bluetooth 4.0
– ASRock Super Alloy
– Gaming Armor – CPU Power / Memory / VGA Card / Cooling / Internet
– Digi Power, 8 Power Phase design
– Supports 6th Generation Intel® Core™ Processors (Socket 1151)
– Supports DDR4 4000+(OC) memory modules
– 1 PCIe 3.0 x16, 1 Half-size Mini-PCIe
– Graphics Output Options: 2 HDMI, DisplayPort 1.2
– Supports Triple Monitor
– 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 3 & DTS Connect
– 1 2T2R Dual Band 802.11ac WiFi + BT v4.0 Module, 1 ASRock WiFi 2.4/5 GHz Antenna
– 1 SATA Express, 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
– 2 USB 3.1 10Gb/s (1 Type-A + 1 Type-C), 8 USB 3.0 (2 Front, 5 Rear, 1 Fatal1ty Mouse Port)
– Supports Full Spike Protection, ASRock Live Update & APP Shop, F-Stream, Key Master, XSplit
| Processor |
| Intel Core i3/i5/i7/i9 series |
i3-6xxx, i5-6xxx, i7-6xxx |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® |
| Processor socket |
LGA 1151 (Socket H4) |
| Processor manufacturer |
Intel |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
32 GB |
| Supported memory clock speeds |
2133,2400,2800,2933,3200,3600,3866,4000 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 5, 10 |
| Supported storage drive interfaces |
SATA III |
| Graphics |
| Discrete graphics support |
Yes |
| DirectX version |
12.0 |
| Maximum resolution |
4096 x 2304 pixels |
| Graphics card family |
Intel |
| Maximum graphics card memory |
1024 MB |
| Internal I/O |
| EPS power connector (8-pin) |
Yes |
| Chassis intrusion connector |
Yes |
| Number of chassis fan connectors |
2 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
6 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
1 |
| Rear panel I/O ports |
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
2 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
5 |
| Network |
| Bluetooth version |
4.0 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Wake-on-LAN ready |
Yes |
| LAN controller |
Intel® I219-V |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Certification |
FCC, CE, WHQL, ErP/EuP ready |
| Windows operating systems supported |
Yes |
| Cooling type |
Passive |
| Power source type |
ATX |
| PC health monitoring |
CPU, Fan, Temperature, Voltage |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC1150 |
| Motherboard chipset |
Intel® Z170 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
mini ITX |
| Component for |
Mini PC |
| Expansion slots |
| Number of M.2 (M) slots |
1 |
| Mini PCI Express slot (half-length) |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| BIOS |
| Clear CMOS button |
Yes |
| ACPI version |
5.0 |
| BIOS memory size |
16 Mbit |
| BIOS type |
EFI AMI |
| Processor special features |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Insider™ |
Yes |
| Intel® InTru™ 3D Technology |
Yes |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
| Depth |
170 mm |
| Width |
170 mm |
| Packaging content |
| Drivers included |
Yes |
| Cables included |
SATA |
| Other features |
| Quick installation guide |
Yes |
