Asrock Beebox 90BXG3301-A10GA0P PC/workstation barebone 0.6L sized PC Black J4205 BGA 1296 1.5 GHz
- Inte Pentium® J4205 & Celeron® J3455 Quad Core CPU
- Dual Channel DDR3L SO-DIMM (Max. 16GB)
- Onboard 32GB eMMC
- Hyper speed WiFi 802.11ac, also works as a wireless access point
- Supports two storage devices for added flexibility (1 x 2.5″ SATA3 HDD + 1 x M.2 SATA3 SSD)

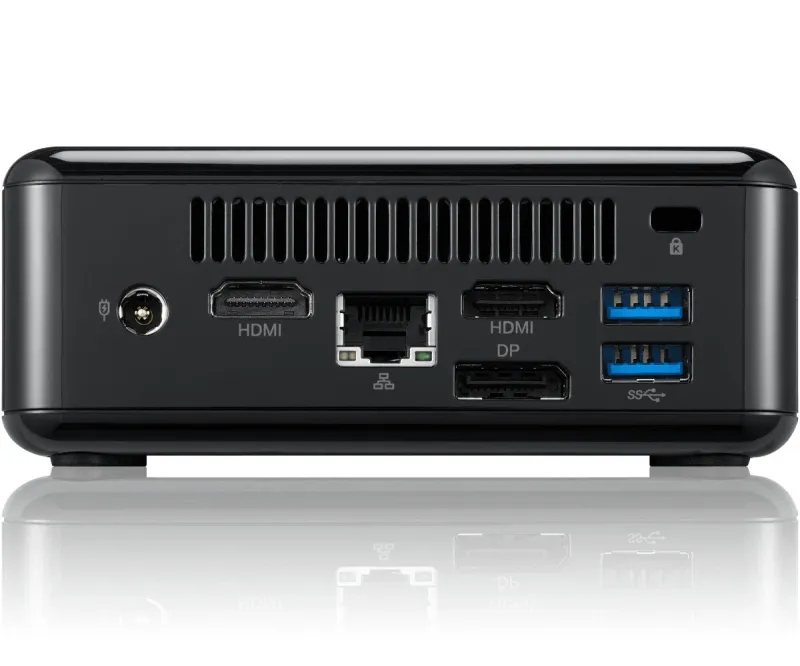

- Supports Triple Monitor (2 x HDMI, 1 x DisplayPort)
- Smooth and ultra high resolution 4K@60Hz playback
- The world’s first NUC paired with an USB Type-C port
- A free bundled remote controller for controlling your PC wirelessly
- Offers rich features in a tiny 0.6L package
A home theater system for your living room that’s also quiet enough for your bedroom, and powerful enough for a daily computing PC.
A miniature PC for office tasks, stock monitoring, educational purposes or even digital signage. Makes your business bloom in no time.
Intel® Pentium® J4205 Processor (Up to 2.6 GHz)
Improved performance, lower power consumption, and new multimedia capabilities.
Triple Monitor
Lights up three monitors simultaneously via two HDMI ports and one DisplayPort.
4K Support
The only system in the segment that supports dual channel memory for supporting 4K video playback.
The World’s First NUC with a USB Type-C Port.
USB Type-C doubles the charge speed!
The Fastest Wireless Internet – 802.11ac WiFi
Beebox comes with an exclusive 802.11ac WiFi (2.4G/5G WiFi) module.
Quiet Design
A special design that produces absolutely low noise.
Remote Controller
A free bundled remote controller for Beebox.
| Processor | |
|---|---|
| CPU configuration (max) | 1 |
| Processor codename | Apollo Lake |
| Processor series | Intel Pentium Processor J4000 Series for Desktop |
| Thermal Design Power (TDP) | 10 W |
| Processor lithography | 14 nm |
| Processor frequency | 1.5 GHz |
| Processor boost frequency | 2.6 GHz |
| Processor threads | 4 |
| Processor cores | 4 |
| Processor model | J4205 |
| Processor family | Intel® Pentium® |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| Maximum internal memory | 16 GB |
| Supported memory types | DDR3L-SDRAM |
| Supported memory clock speeds | 1333,1600,1866 MHz |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Number of storage drives supported | 2 |
| Storage drive interface | M.2, Serial ATA III |
| SSD form factor | 3.5″ |
| Storage drive sizes supported | 2.5,3.5″ |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Number of displays supported | 3 |
| On-board graphics card model | Intel® HD Graphics 505 |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Network | |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Infrared data port | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Expansion slots | |
|---|---|
| PCI Express configurations | 1×2, 1×2+2×1 |
| PCI Express slots version | 2.0 |
| Design | |
|---|---|
| Number of 3.5″ bays | 1 |
| Product type | Mini PC barebone |
| VESA mounting | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Housing material | Plastic |
| LED indicators | Yes |
| Cooling type | Passive |
| Product colour | Black |
| Chassis type | 0.6L sized PC |
| Performance | |
|---|---|
| Audio chip | Realtek ALC283 |
| Processor socket | BGA 1296 |
| Processor special features | |
|---|---|
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Rapid Storage Technology | No |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel Smart Connect Technology | No |
| Intel® Secure Key | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | No |
| Intel Clear Video Technology | Yes |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | No |
| General | |
|---|---|
| Product family | Beebox |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Power | |
|---|---|
| AC input voltage | 100 – 240 V |
| AC adapter output voltage | 12 V |
| Number of power supply units | 1 |
| Power supply | 36 W |
| Power supply type | External AC adapter |
| Packaging content | |
|---|---|
| Drivers included | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Power cord included | Yes |
