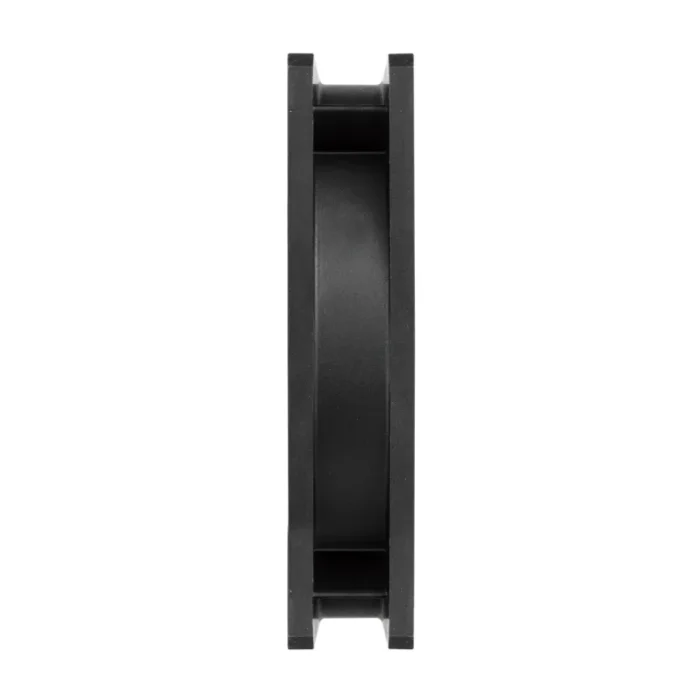

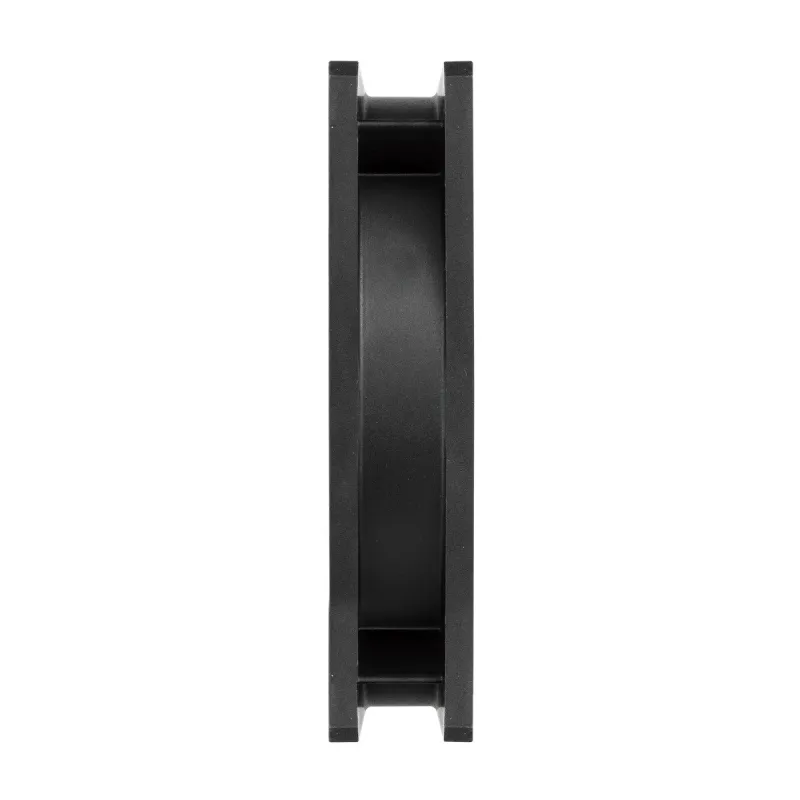

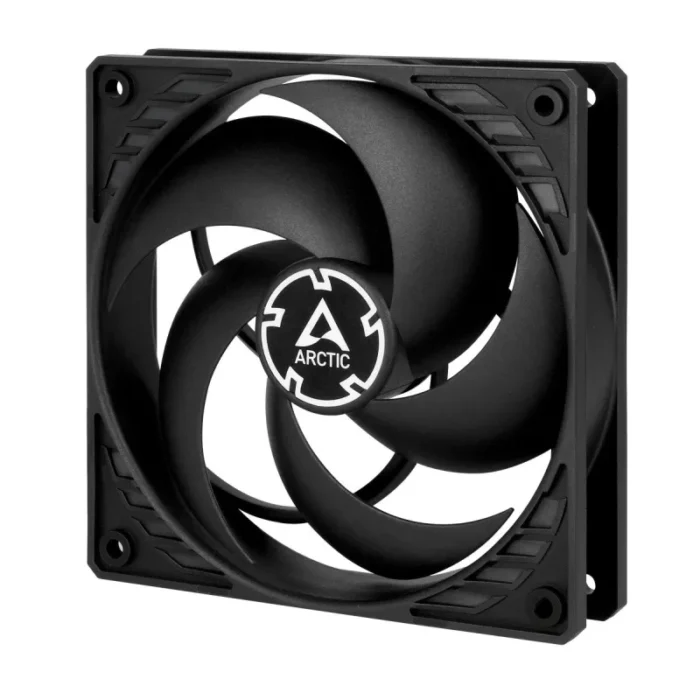

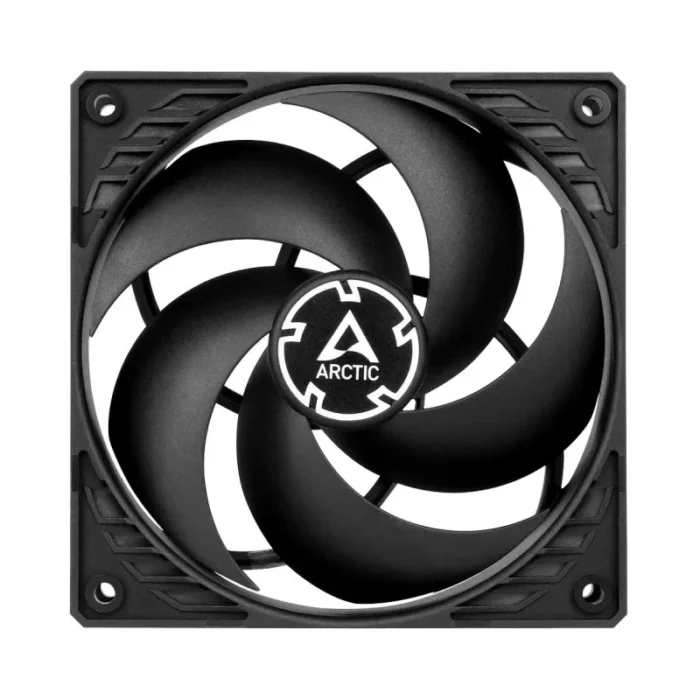

ARCTIC P12 Silent – Pressure-optimised Extra Quiet 120 mm Fan
- Optimised for static pressure
- Ideal choice on heatsinks, radiators and (partly-) covered case vents
- Push- or pull-configuration possible
- Virtually silent motor, developed in Germany
The P12 Silent fan features completely redesigned fan blades and is optimised for high static pressure.
Thus, the P12 Silent is especially effective when used on heatsinks and with higher air resistance.
The motor of the fan was developed in Germany and is virtually silent.
| Performance |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Airflow |
40.95 m³/h |
| Maximum airflow |
24.1 cfm |
| Noise level |
0.08 sone |
| Rotational speed (max) |
1050 RPM |
| Compatible processor series |
Not supported |
| Supported processor sockets |
Not supported |
| Fan diameter |
12 cm |
| Type |
Fan |
| Suitable location |
Computer case |
| Design |
| Fan connector |
3-pin |
| Number of fan blades |
5 |
| Number of fans |
1 fan(s) |
| Product colour |
Black |
| Power |
| Rated current |
0.09 A |
| Starting voltage |
4.8 V |
| Voltage |
12 V |
| Weight & dimensions |
| Package weight |
170 g |
| Package height |
27 mm |
| Package depth |
123 mm |
| Package width |
123 mm |
| Cable length |
0.4 m |
| Weight |
139 g |
| Height |
25 mm |
| Depth |
120 mm |
| Width |
120 mm |
| Packaging content |
| Number of screws |
4 |
| Screws included |
Yes |
| Package type |
Box |
| Other features |
| Country of origin |
China |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
