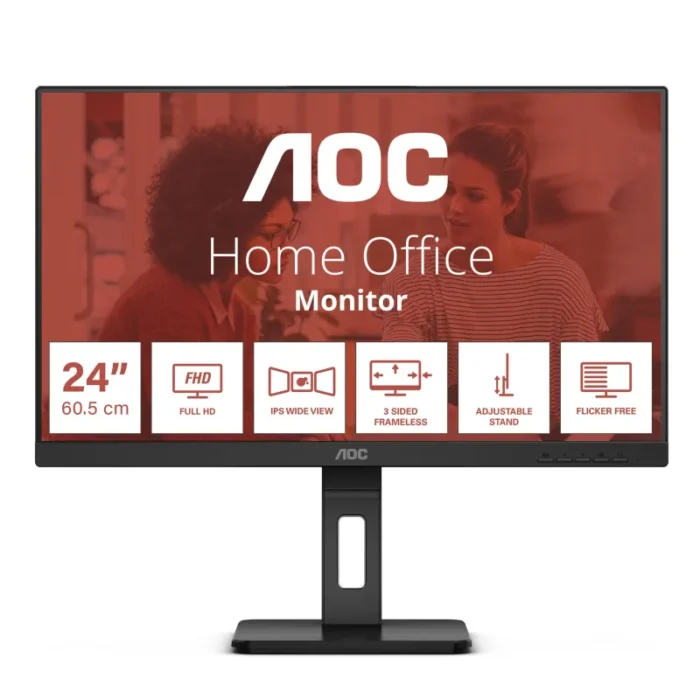

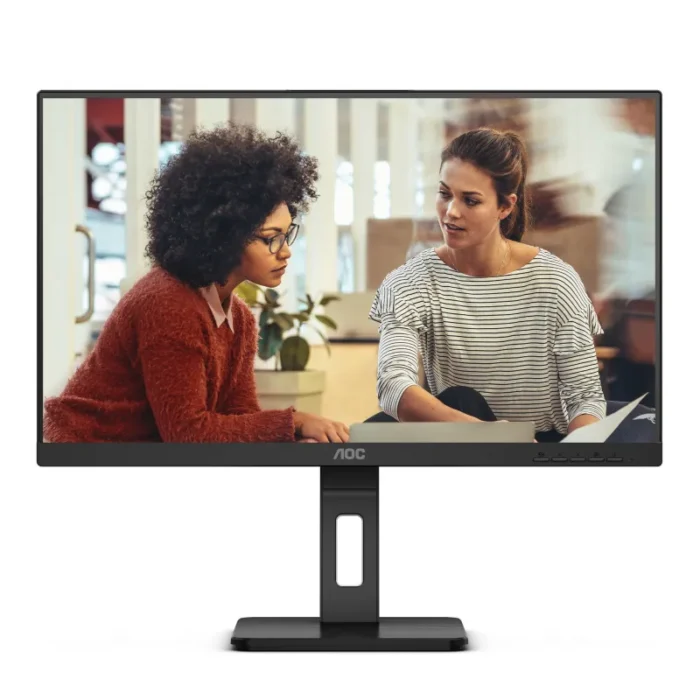

AOC E3 24E3QAF LED display 60.5 cm (23.8″) 1920 x 1080 pixels Full HD LCD Black
- 60.5 cm (23.8″) LCD IPS
- Full HD 1920 x 1080 pixels 16:9
- 75 Hz 4 ms 1000:1
- Flicker-free technology
- E 18 kWh 18 W
24″ FHD IPS monitor with essential features to get the most out of long working hours. Technologies including Adaptive Sync, Flicker-Free, Low Blue Light & full ergonomic features will support you while working and studying.
The AOC 24E3QAF offers all essentials for working or studying. This model mixes a great 24” IPS panel with wide viewing angle and FHD resolution, features for eye care such as Low Blue Mode and Flicker Free and built-in speakers to easily enjoy quality audio. For a neat workstation, this model also offers cable management. To ensure maximum comfort while working, 24E3QAF is fully ergonomic. Your productivity will be complemented with Adaptive Sync and 75Hz refresh rate to guarantee smooth and tear-free displaying performance, whether working with documents or watching content.
| Display |
| Surface hardness |
3H |
| DDC/CI |
Yes |
| High Dynamic Range (HDR) supported |
Yes |
| Display diagonal (metric) |
60.47 cm |
| Digital vertical frequency |
48 – 75 Hz |
| Digital horizontal frequency |
30 – 85 kHz |
| Viewable size, vertical |
29.6 cm |
| Viewable size, horizontal |
52.7 cm |
| Vertical scan range |
48 – 75 Hz |
| Horizontal scan range |
30 – 85 kHz |
| Pixel density |
93 ppi |
| Pixel pitch |
0.2745 x 0.2745 mm |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
75 Hz |
| Contrast ratio (dynamic) |
20000000:1 |
| Contrast ratio (typical) |
1000:1 |
| Screen shape |
Flat |
| Anti-glare screen |
Yes |
| Response time |
4 ms |
| Backlight type |
W-LED |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display technology |
LCD |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8″) |
| Performance |
| Game mode |
Yes |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| VESA Adaptive Sync support |
Yes |
| Fast charging |
No |
| Multimedia |
| Built-in microphone |
No |
| Built-in camera |
No |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Feet colour |
Black |
| Detachable stand |
Yes |
| Front bezel colour |
Black |
| Frameless design |
Yes |
| Product colour |
Black |
| Market positioning |
Office |
| Ports & interfaces |
| Mobile High-Definition Link (MHL) |
No |
| AC (power) in |
Yes |
| HDCP version |
1.4 |
| HDCP |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Headphone out |
Yes |
| Audio input |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| Built-in USB hub |
No |
| Ergonomics |
| LED indicators |
Yes |
| Plug and Play |
Yes |
| Number of OSD languages |
16 |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
-5 – 35° |
| Tilt adjustment |
Yes |
| Swivel angle range |
0 – 180° |
| Swivelling |
Yes |
| Pivot angle |
-90 – 90° |
| Pivot |
Yes |
| Adjustable height (max) |
15 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Cable management |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| Energy efficiency scale |
A to G |
| Power supply type |
Internal |
| Input current |
1.5 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (max) |
35 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
18 W |
| Energy consumption (HDR) per 1000 hours |
18 kWh |
| Energy consumption (SDR) per 1000 hours |
18 kWh |
| Energy efficiency class (HDR) |
E |
| Energy efficiency class (SDR) |
E |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 5000 m |
| Storage relative humidity (H-H) |
5 – 93% |
| Operating relative humidity (H-H) |
10 – 85% |
| Storage temperature (T-T) |
-25 – 55 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight (without stand) |
2.63 kg |
| Height (without stand) |
362.3 mm |
| Depth (without stand) |
50.7 mm |
| Width (without stand) |
540 mm |
| Weight (with stand) |
4.45 kg |
| Height (with stand) |
503.6 mm |
| Depth (with stand) |
200.1 mm |
| Width (with stand) |
540 mm |
| Packaging data |
| Package weight |
7.14 kg |
| Package height |
519 mm |
| Package depth |
162 mm |
| Package width |
613 mm |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI |
| Stand included |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
EPEAT Silver, TCO |
| General |
| Product family |
E3 |
| Other features |
| Certification |
ISO 9241-307 |
| Light effects |
No |
| Warranty period |
3 year(s) |
| Recyclable packaging material |
100% |
| Compliance certificates |
CB, CE, EAC, Federal Communications Commission (FCC), RoHS, cTUVus, WEEE |
| Exterior finish type |
Textured |
| Compatibility |
VESA-P2 |
| Shadow control |
Yes |
| Dial point |
Yes |
| FPS counter |
Yes |
| Recycling data |
| Post-consumer recycled plastic |
85% |
