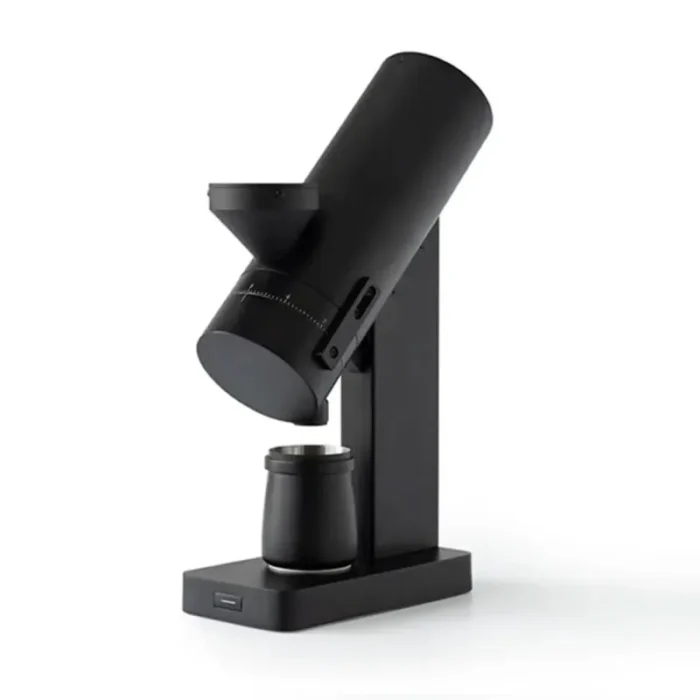

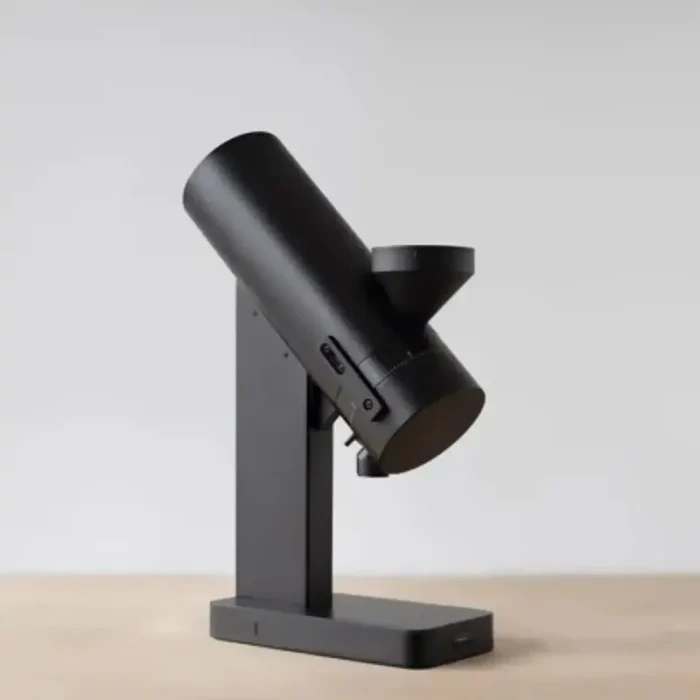

Acaia Orbit SSP Multi-Purpose Coffee Grinder
Sleek Design and Color Options
The minimal design of the Acaia Orbit is now available in Space Grey, Black, and Beige White. The grinder maintains its unique functionality while offering a sleek, modern aesthetic. Acaia has tailored this first-ever coffee grinder for single-dosing with automatic cleaning, making it ideal for those who prioritise ease and precision in their brewing process.
Advanced Features and Integration
The Orbit features several advanced elements that minimise retention, including its seamless integration with the Acaia Lunar for a grind-by-weight experience. Built with Acaia’s proprietary technology, it offers advanced RPM control and improved energy efficiency. These functions can be accessed and customised through the dedicated grinder companion app, ensuring optimal performance for every coffee grind.
Acaia Orbit Manual
Acaia Orbit Quick Start Guide
Included with Acaia Orbit:
- Free! Delivery (Worth £60)
- Free! 2 Years Parts Labour and Warranty.
- Included Accessories: Acaia Orbit Coffee Grinder x 1 / Power Cable x 1 / 58 mm Portafilter Dosing Cup (M) with Magnetic Pad x 1 / Lunar Magnetic Strips Application Tool x 1 / Accessory Tool Kit x 1
Features
Multi-Purpose Hopper
The new Multi-Purpose Hopper functions as both a single-dose hopper and an adapter for larger batch dosing hoppers. Our bean hopper line is available up to a 2 kg capacity.
Stepless Adjustment Dial
A streamlined design allows for precise, effortless grind control from espresso to filter. Orbit White and Black feature a wide adjustment dial, while Orbit Space Gray includes a dial and detent ring to help mark the positions of different grind sizes.
Grind-By-Weight Precision Grinding
The integration of the Orbit with the Lunar scale guarantees precise dosing for each grind, offering both single and batch modes with an automated start-stop function. This allows for optimization of coffee preparation, promoting consistency and efficiency.

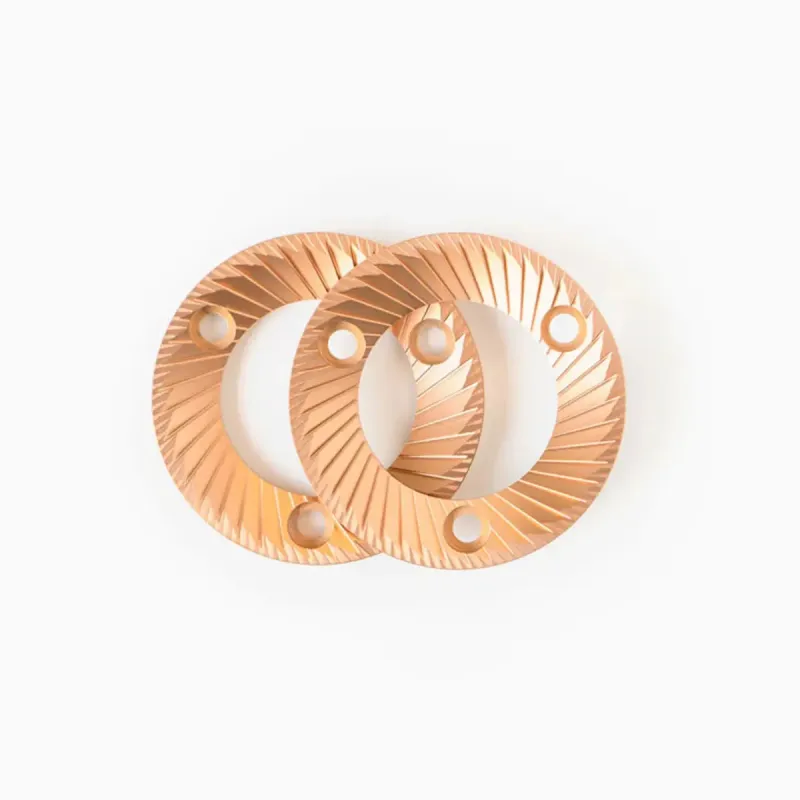

64 MM Burrs
Discover the perfect burr option to elevate your coffee experience. To accompany its precision engineering, the Orbit grinder includes a selection of burrs to cater to both traditional profiles and contemporary flavors.
Energy Efficient
Developed using our in-house technology, the Acaia Orbit is designed with environmental consciousness in mind. It is engineered to minimize energy consumption while still delivering exceptional industrial-grade performance and advanced grinding capabilities.
Burr Alignment
After assembly, experts test grinders for performance, precision, and consistency. Cutting-edge imaging evaluates grind uniformity. Burr lock and touch points are meticulously measured for acceptability (< 1.5 marks for Mazzer 33M and < 1 mark for SSP Multi-Purpose).
Orbit Tolerances
All Orbit parts are individually measured during the quality control process. This is to ensure they meet our precise standards and allow for the best burr alignment. For example, our grinders must meet or exceed the following:
- Burr mounting surfaces – 10 microns in flatness
- Motor drive shafts – 20 microns in concentricity
- Other critical parts – 20 micron tolerances
Care and Cleaning: Do not immerse the Orbit or its parts in water. Use a soft cloth with warm water only to clean the product. Do not use detergent or other chemicals for cleaning as it can damage the product.
Specifications of Acaia Orbit
- Model: AOT007 / AOT008 / AOT009 / AOT010, AOT011 / AOT012 / AOT013, AOT014 / AOT015
- Product Weight: 6130 g ± 10 g
- Product Dimensions: W: 108 mm, L: 266 mm, H: 394 mm
- Bean Hopper Capacity: up to 2 kg
- Rated Voltage: 100 V-240 V
- Frequency: 50/60 Hz
- Motor: 200 W Brushless DC Motor
- Material: Aluminum, PC, Stainless Steel
- Warnings: CA Prop 65 Warning
- Operating Ambient Temperature: 0 – 40 °C
- RPM Profile: 600-1500 Adjustable RPM Profile
- Duty Cycle: Recommended duty cycle for Orbit is 60 s running time with a rest time of 30 s
- Connectivity: Bluetooth 5.0
Why Choose Acaia Orbit Grinder?
Personalize your Orbit
Enhance your coffee-grinding experience with the Orbit companion app. We designed the Orbit app to personalize your workflow. Adjust the grinding speed from 600 to 1500 RPM, personalize button actions, and save unique profiles for grinding by weight or time. The newly introduced “Reverse-and-Adjust” feature allows an effortless transition between coarse and fine grinds. It is ideal for baristas who oscillate between filter coffee and espresso daily.
RPM Stability Control Technology
RPM Stability Control Technology is a proprietary feature developed for the Orbit grinder, designed to ensure exceptional consistency and precision. It maintains a steady RPM throughout the grinding process, addressing a common issue faced by traditional grinders.
In conventional grinders, RPM tends to rise as the volume of beans decreases, leading to noise, heat buildup, and inconsistent grind quality. These fluctuations compromise particle uniformity and affect the final coffee quality.
RPM Stability Control Technology solves this by keeping the motor speed consistent, regardless of the bean load. This results in quieter operation, less heat, and uniform particle size, enhancing flavor extraction for a precise, balanced cup of coffee every time.
